2

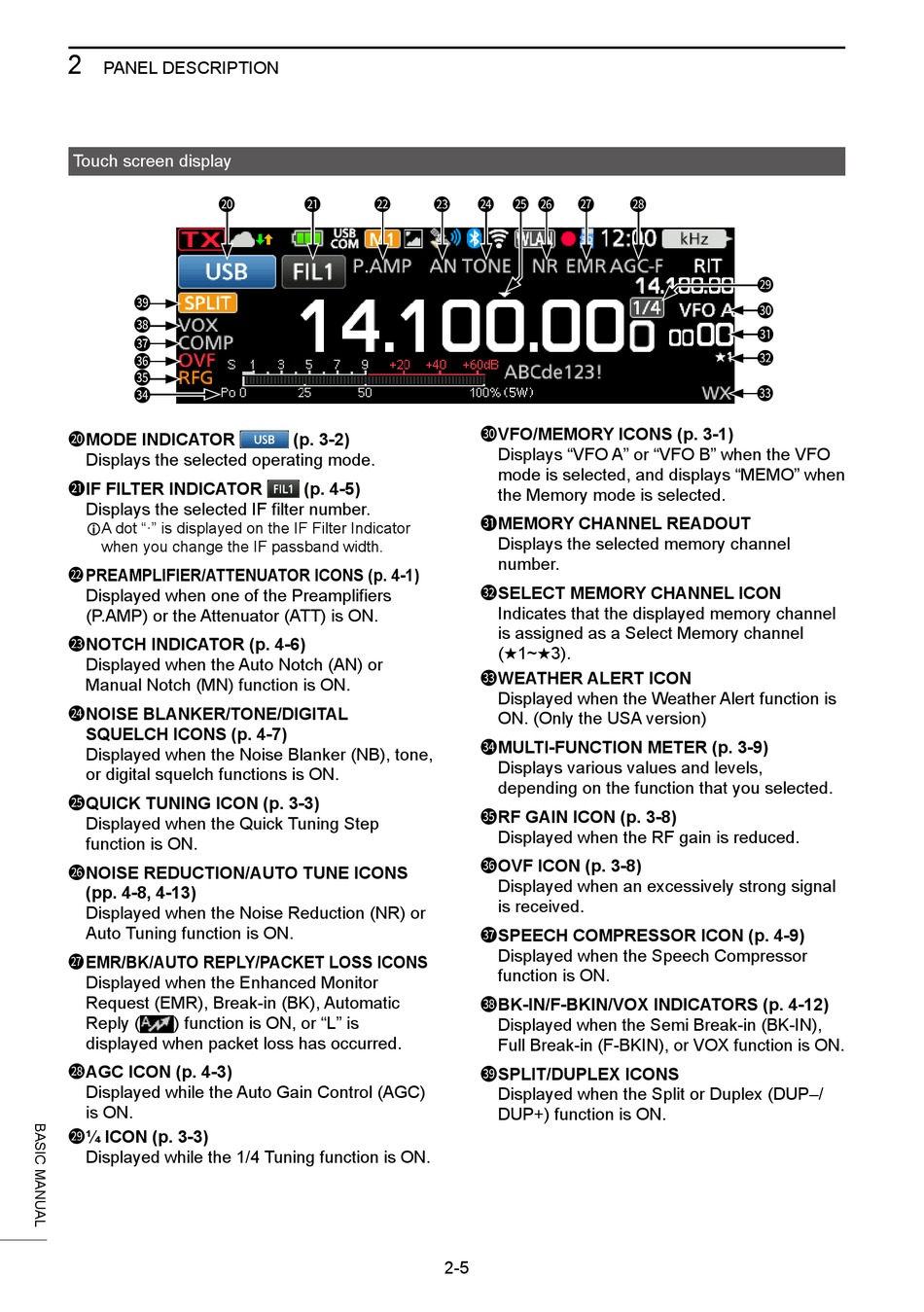

PANEL DESCRIPTION
Touch screen display
20
39
38
37
36
35
34
20 M ODE INDICATOR
Displays the selected operating mode.
21 I F FILTER INDICATOR
Displays the selected IF filter number.
LA dot "·" is displayed on the IF Filter Indicator
when you change the IF passband width.
22 PREAMPLIFIER/ATTENUATOR ICONS (p. 4-1)
Displayed when one of the Preamplifiers
(P.AMP) or the Attenuator (ATT) is ON.
23 N OTCH INDICATOR (p. 4-6)
Displayed when the Auto Notch (AN) or
Manual Notch (MN) function is ON.
24 N OISE BLANKER/TONE/DIGITAL
SQUELCH ICONS (p. 4-7)
Displayed when the Noise Blanker (NB), tone,
or digital squelch functions is ON.
25 Q UICK TUNING ICON (p. 3-3)
Displayed when the Quick Tuning Step
function is ON.
26 N OISE REDUCTION/AUTO TUNE ICONS
(pp. 4-8, 4-13)
Displayed when the Noise Reduction (NR) or
Auto Tuning function is ON.
27 E MR/BK/AUTO REPLY/PACKET LOSS ICONS
Displayed when the Enhanced Monitor
Request (EMR), Break-in (BK), Automatic
Reply (
) function is ON, or "L" is
displayed when packet loss has occurred.
28 A GC ICON (p. 4-3)
Displayed while the Auto Gain Control (AGC)
is ON.
29 1 /4 ICON (p. 3-3)
Displayed while the 1/4 Tuning function is ON.
21
22
23 24
(p. 3-2)
(p. 4-5)
2-5
25
26 27
28
30 V FO/MEMORY ICONS (p. 3-1)
Displays "VFO A" or "VFO B" when the VFO
mode is selected, and displays "MEMO" when
the Memory mode is selected.
31 M EMORY CHANNEL READOUT
Displays the selected memory channel
number.
32 S ELECT MEMORY CHANNEL ICON
Indicates that the displayed memory channel
is assigned as a Select Memory channel
(★1~★3).
33 W EATHER ALERT ICON
Displayed when the Weather Alert function is
ON. (Only the USA version)
34 M ULTI-FUNCTION METER (p. 3-9)
Displays various values and levels,
depending on the function that you selected.
35 R F GAIN ICON (p. 3-8)
Displayed when the RF gain is reduced.
36 O VF ICON (p. 3-8)
Displayed when an excessively strong signal
is received.
37 S PEECH COMPRESSOR ICON (p. 4-9)
Displayed when the Speech Compressor
function is ON.
38 B K-IN/F-BKIN/VOX INDICATORS (p. 4-12)
Displayed when the Semi Break-in (BK-IN),
Full Break-in (F-BKIN), or VOX function is ON.
39 S PLIT/DUPLEX ICONS
Displayed when the Split or Duplex (DUP–/
DUP+) function is ON.
29
30
31
32
33
