■Wiring

Select the appropriate cables to mate with the connectors mounted on the SI unit.

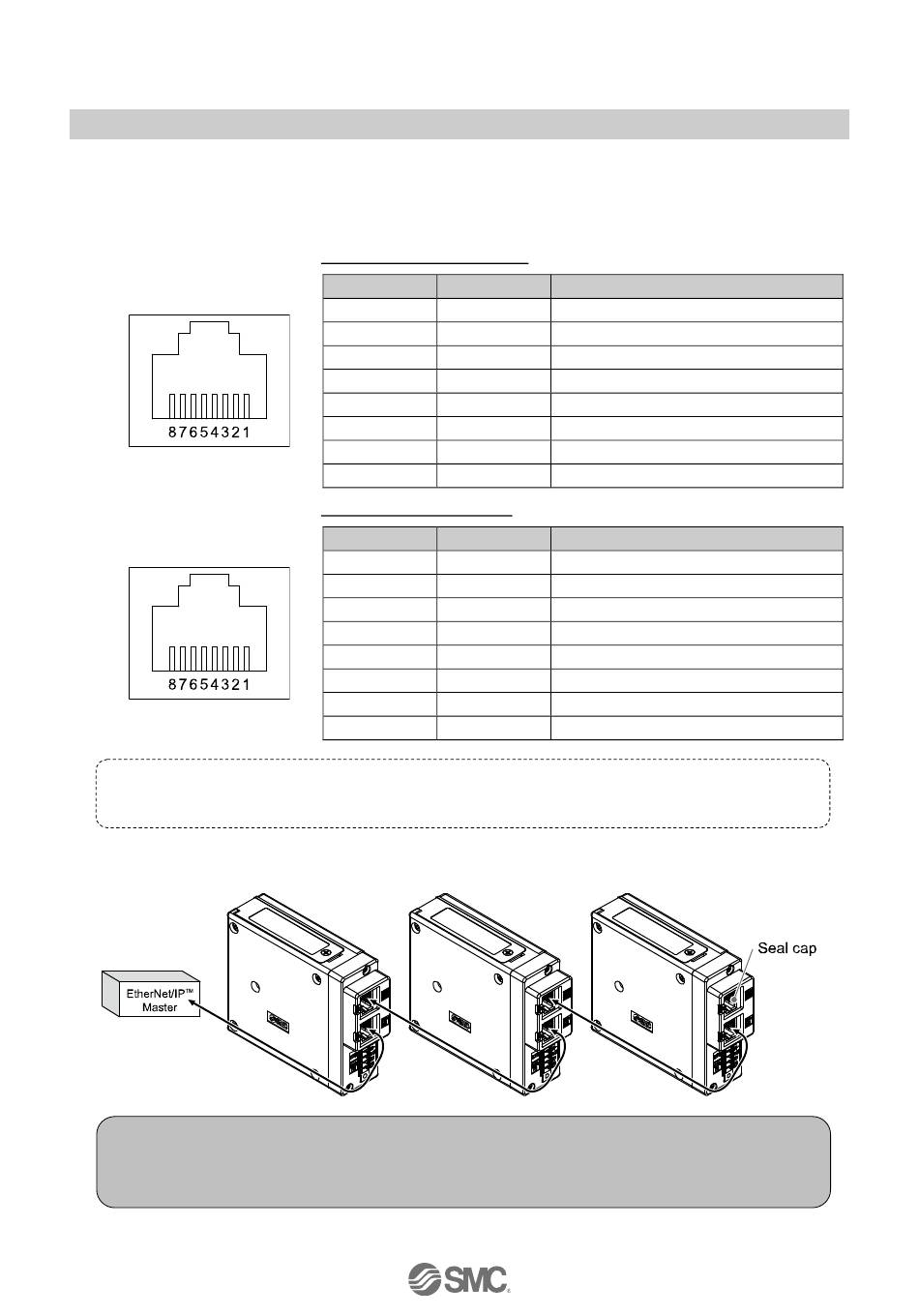

○Fieldbus interface connector layout
•Use only plugs conforming to FCC standards.
•Shielded Ethernet cable is recommended.
Connect the "BUS IN" connector to the upstream device (PLC etc.) and connect the "BUS OUT" connector
to the downstream device.
NOTE
•Be sure to fit a seal cap on any unused connectors.
The seal cap prevents foreign matter from entering into the product.
BUS OUT: RJ45 8-pin socket
No. Designation
1 Tx+
2 Tx-
3 Rx+
4 -
5 -
6 Rx-
7 -
8 -
BUS IN: RJ45 8-pin socket
No. Designation
1 Tx+
2 Tx-
3 Rx+
4 -
5 -
6 Rx-
7 -
8 -
-12-
Description
Transmit Data +
Transmit Data -
Receive Data +
-
-
Receive Data -
-
-
Description
Transmit Data +
Transmit Data -
Receive Data +
-
-
Receive Data -
-
-
No.EX※※-OMX1001
