•Web server contents

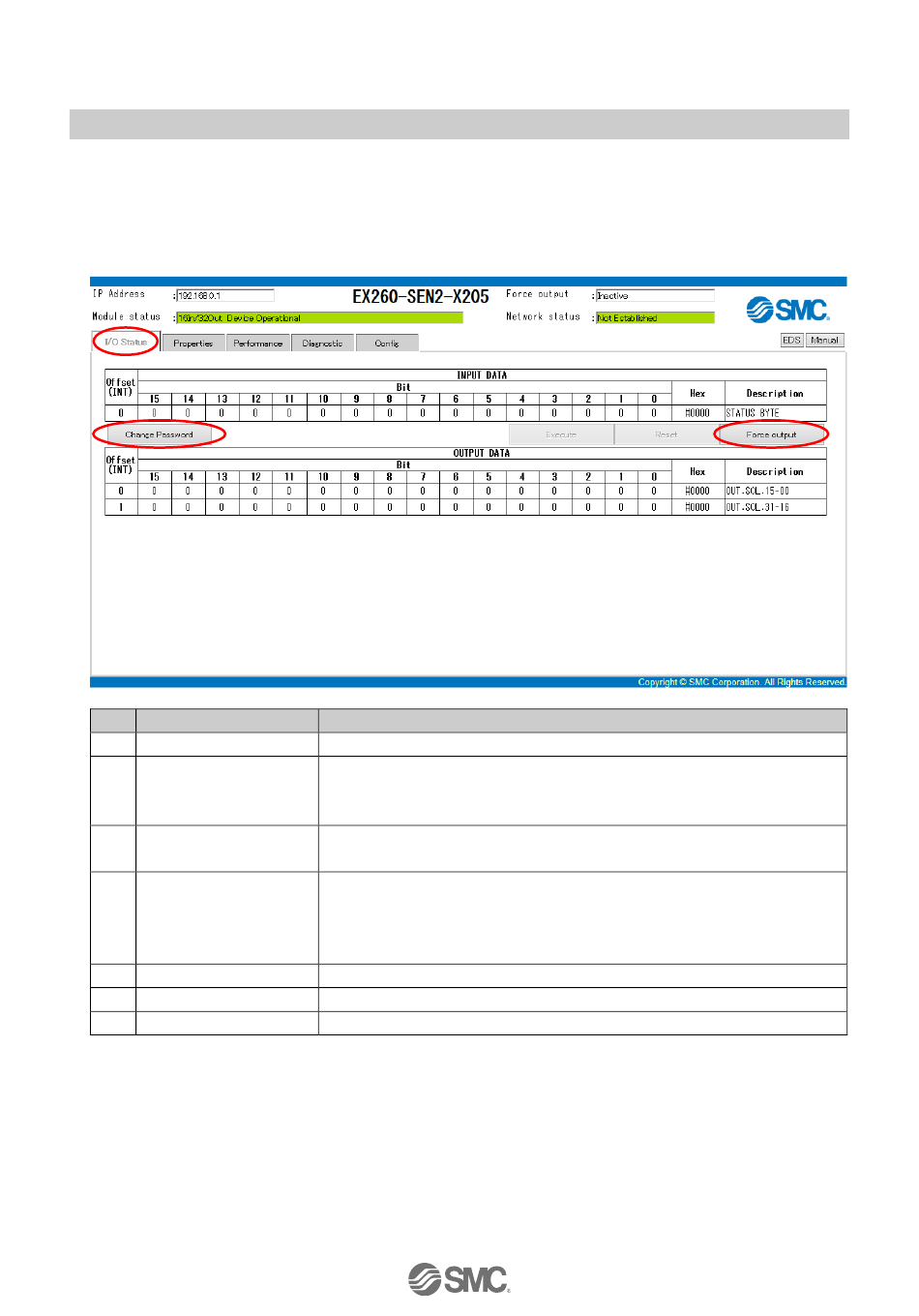

Web browser screen when the Web server is connected is shown below.
<I/O Status tab>
Current SI unit I/O memory map is displayed.
Refer to page 30 for I/O memory map details.
①
③
⑤
⑦
No. Item
1 IP Address
2 Force output
3 Module status
4 Network status
5 Menu tab
6 Force output
7 Change password
②
④
IP address of SI unit connected to Web server
Force output mode enable/disable.
Active: Force output mode enabled
Inactive: Force output mode disabled
SI unit operating condition.
16 In/32 Out Device Operational: Normal operation
Displays the communication status of the SI unit EtherNet/IP
TM
Established: EtherNet/IP
Not established: EtherNet/IP
TM
Timeout: EtherNet/IP communications time out
Menu is changed by selecting the tab.
Select for force output mode.
Select for changing the password to enable changing to force output mode.
-32-
Meaning
communication is established
TM
communication is not established
⑥
TM
.
No.EX※※-OMX1001
