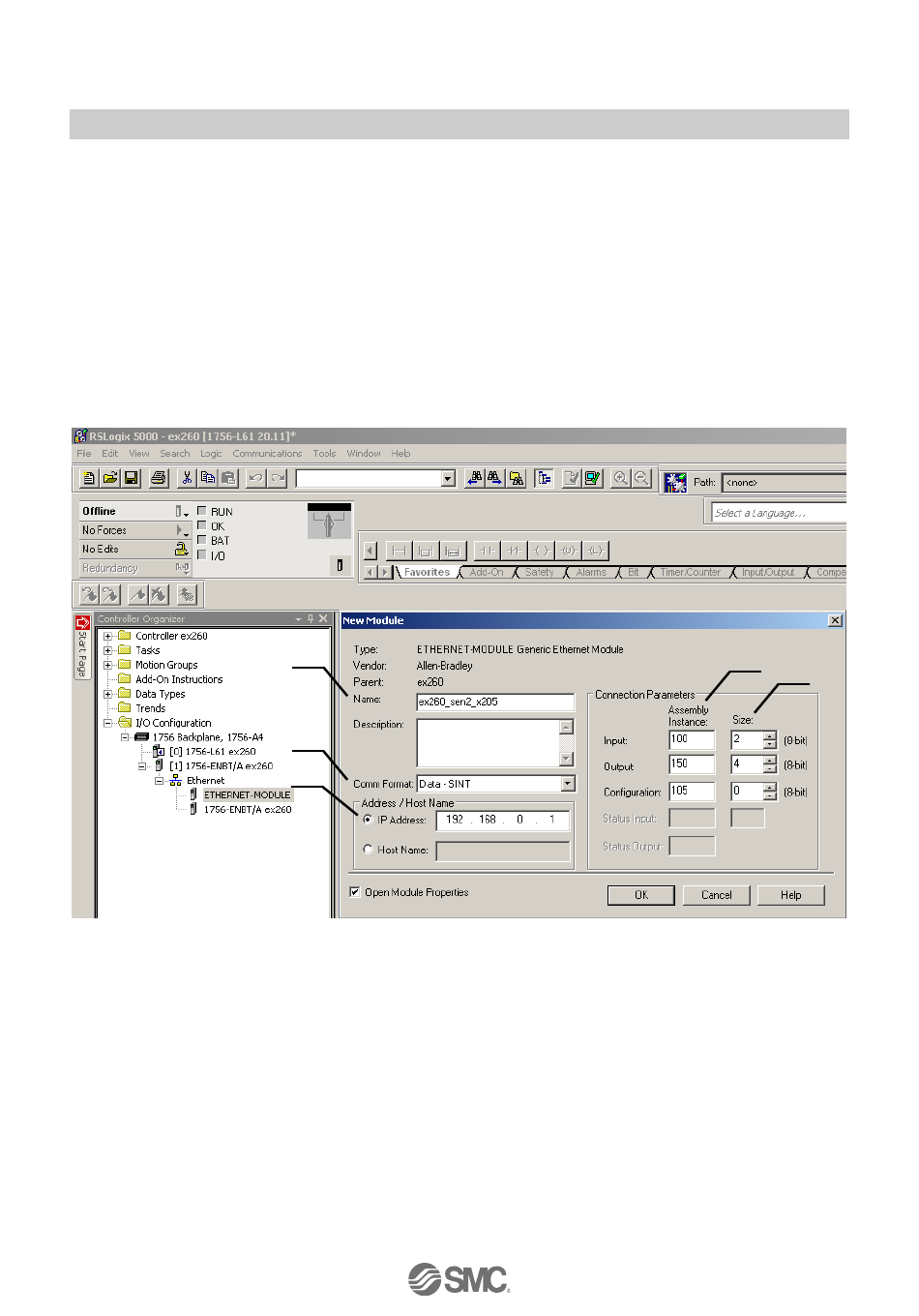

•The Module Properties screen will be displayed. Perform the various settings.
(1) Name: Input a unit name of your choice.
(2) Comm Format: Select the data format of the Connection Parameters.
(3) IP Address: Input the IP Address of the SI unit.
(4) Assembly Instance: Set as follows:
Input
Output
Configuration
(5) Size: Set as follows:
Input
Output
Configuration
= 100
= 150
= 105
= 2 bytes (for Data-SINT)
= 1 word (for Data-INT)
= 4 bytes (for Data-SINT)
= 2 words (for Data-INT)
= 0
(1)
(2)
(3)
-21-
(4)
(5)
