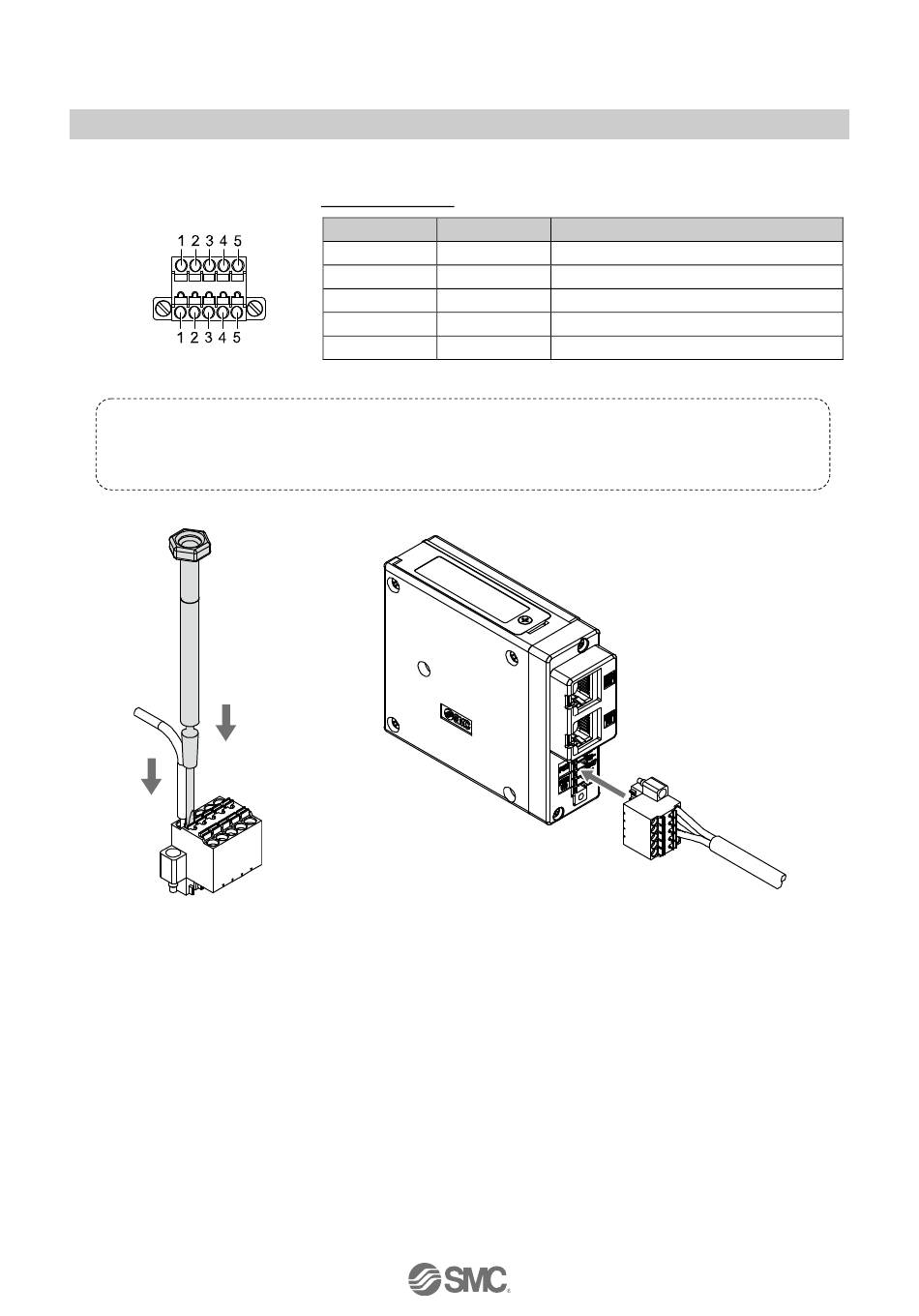

○Power supply connector layout
The power supply connector included as an accessory can be used to supply the power.
Applicable wire for the power supply connector is AWG24 to AWG16 (0.2 to 1.5 mm
Tighten the connector flange with a tightening torque of 0.2 to 0.3 Nm.
PWR: 5-pin socket
No. Designation
1 FG
2 0 V
3 24 V
4 SI-
5 SI+
-13-
Description
Function earth
0 V for solenoid valve
+24 V for solenoid valve
0 V for SI unit operation
+24 V for SI unit operation
