Attaching Cam Arms

1. Manually rotate reel until the tine bars with the
disconnected cam links are accessible.
2. Remove shipping wire (A) if not already removed.
NOTE:
Five hex hole locations (A) from the template were previously
marked onto the disc (refer to Step
cam arm attachment points.
3. Obtain reel linkage arms from the hardware bags labelled
D and F.
4. Install cam arm (A) with preinstalled stud (B) and
washer (C) into previously marked hole on disc. Secure with
a 1/2 in. smooth face lock nut (D) and torque to 75 Nm
(55 lbf·ft).
215184
ASSEMBLING THE HEADER AND FLOAT MODULE
3, page 71) to identify the
75

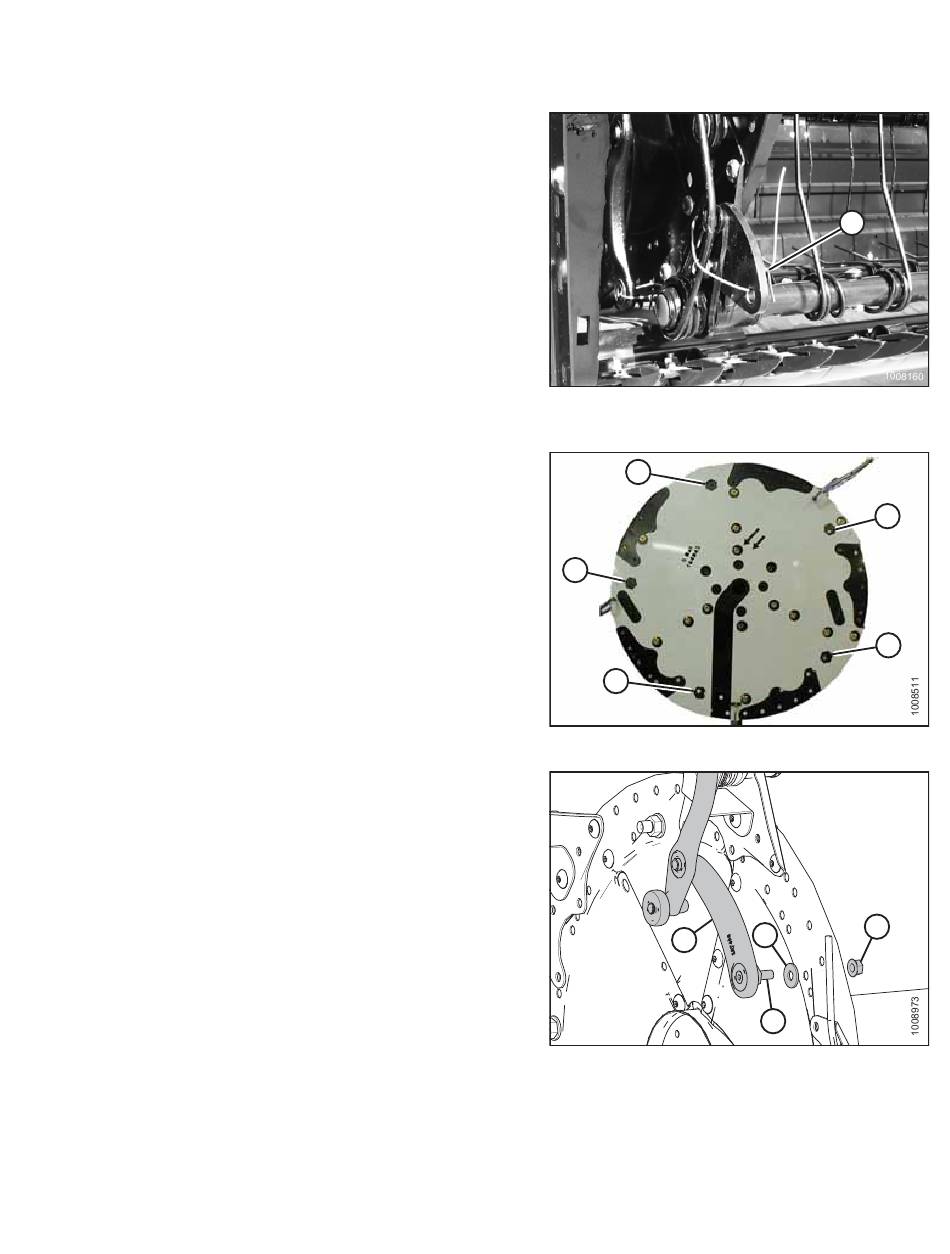

Figure 3.141: Disconnected Cam Links and
Shipping Wire
A
A
A
Figure 3.142: Cam Arm Attachment Points
A
Figure 3.143: Cam Arm and Disc
A
A
A
D
C
B
Revision A
