8.19 Checking Manuals

Check the manual case contents. The manual case is located inside the left endshield.

1. Open the left endshield. Remove the cable tie on manual

3. Confirm that the case contains the following manuals:

• D1 Series Draper Header for Combines Operator's Manual

• D1 Series Draper Header with FM100 Float Module Parts Catalog

4. Close case and endshield.

PERFORMING PREDELIVERY CHECKS

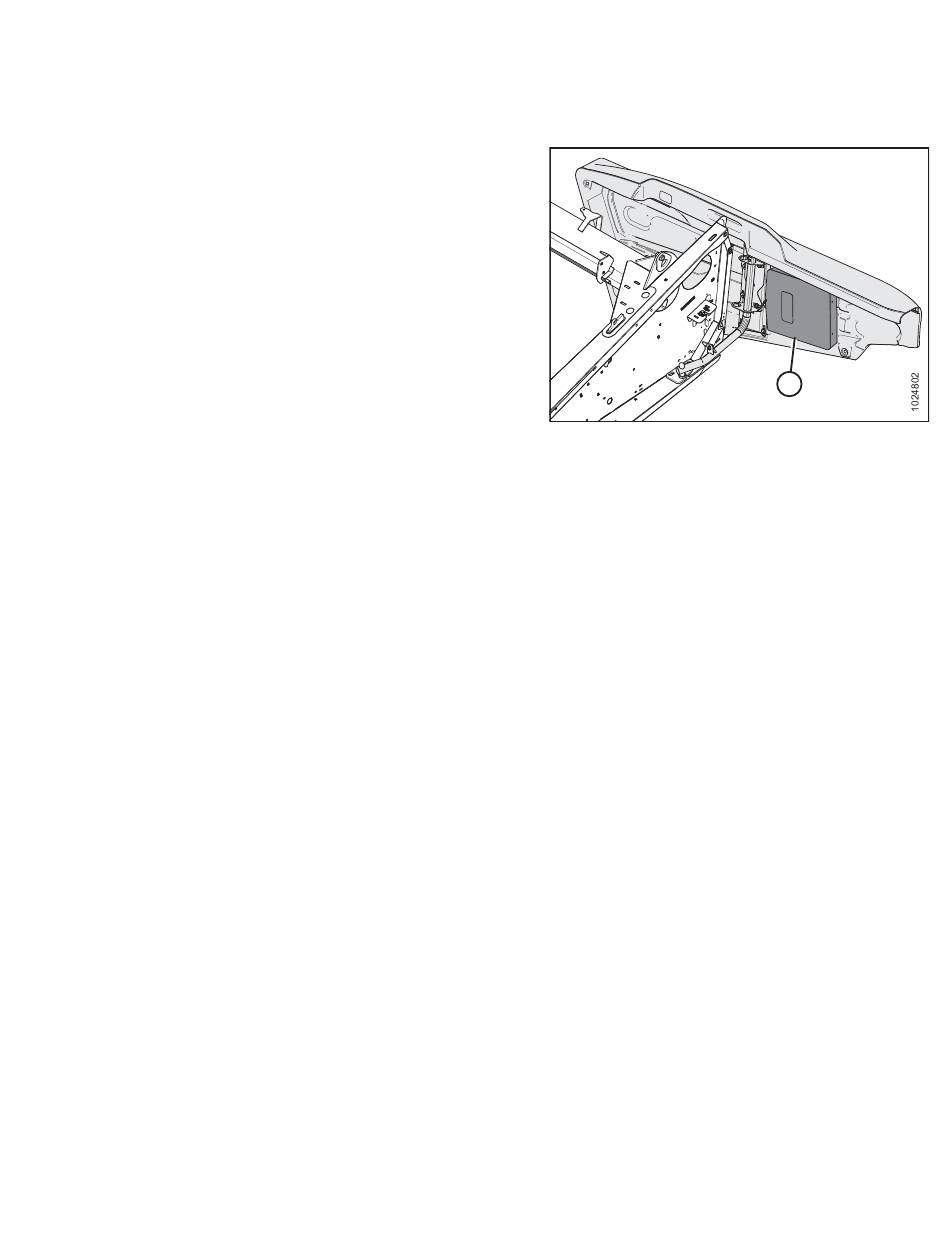

Figure 8.77: Manual Case
