Table of Contents

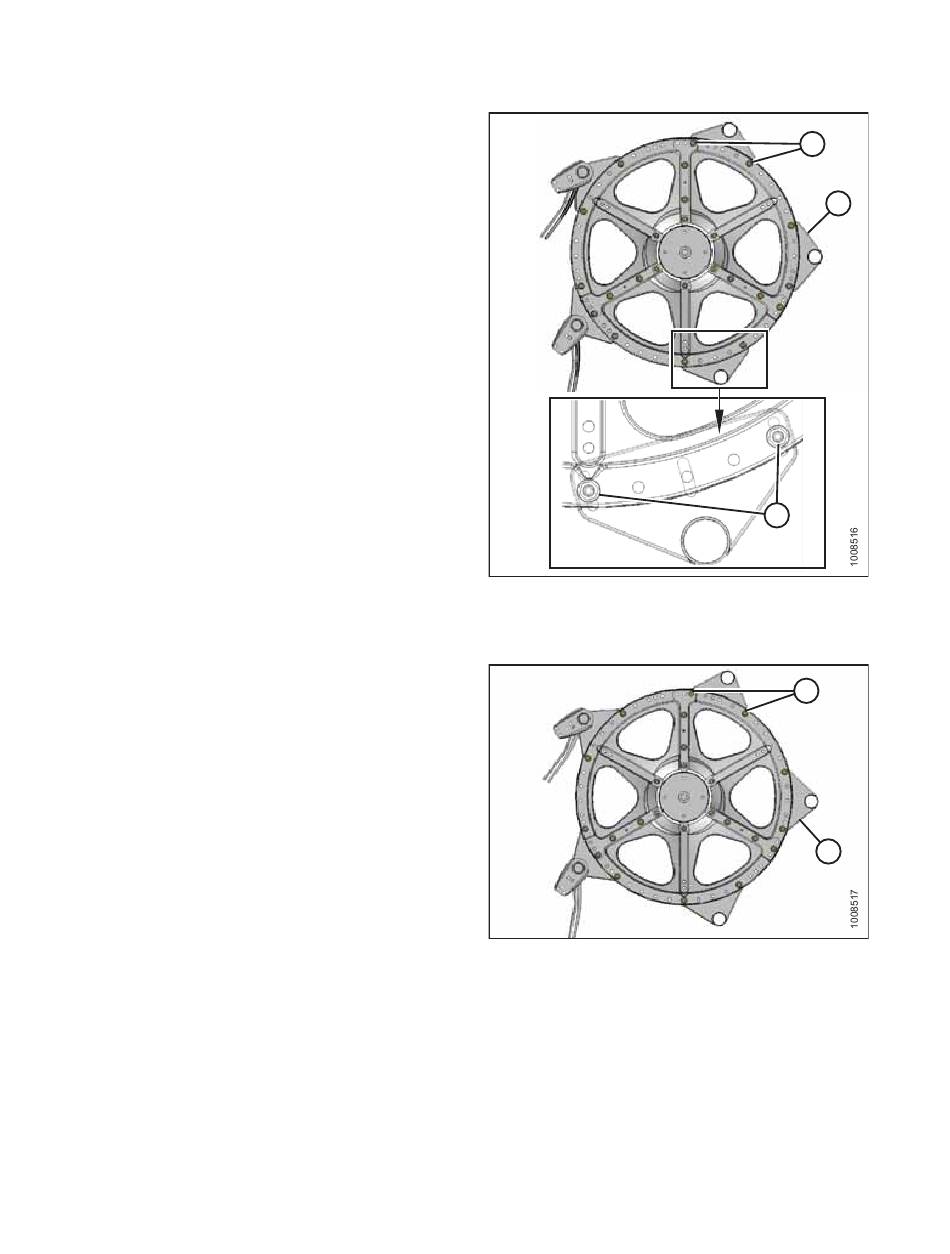

Center Disc – View from Cam End

7. Position tine tubes on discs using the template on the cam

track as a guide.

Position brackets (B) on far side.

b. Loosely install eleven 1/2 x 3/4 in. Torx

(found in the hardware bag labelled B) into the middle

Tail End Disc – View from Cam End

8. Position tine tubes on discs using the template on the cam

track as a guide.

Position brackets (B) on far side.

b. Loosely install eleven 1/2 x 3/4 in. Torx

(found in the hardware bag labelled B).

ASSEMBLING THE HEADER AND FLOAT MODULE

Figure 3.255: Center Disc – View from Cam End

Figure 3.256: Tail End Disc – View from Cam End
