2. Standard reel arms: Remove top bolts (A) on reel arm
support (B) and anti-rotation brace at left end of reel.
Short reel arms: Remove bolts (A) on reel arm support (B),
and anti-rotation brace at left end of reel.
NOTE:
Reel removed from the illustration to improve clarity.
215184
ASSEMBLING THE HEADER AND FLOAT MODULE
126

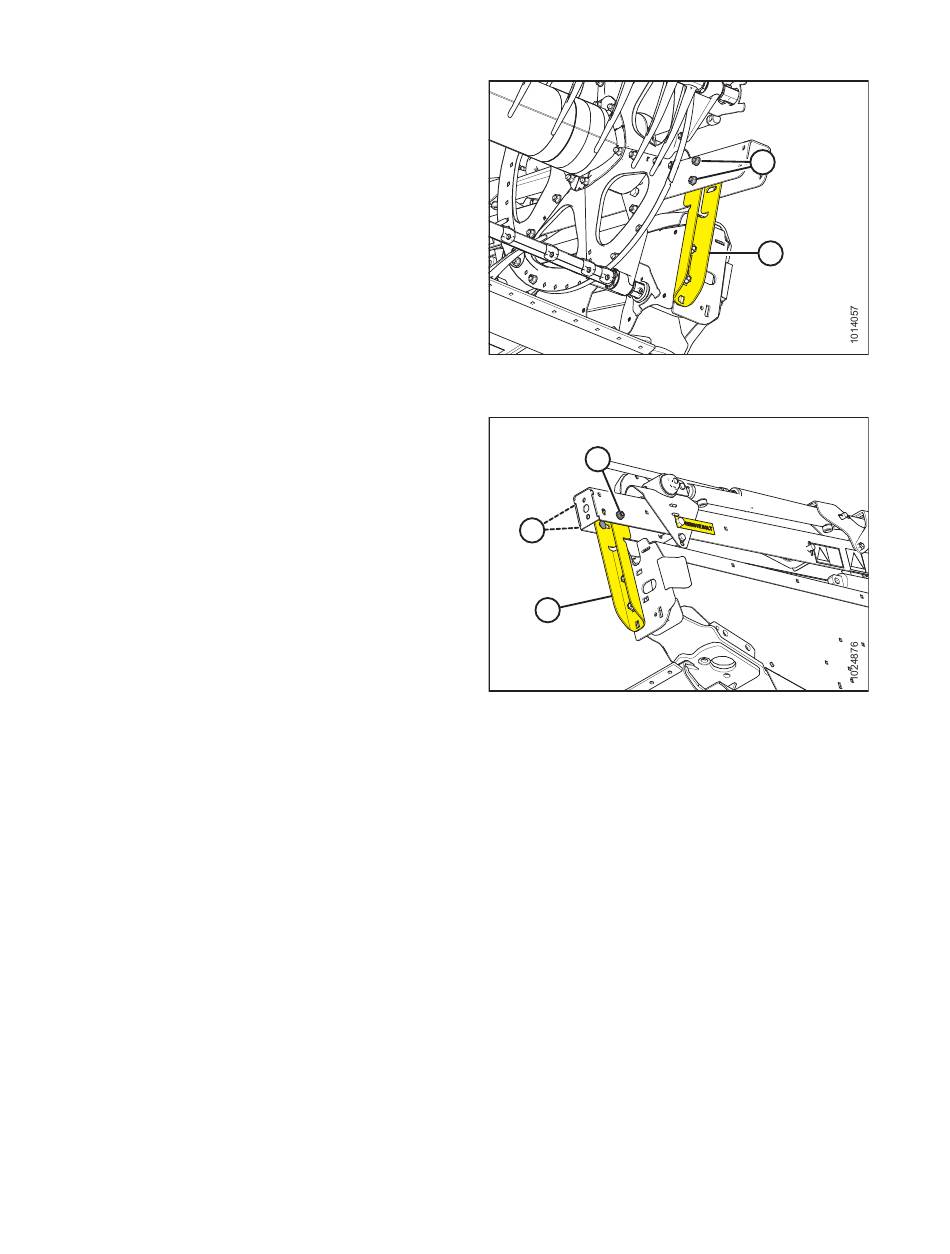

Figure 3.266: Outboard Reel Arm Supports – Standard
Reel Arms
A
A
B
Figure 3.267: Outboard Reel Arm Supports – Short
Reel Arms
A
B
Revision A
