Checking Voltage Range From The Combine Cab - John Deere S7 Series - MacDon D1 Series Unloading And Assembly Instructions

12. Read error message and then press OK.
13. Proceed to Checking Voltage Range from the Combine Cab
– John Deere S7 Series, page
Checking Voltage Range from the Combine Cab – John Deere S7 Series
The auto header height sensor output must be within a specific range, or the feature will not work properly.
Table 9.2 Voltage Range
Combine
John Deere S7 Series
NOTE:
Changes may have been made to the combine controls or display since this document was published. Refer to the combine
operator's manual for updates.
WARNING
Check to be sure all bystanders have cleared the area.
1. Position header 150 mm (6 in.) above ground, and unlock float.
215184
SETTING UP AUTO HEADER HEIGHT CONTROL
453.
Low Voltage Limit
0.5 V

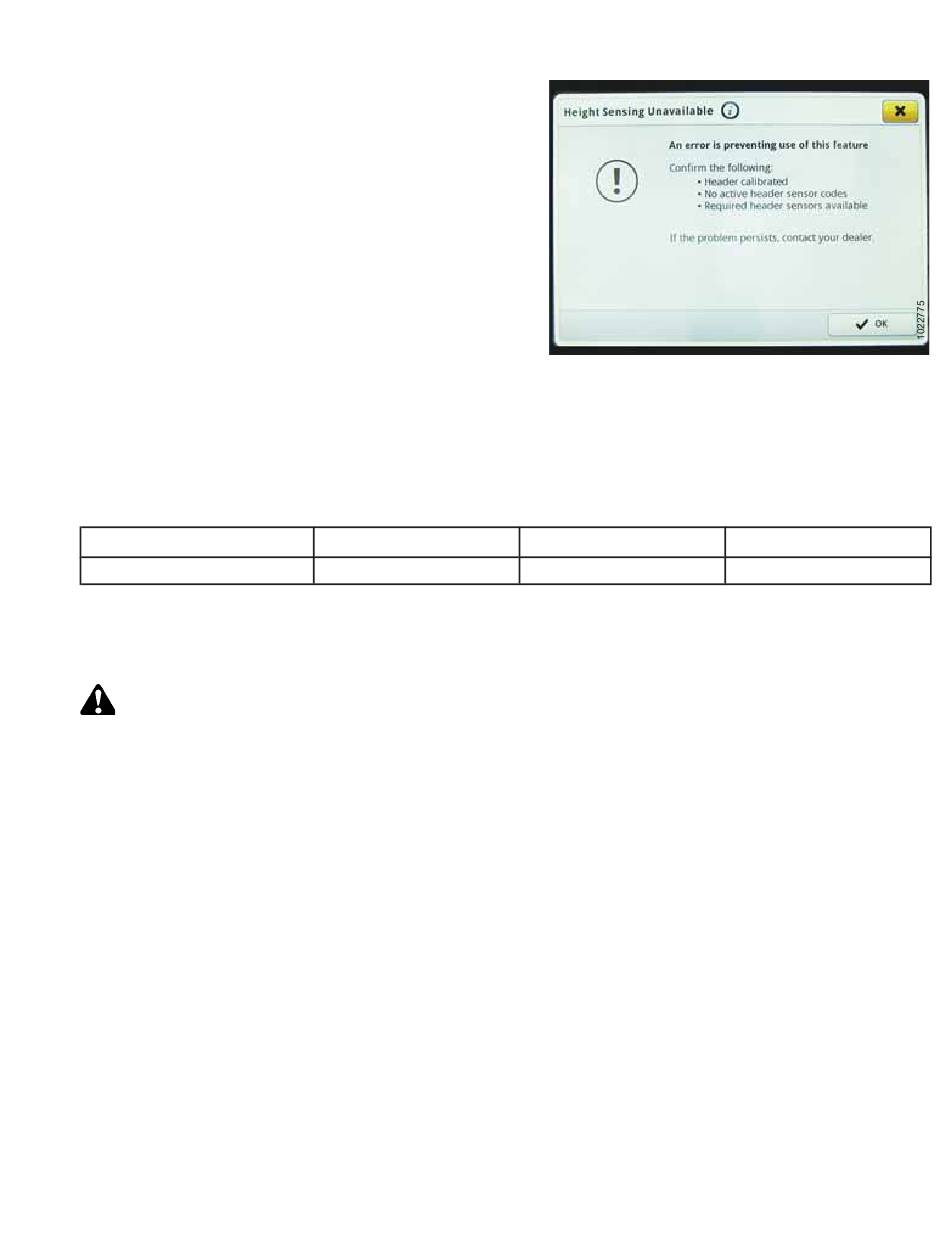

Figure 9.331: John Deere S7 Display – Height Sensing
Error Message
High Voltage Limit
4.5 V
453
Minimum Range
3.0 V
