Tightening Fasteners

Use the following sequence for tightening fasteners:
1. Tighten 10 bolts securing tine tubes to cam end disc and torque to 95–108 Nm (70–80 lbf·ft).
2. Tighten 11 bolts securing tine tubes to center disc and torque to 95–108 Nm (70–80 lbf·ft).
3. Tighten 11 bolts securing tine tubes to tail end disc and torque to 95–108 Nm (70–80 lbf·ft).
4. Tighten three center disc bolts (A) at the indented locations
on the reel tube flange to 95–108 Nm (70–80 lbf·ft).
5. Tighten three center disc bolts along seams to 95–108 Nm
(70–80 lbf·ft) in the order shown (1, 2, 3).
6. Tighten all remaining bolts.
7. Repeat Step 4, page 121
inboard disc.
215184
ASSEMBLING THE HEADER AND FLOAT MODULE
and Step 5, page 121 at
A

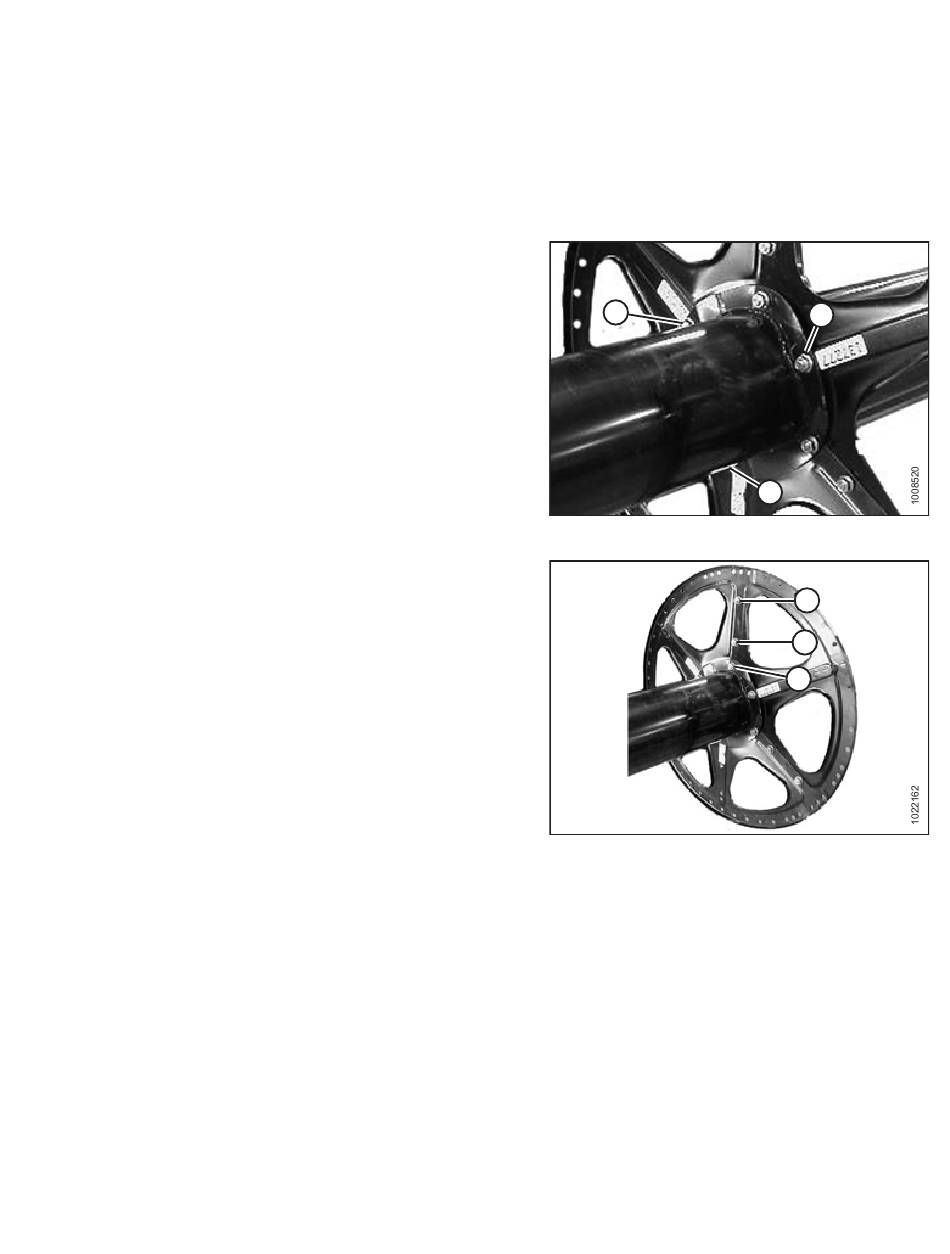

Figure 3.257: Three Bolts at Center Disc
Figure 3.258: Center Disc Hardware
121
A
A
1
2
3
