1. Adjust the drive rollers (X) by loosening nut (A) and jam

nut (B) on adjuster rod, then turning the adjusting nut (C)

(left drive roller shown—right opposite).

2. Adjust the idler rollers (Y) by loosening nut (D) and jam

nut (E) on adjuster rod, then turning adjusting nut (F) (left

idler roller shown—right opposite).

3. If the draper does not track at the idler roller end, the drive

roller is likely not square to the deck. Adjust drive roller,

then readjust idler.

RUNNING UP HEADER

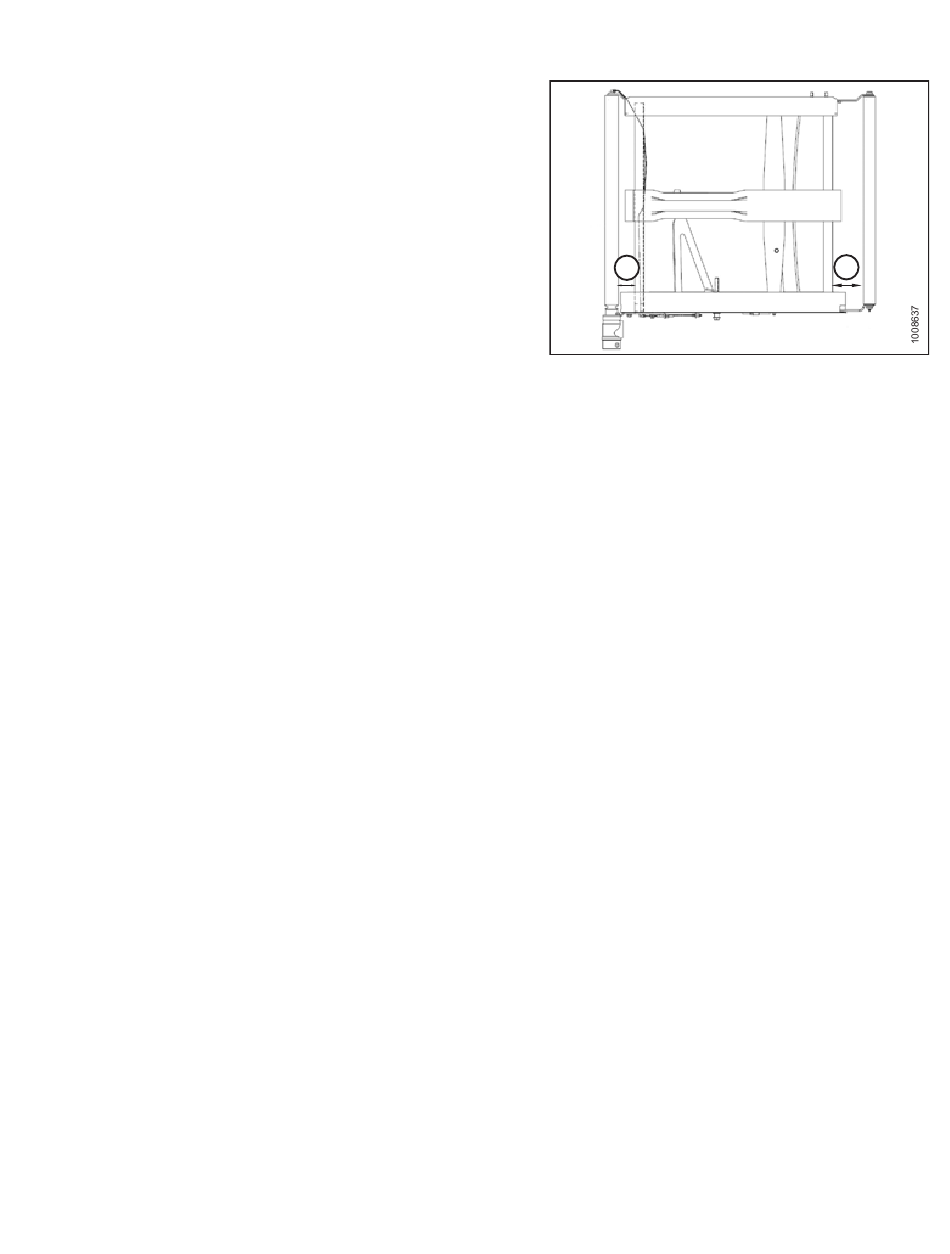

Figure 11.11: Adjustment Locations

X - Drive Roller

Y - Idler Roller
