12. Rotate reel manually to access endshield support
installation locations (A).
NOTE:
Reel endshields are not shown for clarity.
13. Position fully-assembled reel endshield onto reel disc, and
slip endshield supports onto tine tubes (A).
NOTE:
Not all tine tubes shown in illustration
215184
ASSEMBLING THE HEADER AND FLOAT MODULE
138
A

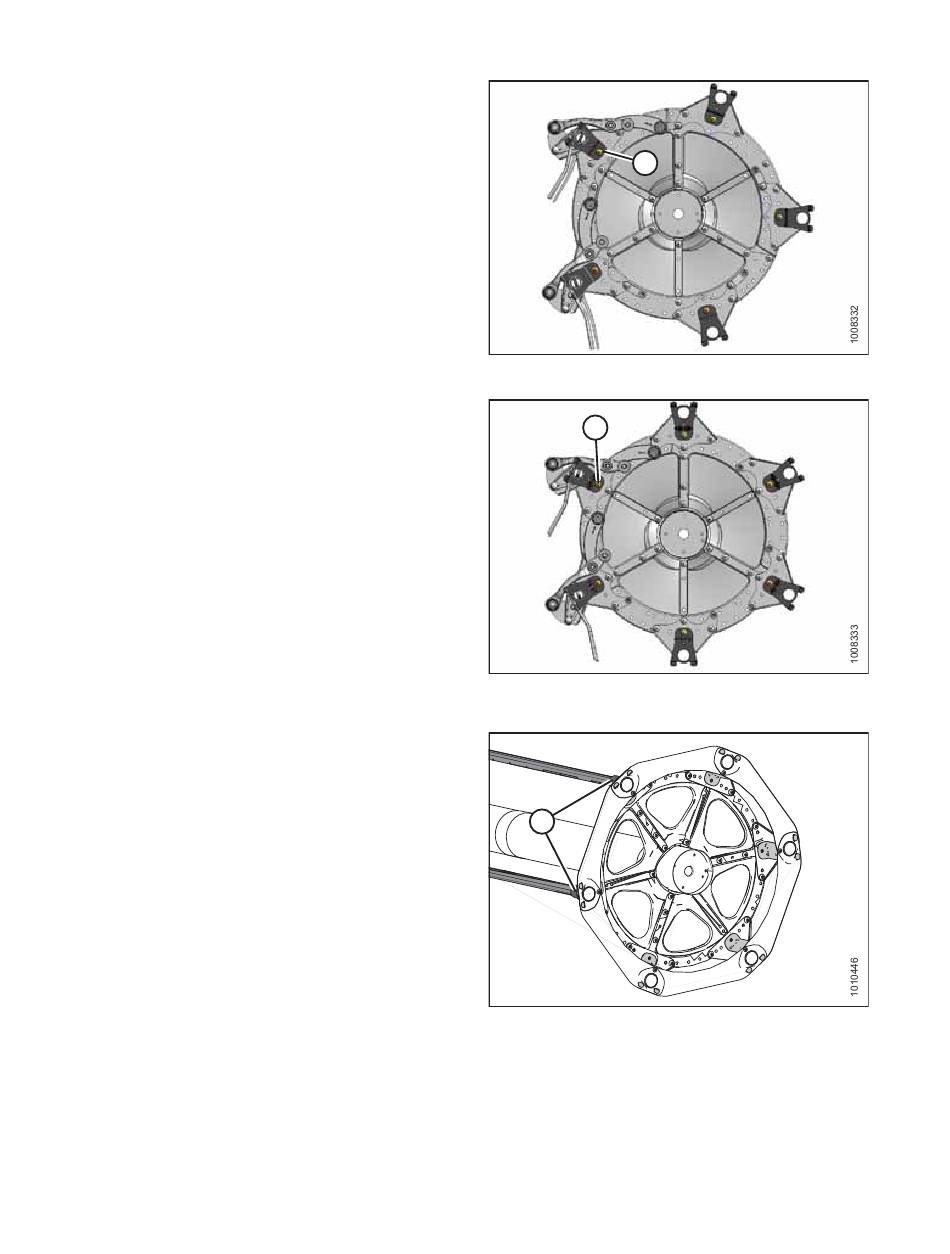

Figure 3.293: Supports at Cam Disc on Five-Bat Reel
A
Figure 3.294: Supports at Cam Disc on Six-Bat Reel
A
Figure 3.295: Endshield on Reel
