11. Remove socket head bolt and nut from cylinder rod end.
12. Attach the rod end of the cylinder to the reel arm with
socket head bolt and nut (A). Access hardware through
holes in reel arm braces.
13. Torque bolt and nut (A) to 54–61 Nm (40–45 lbf·ft).
14. Remove pin (B) at the barrel end of the cylinder.
15. Adjust reel height so pin can be installed at barrel end of
cylinder and mounting structure.
16. Make sure cylinder hose is properly routed.
IMPORTANT:
To avoid damaging hoses, ensure hoses are routed in front
of the reel prop pin.
Setting up Left Reel
1. If not already removed, remove reel anti-rotation strap (A).
2. Rotate reel manually until tine bars with disconnected cam
links are accessible.
3. Install bolt (C) in link, and position shim (D) on bolt so shim
is between link (B) and tine bar crank (A).
NOTE:
Bolts are pre-coated with Loctite
method is required.
4. Realign link (B) and tine bar crank (A), and thread in the
bolt (C).
5. Torque bolt to 165 Nm (120 lbf·ft).
215184
ASSEMBLING THE HEADER AND FLOAT MODULE
®
; no further locking
81

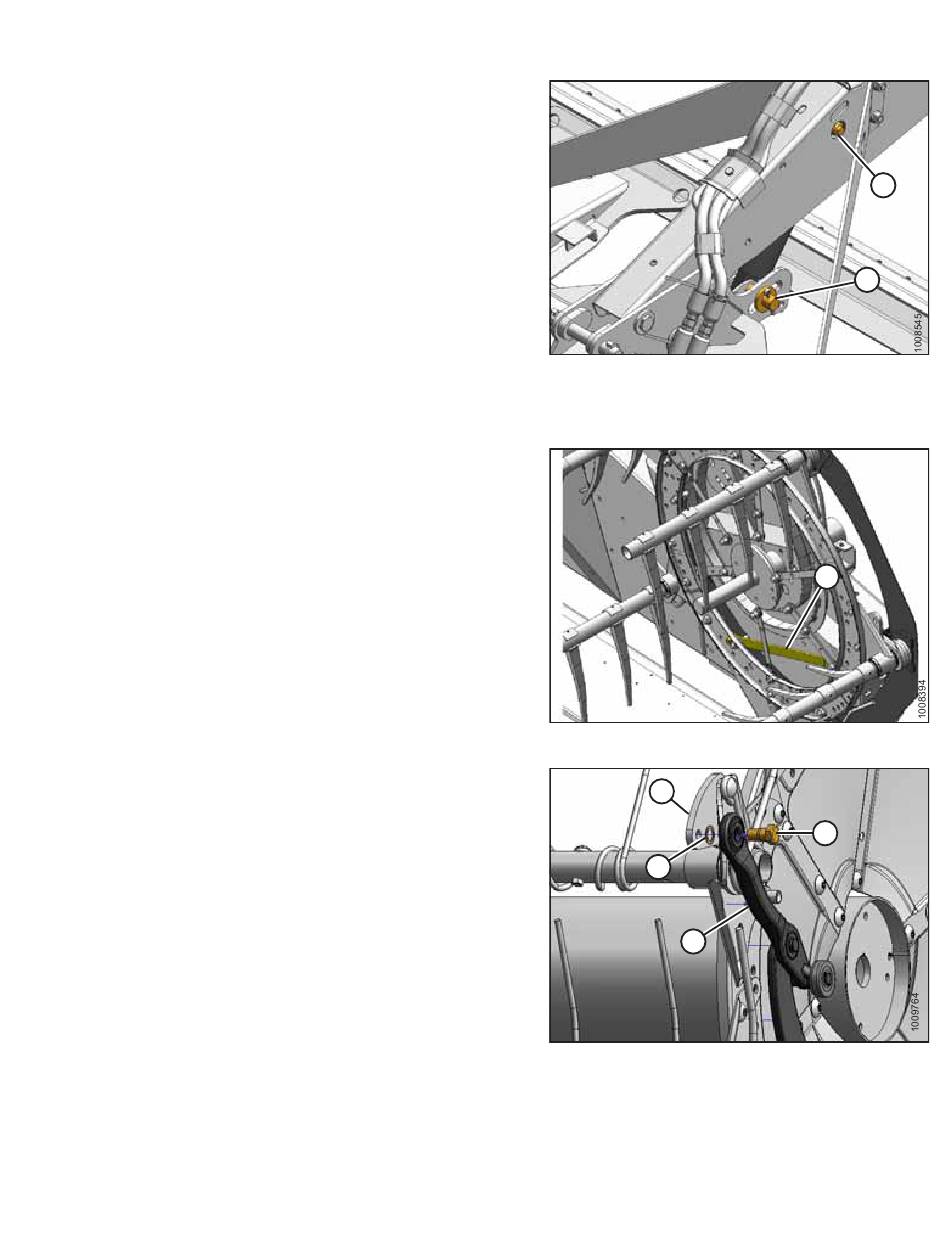

Figure 3.152: Cylinder
Figure 3.153: Reel Anti-Rotation Strap
A
D
B
Figure 3.154: Cam Link
A
B
A
C
