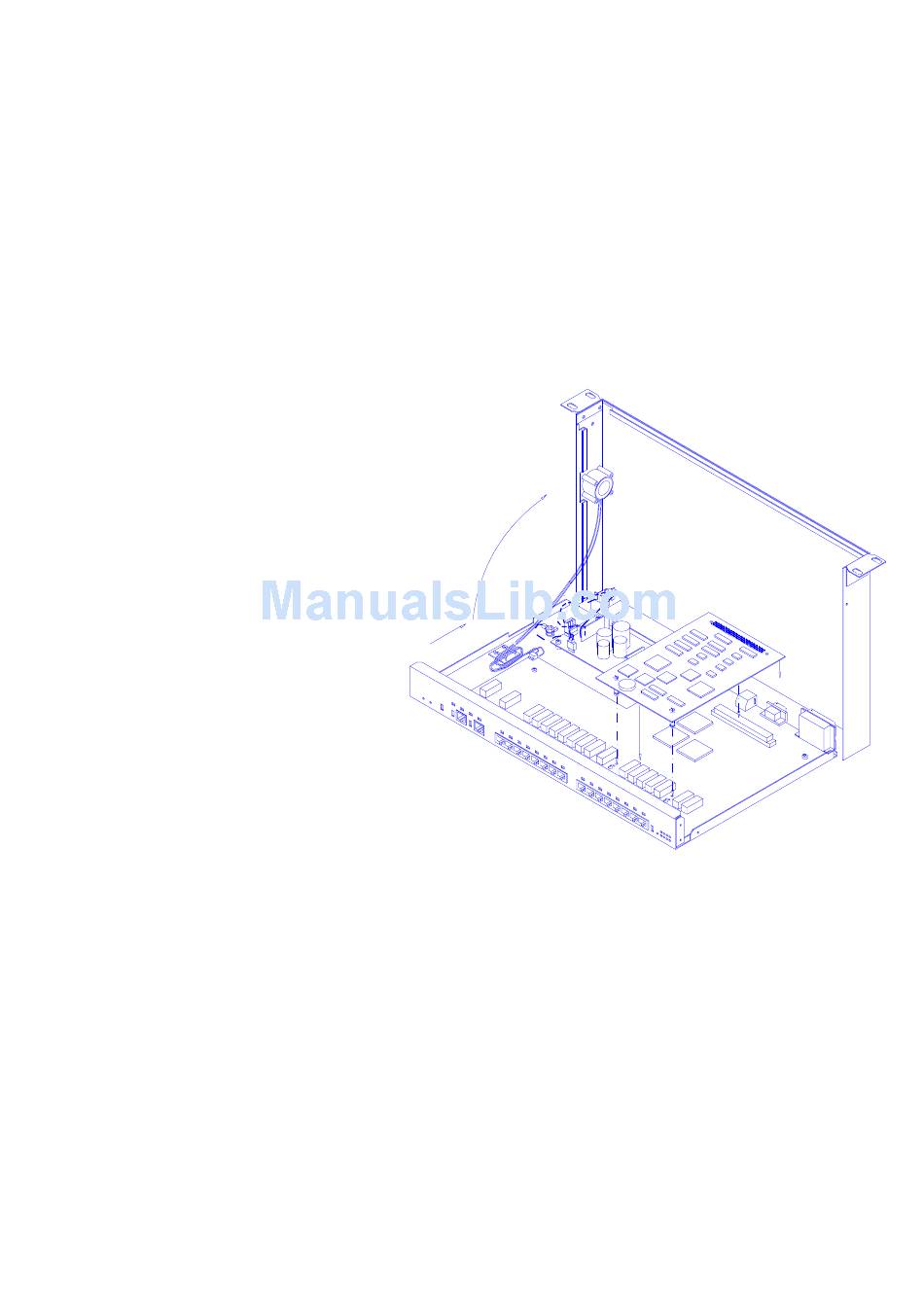

NOTE: The internal fan is attached to the cover. Fan wires connect to the
attachedStackMaster™TR 16-Port circuit board.
5.
Using necessary force, slide cover back to disengage from
chassis.
6.
Without disconnecting fan wires, carefully lift the front of the
StackMaster™TR 16-Port Unit cover. Rotate the cover over
the StackMaster™TR 16-Port Unit until the cover rests
securely behind, and next to, the StackMaster™TR 16-Port
Unit.
7.
Align the two snap-fit ends of the two SNMP Management
circuit board plastic spacers to the associated SNMP
Management circuit board holes.
8.
Align the SNMP Management circuit board DIN connector
pins (male connector) to the StackMaster™TR 16-Port circuit
board DIN connector (female connector).
9.
Apply downward pressure to the SNMP Management circuit
board until the SNMP Management circuit board DIN
connector is seated securely and the snap-fit connectors snap
into place.
5 5 . . M M A A I I N N T T E E N N A A N N C C E E
5-7
