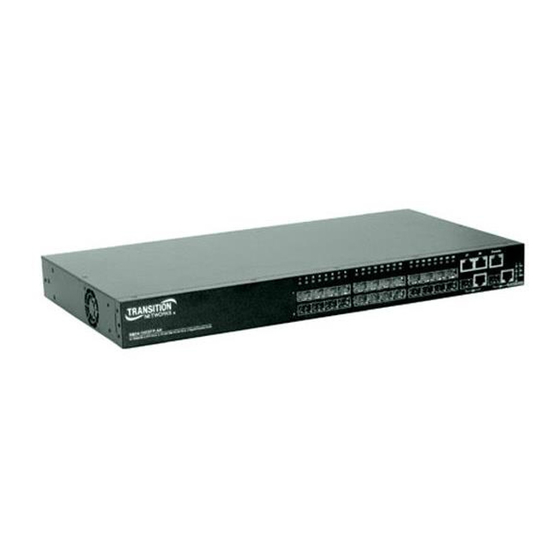

SM24-100SFP-AH
Fast Ethernet Switch
Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM24-100SFP-AH and is the answer not in the manual?

Questions and answers

Related Manuals for Transition Networks SM24-100SFP-AH

Summary of Contents for Transition Networks SM24-100SFP-AH

  • Page 1 SM24-100SFP-AH Fast Ethernet Switch Installation Guide...
  • Page 3 Installation Guide Fast Ethernet Switch Layer 2 Workgroup Switch with 24 100BASE-BX (SFP) Ports, 2 1000BASE-T (RJ-45) and 2 Combination Gigabit (RJ-45/SFP) Ports...
  • Page 4 SM24-100SFP-AH E082008-DT-R01 150200069500A...
  • Page 5 Compliances and Safety Warnings FCC - Class A This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 6 • Voltage dips, short interruptions and voltage variations immunity test according to EN 61000-4-11:1994 (>95% Reduction @10 ms, 30% Reduction @500 ms, >95% Reduction @5000 ms) LVD: • EN 60950-1:2001...

  • Page 7: Safety Compliance

    Safety Compliance Warning: Fiber Optic Port Safety When using a fiber optic port, never look at the transmit laser while it is CLASS I powered on. Also, never look directly at the fiber TX port and fiber cable LASER DEVICE ends when they are powered on.
  • Page 8 Power Cord Set U.S.A. and Canada The cord set must be UL-approved and CSA certified. The minimum specifications for the flexible cord are: - No. 18 AWG - not longer than 2 meters, or 16 AWG. - Type SV or SJ - 3-conductor The cord set must have a rated current capacity of at least 10 A The attachment plug must be an earth-grounding type with NEMA...
  • Page 9 France et Pérou uniquement: Ce groupe ne peut pas être alimenté par un dispositif à impédance à la terre. Si vos alimentations sont du type impédance à la terre, ce groupe doit être alimenté par une tension de 230 V (2 P+T) par le biais d’un transformateur d’isolement à rapport 1:1, avec un point secondaire de connexion portant l’appellation Neutre et avec raccordement direct à...

  • Page 10: Warnings And Cautionary Messages

    Stromkabel . Dies muss von dem Land, in dem es benutzt wird geprüft werden: Schweiz Dieser Stromstecker muß die SEV/ASE 1011Bestimmungen einhalt- Europe Das Netzkabel muß vom Typ HO3VVF3GO.75 (Mindestanforderung) sein und die Aufschrift <HAR> oder <BASEC> tragen. Der Netzstecker muß die Norm CEE 7/7 erfüllen (”SCHUKO”). Warnings and Cautionary Messages Warning: This product does not contain any serviceable user parts.
  • Page 11 Environmental Statement The manufacturer of this product endeavours to sustain an environmentally-friendly policy throughout the entire production process. This is achieved though the following means: • Adherence to national legislation and regulations on environmental production standards. • Conservation of operational resources. •...

  • Page 12: About This Guide

    About This Guide Purpose This guide details the hardware features of this device, including the physical and performance-related characteristics, and how to install it. Audience The guide is intended for use by network administrators who are responsible for installing and setting up network equipment; consequently, it assumes a basic working knowledge of LANs (Local Area Networks).

  • Page 13: Table Of Contents

    Contents Chapter 1: Introduction Overview Switch Architecture Network Management Options Description of Hardware SFP Slots Console Port Port and System Status LEDs Power Supply Sockets Features and Benefits Connectivity Expandability Performance Management Chapter 2: Network Planning Introduction to Switching Application Examples Collapsed Backbone Network Aggregation Plan Remote Connection with Fiber Cable...
  • Page 14 Contents Chapter 4: Making Network Connections Connecting Network Devices Twisted-Pair Devices Cabling Guidelines Connecting to PCs, Servers, Hubs and Switches Network Wiring Connections Fiber Optic SFP Devices Connectivity Rules 1000BASE-T Cable Requirements 1000 Mbps Gigabit Ethernet Collision Domain 100 Mbps Fast Ethernet Collision Domain 10 Mbps Ethernet Collision Domain Cable Labeling and Connection Records Appendix A: Troubleshooting...
  • Page 15 Tables Table 1-1 SM24-100SFP-AH Port Status LEDs Table 1-2 System Status LEDs Table 3-1 Serial Cable Wiring Table 4-1. Maximum 1000BASE-T Gigabit Ethernet Cable Length Table 4-2. Maximum 1000BASE-SX Gigabit Ethernet Cable Length Table 4-3. Maximum 1000BASE-LX Gigabit Ethernet Cable Length Table 4-4.
  • Page 16 Figures Figure 1-1. SM24-100SFP-AH Front and Rear Panels Figure 1-2. SM24-100SFP-AH Port Status LEDs Figure 1-3. System Status LED Figure 1-4. Power Supply Sockets Figure 2-1. Collapsed Backbone Figure 2-2. Network Aggregation Plan Figure 2-3. Remote Connection with Fiber Cable Figure 2-4.

  • Page 17: Chapter 1: Introduction

    Chapter 1: Introduction Overview The SM24-100SFP-AH is an intelligent switch with 24 100BASE SFP transceiver slots, two Gigabit combination ports that are comprised of a RJ-45 port and an SFP transceiver slot and 2 Gigabit stacking ports. There is also an SNMP-based management agent embedded on the main board.

  • Page 18: Switch Architecture

    Introduction Switch Architecture The SM24-100SFP-AH switch employs a wire-speed, non-blocking switching fabric. This permits simultaneous wire-speed transport of multiple packets at low latency on all ports. This switch also features full-duplex capability on all ports, which effectively doubles the bandwidth of each connection. his switch uses store-and-forward switching to ensure maximum data integrity.

  • Page 19: Port And System Status Leds

    Description of Hardware Port and System Status LEDs The LEDs, which are located on the front panel for easy viewing, are shown below and described in the following table. Port Status LEDs Combination Gigabit Port Status LEDs Figure 1-2. SM24-100SFP-AH Port Status LEDs Table 1-1 SM24-100SFP-AH Port Status LEDs Condition Status...

  • Page 20: Table 1-2 System Status Leds

    Introduction System Status LEDs Figure 1-3. System Status LED Table 1-2 System Status LEDs Condition Status On Green Internal power is operating normally. (Power) On Amber Internal power supply has failed. Power off or failure. On Green The backup power supply is operating normally. On Yellow The backup power supply is plugged in but faulty, such as a thermal or fan failure.

  • Page 21: Power Supply Sockets

    Features and Benefits Power Supply Sockets There is one standard power socket on the rear panel of each switch for the AC power cord. Backup Power Supply Power Socket B PS 1 0 0 /1 1 5/ 22 0 /2 3 0 V 1 .0 /1 .0 /0 .5 /0 .5 A DC IN 5 0 /6 0 HZ...

  • Page 22: Management

    Introduction Management • “At-a-glance” LEDs for easy troubleshooting • Network management agent: • Manages switch in-band or out-of-band • Supports Telnet, SNMP/RMON and Web-based interface...

  • Page 23: Chapter 2: Network Planning

    Chapter 2: Network Planning Introduction to Switching A network switch allows simultaneous transmission of multiple packets via non-crossbar switching. This means that it can partition a network more efficiently than bridges or routers. The switch has, therefore, been recognized as one of the most important building blocks for today’s networking technology.

  • Page 24: Application Examples

    Network Planning Application Examples The SM24-100SFP-AH is not only designed to segment your network, but also to provide a wide range of options in setting up network connections. Some typical applications are described in the following pages. Collapsed Backbone The SM24-100SFP-AH is an excellent choice for mixed Ethernet, Fast Ethernet, and Gigabit Ethernet installations where significant growth is expected in the near future.

  • Page 25: Network Aggregation Plan

    Application Examples Network Aggregation Plan With 24 parallel bridging ports (i.e., 24 distinct collision domains), the switch can collapse a complex network down into a single efficient bridged node, increasing overall bandwidth and throughput. In the figure below, the SFP ports on the switch are providing 100 Mbps connectivity through layer 2 switches.

  • Page 26: Remote Connection With Fiber Cable

    Network Planning Remote Connection with Fiber Cable Fiber optic technology allows for longer cabling than any other media type. A 1000BASE-SX (MMF) link can connect to a site up to 550 meters away, a 1000BASE-LX (SMF) link up to 5 km, and a 1000BASE-LH link up to 70 km. This allows the switch to serve as a collapsed backbone, providing direct connectivity for a widespread LAN.

  • Page 27: Making Vlan Connections

    Application Examples Making VLAN Connections The SM24-100SFP-AH supports VLANs which can be used to organize any group of network nodes into separate broadcast domains. VLANs confine broadcast traffic to the originating group, and can eliminate broadcast storms in large networks. This provides a more secure and cleaner network environment.

  • Page 28: Application Notes

    Network Planning Application Notes Full-duplex operation only applies to point-to-point access (such as when a switch is attached to a workstation, server or another switch). When the switch is connected to a hub, both devices must operate in half-duplex mode. Avoid using flow control on a port connected to a hub unless it is actually required to solve a problem.

  • Page 29: Chapter 3: Installing The Switch

    Chapter 3: Installing the Switch Selecting a Site Switch units can be mounted in a standard 19-inch equipment rack or on a flat surface. Be sure to follow the guidelines below when choosing a location. • The site should: • be at the center of all the devices you want to link and near a power outlet. •...

  • Page 30: Optional Rack-Mounting Equipment

    Installing the Switch Optional Rack-Mounting Equipment If you plan to rack-mount the switch, be sure to have the following equipment available: • Four mounting screws for each device you plan to install in a rack—these are not included • A screwdriver (Phillips or flathead, depending on the type of screws used) Mounting The switch units can be mounted in a standard 19-inch equipment rack or on a desktop or shelf.

  • Page 31: Desktop Or Shelf Mounting

    Mounting Mount the device in the rack, using four rack-mounting screws (not provided). Be sure to secure the lower rack-mounting screws first to prevent the brackets being bent by the weight of the switch. Figure 3-2. Installing the Switch in a Rack If installing a single switch only, turn to “Connecting to a Power Source”...

  • Page 32: Installing An Optional Sfp Transceiver

    Installing the Switch If installing a single switch only, go to “Connecting to a Power Source” at the end of this chapter. If installing multiple switches, attach four adhesive feet to each one. Place each device squarely on top of the one below, in any order. If also installing an RPS, place it close to the stack.

  • Page 33: Connecting To A Power Source

    Connecting to a Power Source Connecting to a Power Source To connect a device to a power source: Insert the power cable plug directly into the socket located at the back of the device. B PS 1 0 0 /1 1 5/ 22 0 /2 3 0 V 1 .0 /1 .0 /0 .5 /0 .5 A DC IN 5 0 /6 0 HZ...

  • Page 34: Wiring Map For Serial Cable

    Installing the Switch Wiring Map for Serial Cable Table 3-1 Serial Cable Wiring Switch’s 8-Pin Null Modem PC’s 9-Pin Serial Port DTE Port 6 RXD (receive data) <---------------------------- 3 TXD (transmit data) 3 TXD (transmit data) -----------------------------> 2 RXD (receive data) 5 SGND (signal ground) ------------------------------ 5 SGND (signal ground) No other pins are used.

  • Page 35: Chapter 4: Making Network Connections

    Chapter 4: Making Network Connections Connecting Network Devices The SM24-100SFP-AH is designed to interconnect multiple segments (or collision domains) using optional SFP transceivers. It can be connected to network cards in PCs and servers, as well as to hubs, switches or routers. Two combination 1000BASE-T/SFP ports provide the uplink connection from the switch to other switches or routers at the central office.

  • Page 36: Network Wiring Connections

    Making Network Connections If the device is a PC card and the switch is in the wiring closet, attach the other end of the cable segment to a modular wall outlet that is connected to the wiring closet. (See “Network Wiring Connections” on page 4-2.) Otherwise, attach the other end to an available port on the switch.

  • Page 37: Fiber Optic Sfp Devices

    Fiber Optic SFP Devices Fiber Optic SFP Devices An optional SFP transceiver (100BASE-FX, 100BASE-BX, 1000BASE-SX, 1000BASE-LX, or 1000BASE-LH) can be used for a backbone connection between switches, or for connecting to a server or PC. Each multimode fiber optic port requires 50/125 or 62.5/125 micron multimode fiber optic cabling with an LC connector at both ends.

  • Page 38: Connectivity Rules

    Making Network Connections The maximum length for fiber optic cable operating at Fast Ethernet speed will depend on the fiber type as listed under “100 Mbps Fast Ethernet Collision Domain” on page 4-5. The maximum length for fiber optic cable operating at Gigabit speed will depend on the fiber type as listed under “1000 Mbps Gigabit Ethernet Collision Domain”...

  • Page 39: 100 Mbps Fast Ethernet Collision Domain

    Connectivity Rules Table 4-4. Maximum 1000BASE-LH Gigabit Ethernet Cable Length Fiber Size Fiber Bandwidth Maximum Cable Length Connector 9/125 micron 2 m - 70 km (7 ft - 43.5 miles) LC single-mode fiber 100 Mbps Fast Ethernet Collision Domain Table 4-5. Maximum Fast Ethernet Cable Length Type Cable Type Max.

  • Page 40: Cable Labeling And Connection Records

    Making Network Connections Cable Labeling and Connection Records When planning a network installation, it is essential to label the opposing ends of cables and to record where each cable is connected. Doing so will enable you to easily locate inter-connected devices, isolate faults and change your topology without need for unnecessary time consumption.

  • Page 41: Appendix A: Troubleshooting

    Appendix A: Troubleshooting Diagnosing Switch Indicators Table A-1. Troubleshooting Chart Symptom Action Pwr LED is Off • Power supply is disconnected. • Check connections between the switch, the power cord, and the wall outlet. • Contact your dealer for assistance. Pwr LED is Amber •...

  • Page 42: Power And Cooling Problems

    Troubleshooting Power and Cooling Problems If the power indicator does not turn on when the power cord is plugged in, you may have a problem with the power outlet, power cord, or internal power supply. However, if the unit powers off after running for a while, check for loose power connections, power losses or surges at the power outlet, and verify that the fans on the unit are unobstructed and running prior to shutdown.

  • Page 43: Appendix B: Cables

    Appendix B: Cables Twisted-Pair Cable and Pin Assignments For 10/100BASE-TX connections, a twisted-pair cable must have two pairs of wires. For 1000BASE-T connections the twisted-pair cable must have four pairs of wires. Each wire pair is identified by two different colors. For example, one wire might be green and the other, green with white stripes.

  • Page 44: Straight-Through Wiring

    Cables Table B-1. 10/100BASE-TX MDI and MDI-X Port Pinouts MDI Signal Name MDI-X Signal Name Transmit Data plus (TD+) Receive Data plus (RD+) Transmit Data minus (TD-) Receive Data minus (RD-) Receive Data plus (RD+) Transmit Data plus (TD+) Receive Data minus (RD-) Transmit Data minus (TD-) 4,5,7,8 Not used...

  • Page 45: 1000Base-T Pin Assignments

    Twisted-Pair Cable and Pin Assignments 10/100BASE-TX Crossover Cable White/Orange Stripe Orange White/Green Stripe End A End B Blue White/Blue Stripe Green White/Brown Stripe Brown Figure B-3. Crossover Wiring 1000BASE-T Pin Assignments All 1000BASE-T ports support automatic MDI/MDI-X operation, so you can use straight-through cables for all network connections to PCs or servers, or to other switches or hubs.
  • Page 46 Cables Cable Testing for Existing Category 5 Cable Installed Category 5 cabling must pass tests for Attenuation, Near-End Crosstalk (NEXT), and Far-End Crosstalk (FEXT). This cable testing information is specified in the ANSI/TIA/EIA-TSB-67 standard. Additionally, cables must also pass test parameters for Return Loss and Equal-Level Far-End Crosstalk (ELFEXT).

  • Page 47: Appendix C: Supported Sfp Transceivers

    Appendix C: Supported SFP Transceivers Please contact Transition Networks for proper SFP selection. Note: Power budget constraints must be considered when calculating the maximum cable length for your specific environment.
  • Page 48 Supported SFP Transceivers...

  • Page 49: Appendix D: Specifications

    Appendix D: Specifications Physical Characteristics Ports 24 100BASE-X ports, with auto-negotiation 2 1000BASE-T ports (RJ-45) 2 Combination Gigabit ports (RJ-45/SFP) Network Interface Ports 1-24: SFP (100BASE-FX, 100BASE-BX) Ports 25-28: RJ-45 connector, auto MDI/X 10BASE-T: RJ-45 (100-ohm, UTP cable; Category 3 or better) 100BASE-TX: RJ-45 (100-ohm, UTP cable;...

  • Page 50: Switch Features

    Specifications Temperature Operating: 0 to 45 °C (32 to 113 °F) Storage: -40 to 70 °C (-40 to 158 °F) Humidity Operating: 10% to 90% (non-condensing) Power Supply Internal, auto-ranging transformer: 100 to 240 V, 50-60 Hz, 1.5 A Power Consumption 30 Watts maximum Maximum Current 0.25 A @ 115 VAC...

  • Page 51: Standards

    Standards Standards IEEE 802.3-2005 Ethernet, Fast Ethernet, Gigabit Ethernet IEEE 802.1D (Bridging) ISO/IEC 8802-3 Compliances CE Mark Emissions FCC Class A EN55022 (CISPR 22) Class A EN 61000-3-2/3 Immunity EN 61000-4-2/3/4/5/6/8/11 Safety UL/CUL (UL 60950-1, CSA 22.2 NO60950-1) CB (IEC60950-1)
  • Page 52 Specifications...

  • Page 53: Glossary

    Glossary 10BASE-T IEEE 802.3 specification for 10 Mbps Ethernet over two pairs of Category 3, 4, or 5 UTP cable. 100BASE-BX IEEE 802.3-2005 specification for 100 Mbps Fast Ethernet over one strand of 9/125 micron core fiber cable. 100BASE-FX IEEE 802.3-2005 specification for 100 Mbps Fast Ethernet over two strands of 9/125, 50/125 or 62.5/125 micron core fiber cable.
  • Page 54 Glossary Collision A condition in which packets transmitted over the cable interfere with each other. Their interference makes both signals unintelligible. Collision Domain Single CSMA/CD LAN segment. CSMA/CD CSMA/CD (Carrier Sense Multiple Access/Collision Detect) is the communication method employed by Ethernet, Fast Ethernet, or Gigabit Ethernet. End Station A workstation, server, or other device that does not forward traffic.
  • Page 55 Glossary IEEE 802.3u Defines CSMA/CD access method and physical layer specifications for 100BASE-TX Fast Ethernet. (Now incorporated into IEEE 802.3-2005.) IEEE 802.3x Defines Ethernet frame start/stop requests and timers used for flow control on full-duplex links. (Now incorporated into IEEE 802.3-2005.) IEEE 802.3z Defines CSMA/CD access method and physical layer specifications for 1000BASE Gigabit Ethernet.(Now incorporated into IEEE 802.3-2005.)
  • Page 56 Glossary Telecommunications Industry Association Transmission Control Protocol/Internet Protocol (TCP/IP) Protocol suite that includes TCP as the primary transport protocol, and IP as the network layer protocol. Unshielded twisted-pair cable. Virtual LAN (VLAN) A Virtual LAN is a collection of network nodes that share the same collision domain regardless of their physical location or connection point in the network.

  • Page 57: Index

    Index Numerics 10 Mbps connectivity rules 4-5 electrical interference, avoiding 3-1 100 Mbps connectivity rules 4-5 equipment checklist 3-1 1000BASE-T Ethernet connectivity rules 4-5 pin assignments B-3 ports 1-2 100BASE-TX Fast Ethernet connectivity rules 4-5 pin assignments B-1 features D-2 ports 1-2 management 1-6 10BASE-T...
  • Page 58 Index Web-based 1-2 pinouts B-3 mounting the switch rubber foot pads, attaching 3-3 in a rack 3-2 on a desktop or shelf 3-3 multimode fiber optic cables 4-3 screws for rack mounting 3-2 site selelction 3-1 SNMP agent 1-2 network specifications connections 4-1 compliances D-3...
  • Page 60 SM24-100SFP-AH E082008-DT-R01 150200069500A...
