3.3 Cascading StackMaster™TR Units
3-4
Cascading the StackMaster™TR cascades ONLY the SNMP management.
To cascade the StackMaster™TR units, use the RI/RO connections at the
front.
NOTE: Use only the special six-inch DB-25 (male-to-male) cables (PN
6005).The StackMaster™TR 16-Port DOES NOT require terminators.

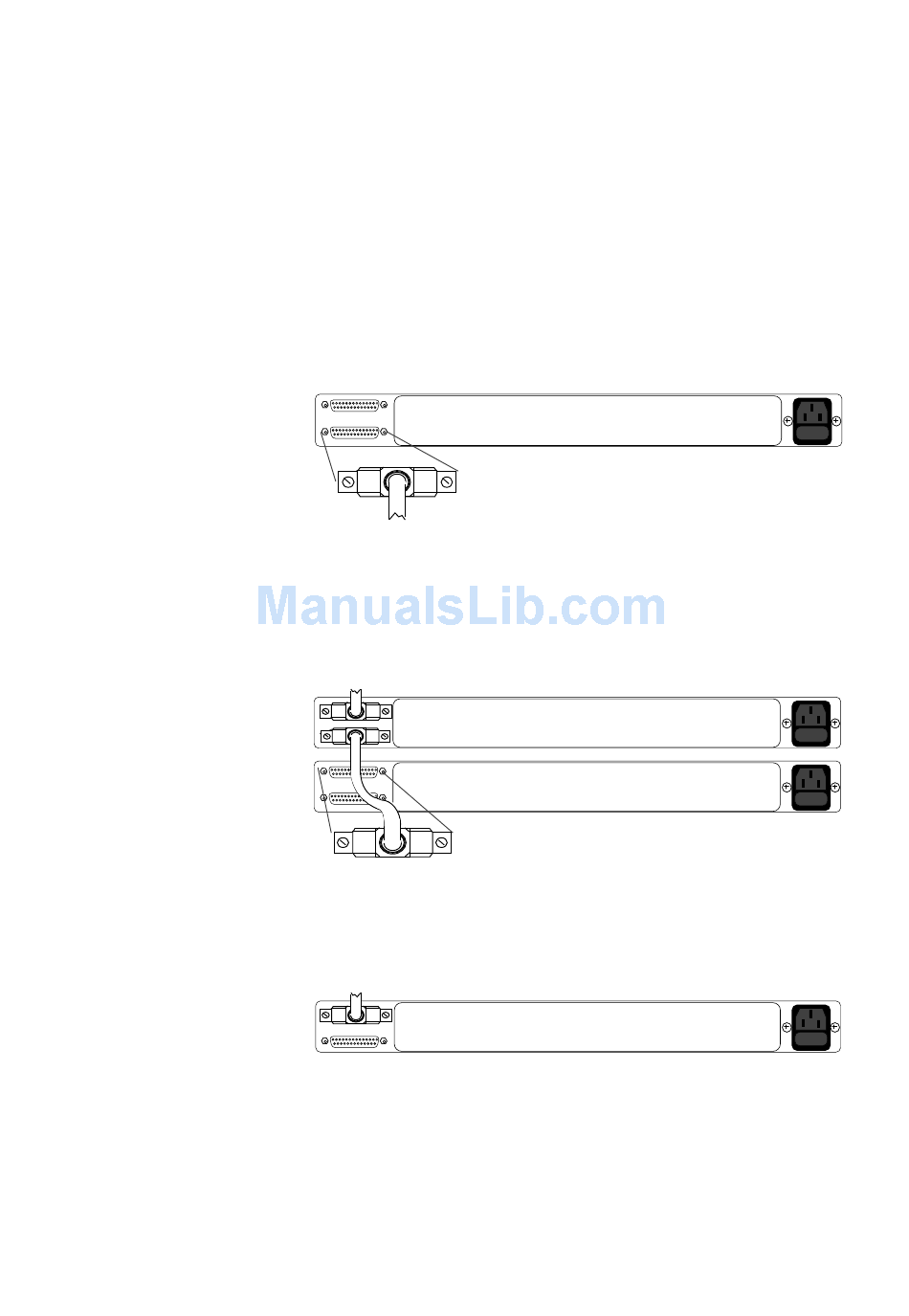

To cascade a Stack in which the top unit has an SNMP management
board installed:
1.
Connect six-inch DB-25 (male-to-male) cable to Cascade B of
StackMaster™TR 16-Port Unit.
Cascade A
Cascade B
2
Connect six-inch DB-25 (male-to-male) cable from
StackMaster™TR 16-Port Unit above to Cascade A of next
StackMaster™TR 16-Port Unit.
Cascade A
Cascade B
Cascade A
Cascade B
3.
Connect six-inch DB-25 (male-to-male) cable from Cascade A to
Cascade B of same StackMaster™TR 16-Port Unit.
Cascade A
Cascade B
4.
Continue steps 2 and 3 until all StackMaster™TR 16-Port Units
are connected.
220-240
110-120
220-240
110-120
220-240
110-120
220-240
110-120
StackMasterTR
