Port Status LEDs
16 Port StackMaster TR ™
Active Retiming Managed Hub
Insert
T R A N S I T I O N
P
4 Mbps
n e t w o r k s
Power
Reset
16 Mbps A Ring In

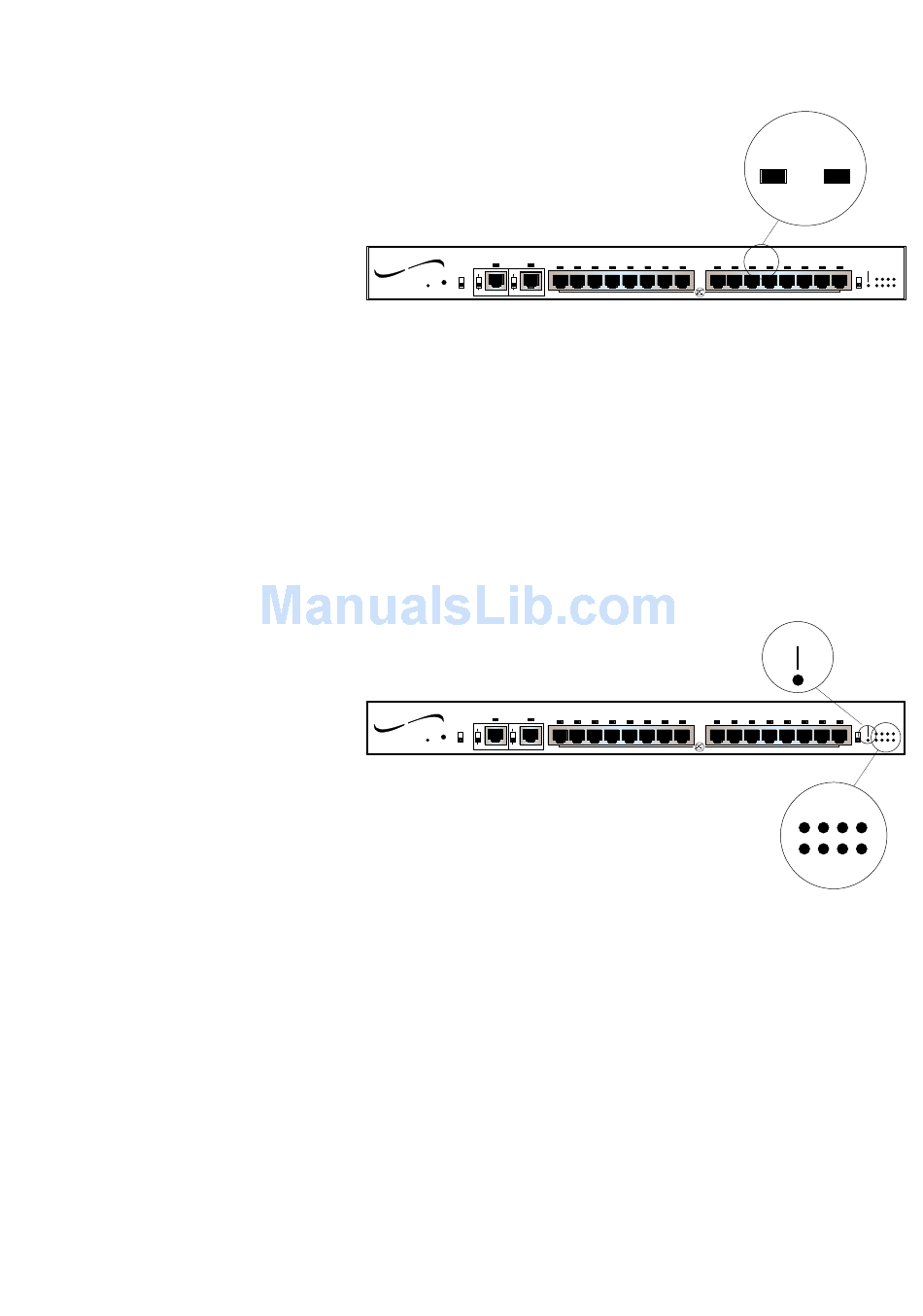

Port Status LEDs above each of the sixteen (16) RJ-45 lobe port
connectors indicate insertion status for each of the sixteen connections:
green LED:
NOTE: Illuminated LEDs indicate insertion EXCEPT when a wrong speed
station is plugged into the hub; when a wrong speed station is plugged
into the hub, the iluminated LED indicates only that the connecting cable
is good.
Management Board LEDs
16 Port StackMaster TR ™ Active Retiming Managed Hub
Insert
T R A N S I T I O N
P
4 Mbps
n e t w o r k s
Power
Reset
16 Mbps A Ring In
When the SNMP Management circuit board is installed and managing the
StackMaster™TR 16-Port Stack, the SNMP Management circuit board
indicators are active. The Enable indicator is illuminated when the SNMP
Management circuit board is installed. The eight Management Status
indicators cycle in a steady roll when the StackMaster™TR 16-Port Stack
is functioning normally.
