3.7 Optionally Configuring SNMP Network
Management at Attached Terminal

Connecting to ASCII Terminal

3-8
To set SNMP management parameters through an attached terminal:
• Connect the StackMaster™TR 16-Port to an ASCII terminal or terminal
emulator
• Bring up the StackMaster™TR 16-Port configuration software
• Reset the StackMaster™TR 16-Port
• Set Network and SNMP parameter values.
NOTE: The DB9 serial port on the StackMaster™TR 16-Port is a DTE
device. If the DB9 serial port cable will be attached directly between two
DTE devices, use a null modem cable. If the cable will be attached to a
9600 baud modem, use a straight through DB9 cable.

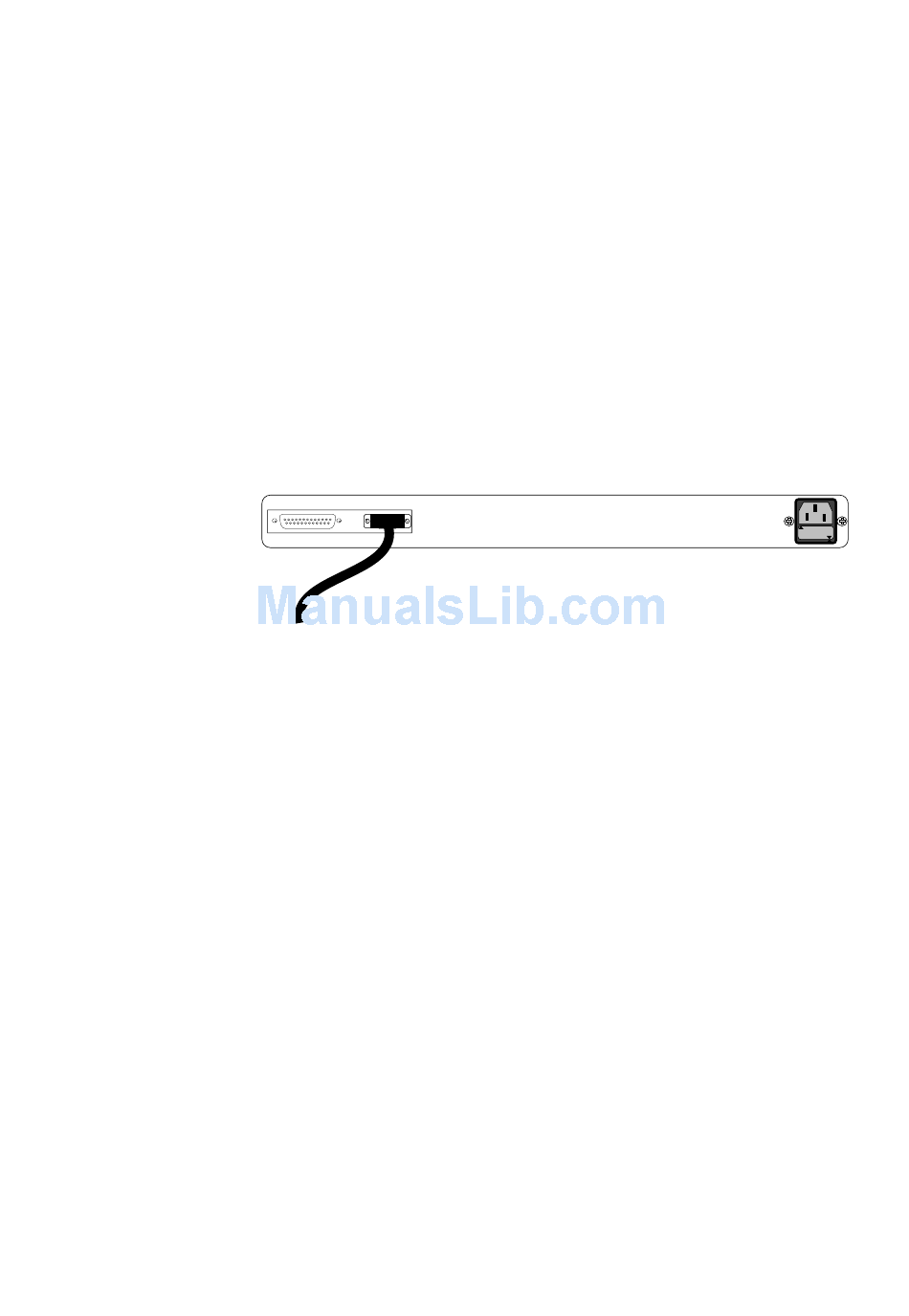

Management Interface Serial Port
To ASCII Terminal
1. Locate the correct DB9 serial port cable with female DB9
connector.
2. Attach the DB9 serial port female cable connector to the male
DB9 serial port connector on the StackMaster™TR 16-Port .
3. Attach the other end of the DB9 serial port cable (directly or
indirectly through a modem) to an ASCII terminal or terminal
emulator.
NOTE: The StackMaster™TR 16-Port is shipped with standard serial port
parameter values:
baud
stop bits
data bits
parity
Using methods appropriate to the attached terminal, verify that the serial
port parameters of the attached terminal match the StackMaster™TR 16-
Port port parameter values. If necessary, modify the attached terminal port
parameter values.
9600
1
8
NONE
