Operation

This section describes the front panel operation of the FOX3 matrix switcher, including:
•
•
•
•
•
•

Front Panel Features

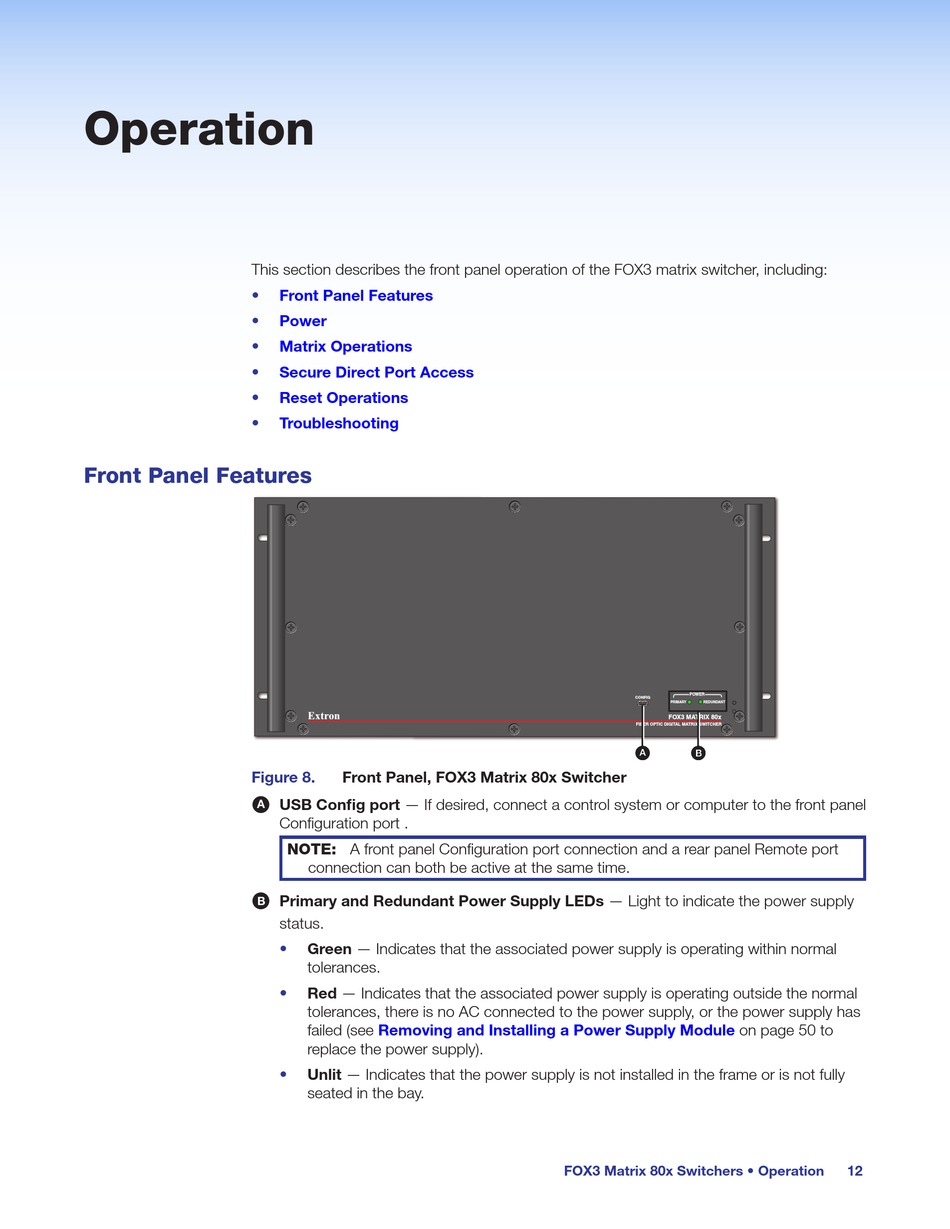

Figure 8.
A
B
Front Panel Features
Power
Matrix Operations
Secure Direct Port Access
Reset Operations
Troubleshooting
Extron
Front Panel, FOX3 Matrix 80x Switcher
USB Config port — If desired, connect a control system or computer to the front panel
Configuration port .
NOTE: A front panel Configuration port connection and a rear panel Remote port
connection can both be active at the same time.
Primary and Redundant Power Supply LEDs — Light to indicate the power supply
status.
• Green — Indicates that the associated power supply is operating within normal
tolerances.
Red — Indicates that the associated power supply is operating outside the normal
•
tolerances, there is no AC connected to the power supply, or the power supply has
failed (see Removing and Installing a Power Supply Module
replace the power supply).
• Unlit — Indicates that the power supply is not installed in the frame or is not fully
seated in the bay.
POWER
CONFIG
PRIMARY REDUNDANT
FOX3 MATRIX 80x
FIBER OPTIC DIGITAL MATRIX SWITCHER
A A A B B B
on page 50 to
FOX3 Matrix 80x Switchers • Operation 12
