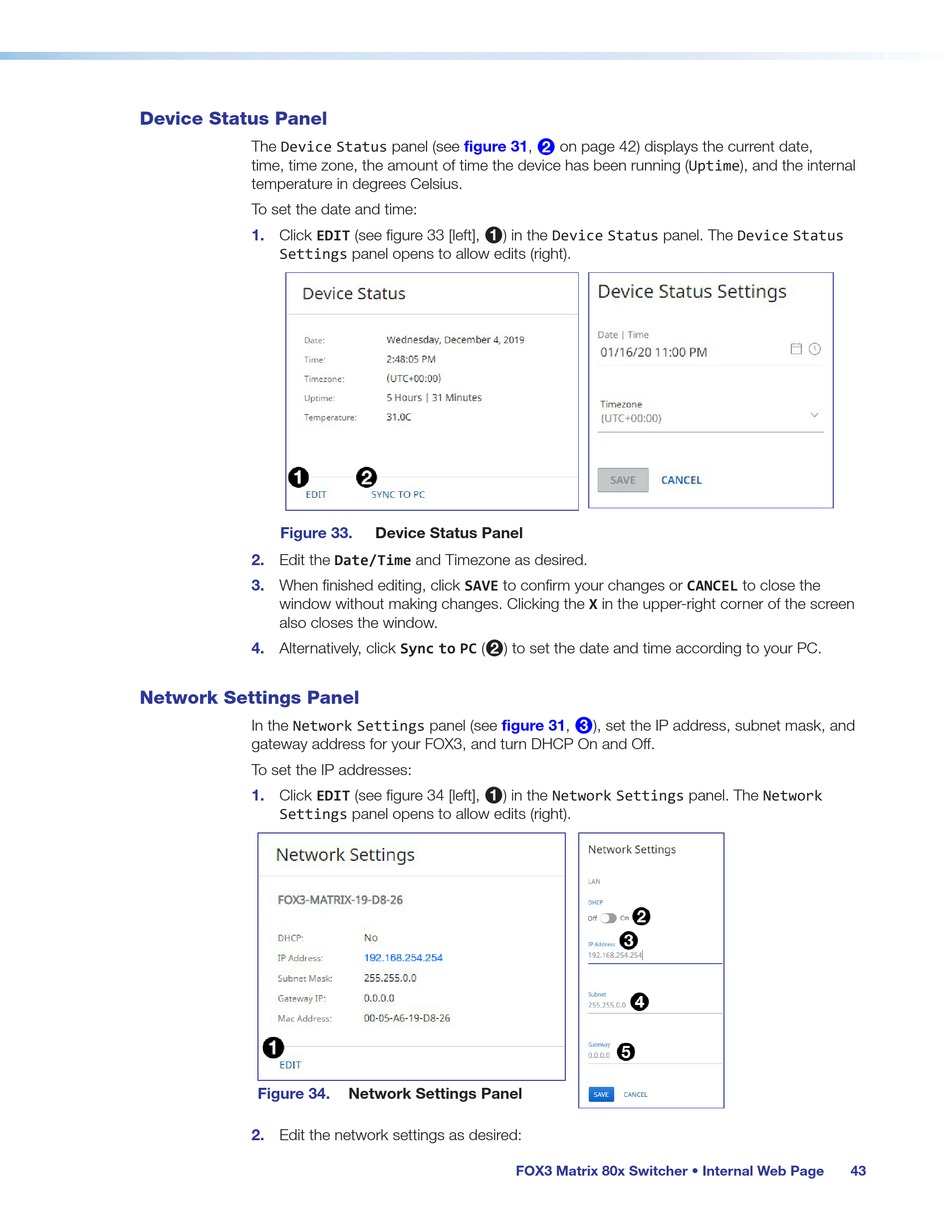

Device Status Panel

The Device Status panel (see figure 31,
time, time zone, the amount of time the device has been running (Uptime), and the internal
temperature in degrees Celsius.
To set the date and time:
1. Click EDIT (see figure 33 [left],
Settings panel opens to allow edits (right).
Figure 33.
2. Edit the Date/Time and Timezone as desired.
3.
When finished editing, click SAVE to confirm your changes or CANCEL to close the
window without making changes. Clicking the X in the upper-right corner of the screen
also closes the window.
4. Alternatively, click Sync to PC (

Network Settings Panel

In the Network Settings panel (see figure 31,
gateway address for your FOX3, and turn DHCP On and Off.
To set the IP addresses:
1.
Click EDIT (see figure 34 [left],
Settings panel opens to allow edits (right).
Figure 34.
2. Edit the network settings as desired:
) in the Device Status panel. The Device Status
1
Device Status Panel
) to set the date and time according to your PC.
2
) in the Network Settings panel. The Network
1
Network Settings Panel
FOX3 Matrix 80x Switcher • Internal Web Page
on page 42) displays the current date,
2
), set the IP address, subnet mask, and
3
43
