Removing and Installing a Power Supply Module

The two power supply modules (primary and redundant) are identical. Each power supply
module has a 2-color status LED, visible on the rear panel, that indicates the status of the
power supply outputs. If the LED is lit green, the power supply is operating normally. If the
LED is lit red, the supply has failed and should be replaced at the earliest opportunity.
ATTENTION:
NOTES:
Remove and replace a power supply as follows:
1.
2.
3.
4.
5.
6.
7.
8.
• Disconnect both power supply cords before servicing.
• Débranchez les deux câbles de la source d'alimentation avant l'entretient.
• The power supply modules are hot-swappable. Either power supply can be
removed or installed without powering down the switcher.
• Power supply modules are not interchangeable between other FOX3 matrix models.
• The diagram shows the 40x frame, which is similar in function to the 80x frame.
Rotate the left and right captive panel screws to completely loosen the screws.
Gently pull on the handle to loosen the power supply from the backplane (see figure 42).
Slide the power supply out of the chassis.

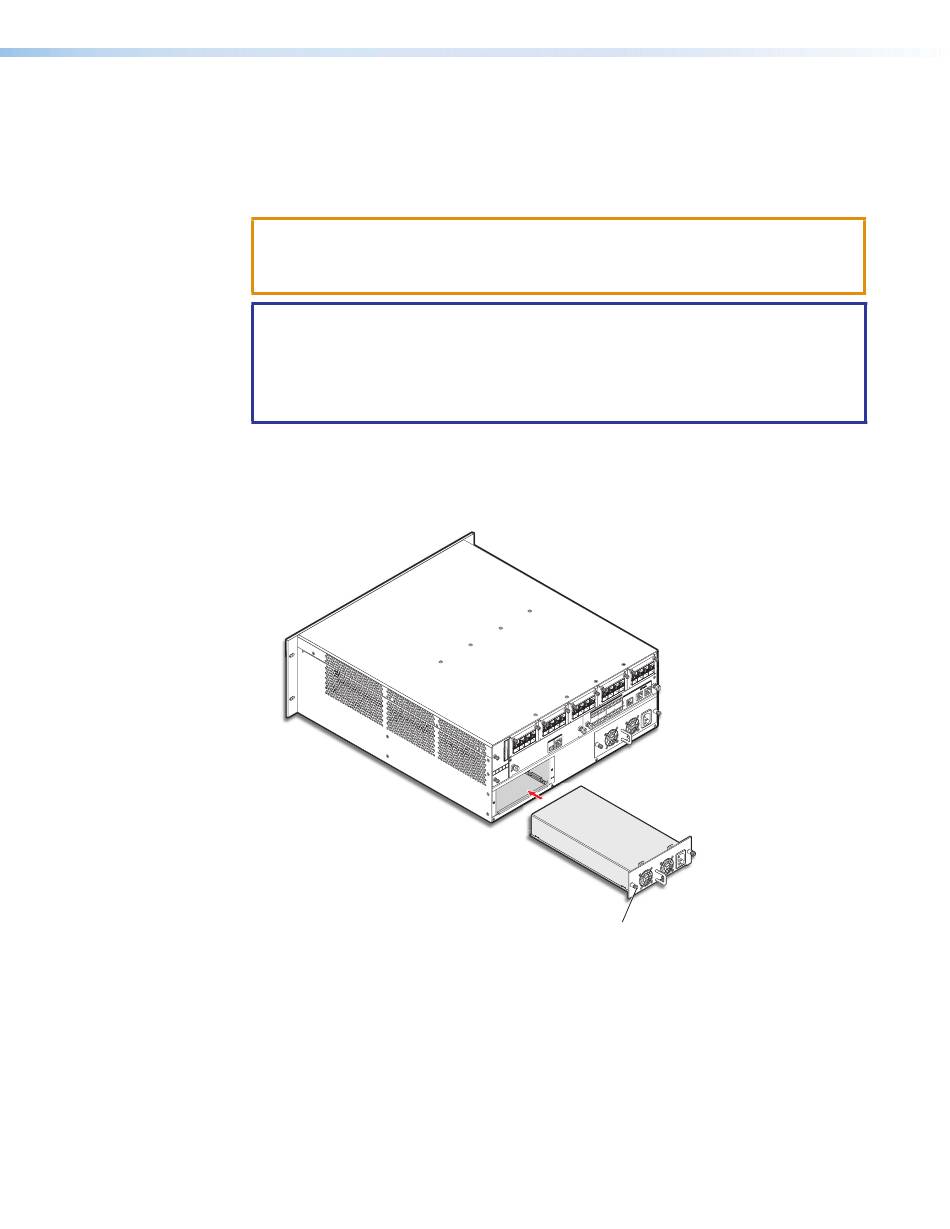

Figure 42. Power Supply Replacement
Orient the power supply module to be installed with the LED to the right.
Align the flanges on the power supply module with the left and right power supply
guides (see figure 42).
Gently slide the power supply into the enclosure until the module meets resistance.
Gently seat the power supply in the backplane.
Use a screwdriver to tighten the left and right captive panel screws to secure the power
supply in place.
FOX3 Matrix 80x Switcher • Maintenacne and Modifications
D IO
A U N
R IX IO
N S
M AT PA
X 3 E X
N TE
FO
D A IO N
PA NS
EX
DI O AT
AU
P
D M IO N
TS N S
PU R
O UT E X PA
DI O L
AU R
L 3
S 4
TS R R
IN PU 1
DI O L L
2
AU R R
L 3 L
4 R
1 L
2 R
L
N
LA
O TE
R EM
ro n M B LY 2
-23
E xt S E RS
A S
N
FA G
Tx Rx
D
G EN
LE
U T 33 -4 0
U TP
T/ O 25 -3 2
IN PU 17 -2 4
9- 16 ET
R ES
1- 8
Captive Panel Screw
