a. Click the DHCP switch (see
and off. When DHCP is enabled (On), the unit configures its IP address and other
network settings from the DHCP server. The default is Off.
b. To set any of the addresses (IP Address (
address (
3. When finished editing, click out of the field or click the <Enter> button on the
keyboard.
4. Then click SAVE to confirm your changes or CANCEL to close the window without
making changes. Clicking the X in the upper-right corner of the screen also closes the
window.

Firmware Panel

The Firmware panel (see figure 31,
version and the date it was last updated. Update the firmware on the FOX3 Matrix 80x from
this panel (see
files).
To update firmware:
In the Firmware panel, click the SELECT
1.
FILE button (see figure 35).
2. In the Open dialog box, browse to
locate the new firmware file on your
computer (by default the file is stored at
C:\Program Files (x86)\Extron\
Firmware\FOX3 Matrix 80x after
being downloaded from the
page).
NOTE: Firmware files for FOX3 Matrix 80x have a .eff extension. Do not attempt to load
any other file types.
3. Double-click the firmware file name.
The Open window closes, and the
selected firmware file name appears in
the Update Firmware panel on the web
page.
4. Click UPDATE to begin (see figure 36). To
cancel the update, click the X button in
the Update Firmware panel.
During the updating process, a window
appears in the middle of the screen,
showing messages giving the progress
of the update: Initializing, Installing the Firmware, and Rebooting Device.
When the update is completed, the message window closes and the message
Firmware Upload Complete appears near the top of the screen. The new firmware
filename appears beside Version in the Firmware panel.
figure 34
), click in the desired field and enter the address.
5
, on page 42) displays the current firmware
4
Software/Firmware Installation
Extron web
FOX3 Matrix 80x Switcher • Internal Web Page
[right], on page 43) to toggle DHCP on
2
), Subnet mask (
3 4
on page 30 to download the firmware

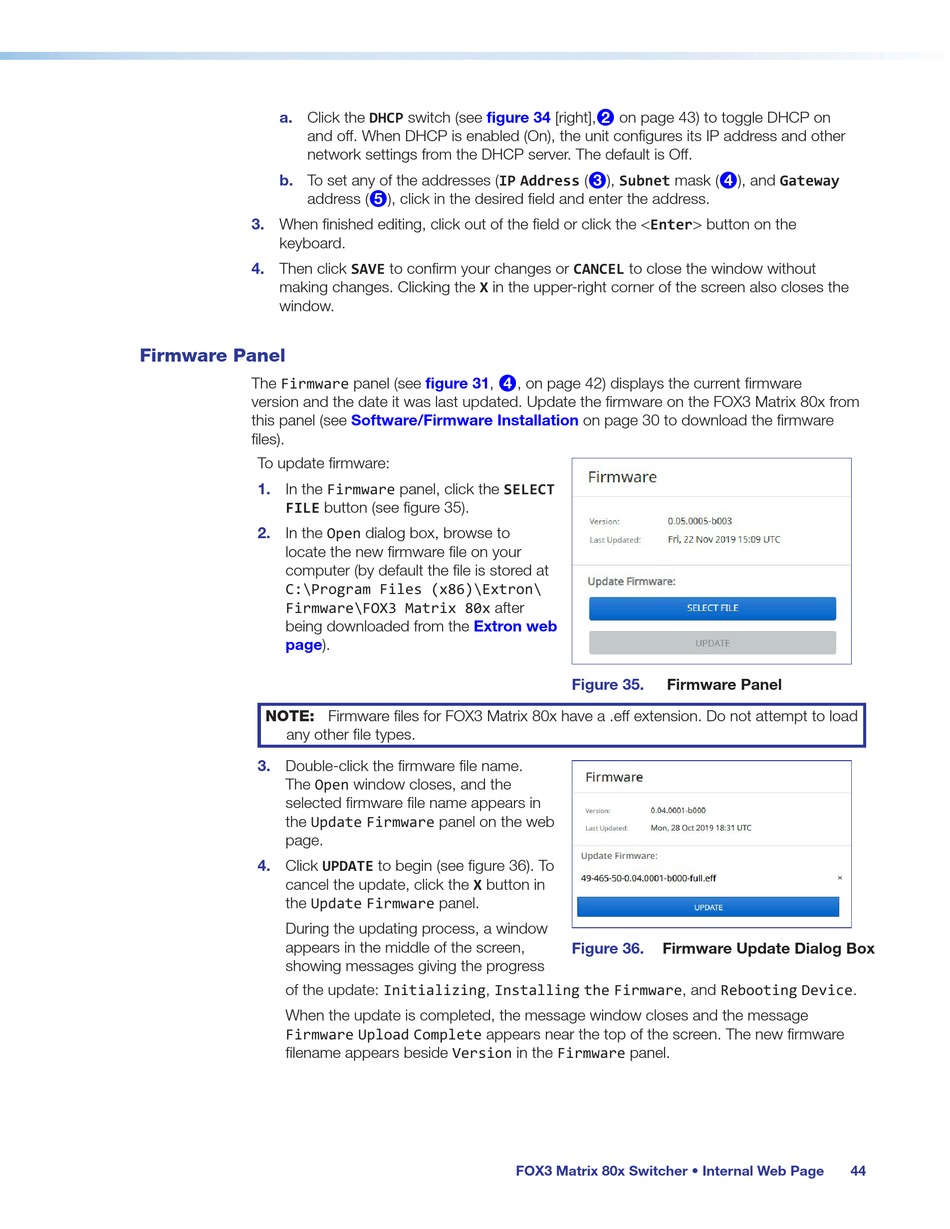

Figure 35. Firmware Panel
