Front Panel Operation

This section details the physical configuration and front panel
operation of the SMX after the installation process and includes:

Front Panel Overview

•
Creating Ties
•
Viewing Ties
•
Muting or Unmuting Outputs
•
Removing Ties
•
Saving and Recalling I/O Presets
•
Adjusting the Input Audio Level
•
Adjusting the Output Audio Volume
•
Using Reset Levels
•
Setting the Front Panel Locks (Executive Modes)
•

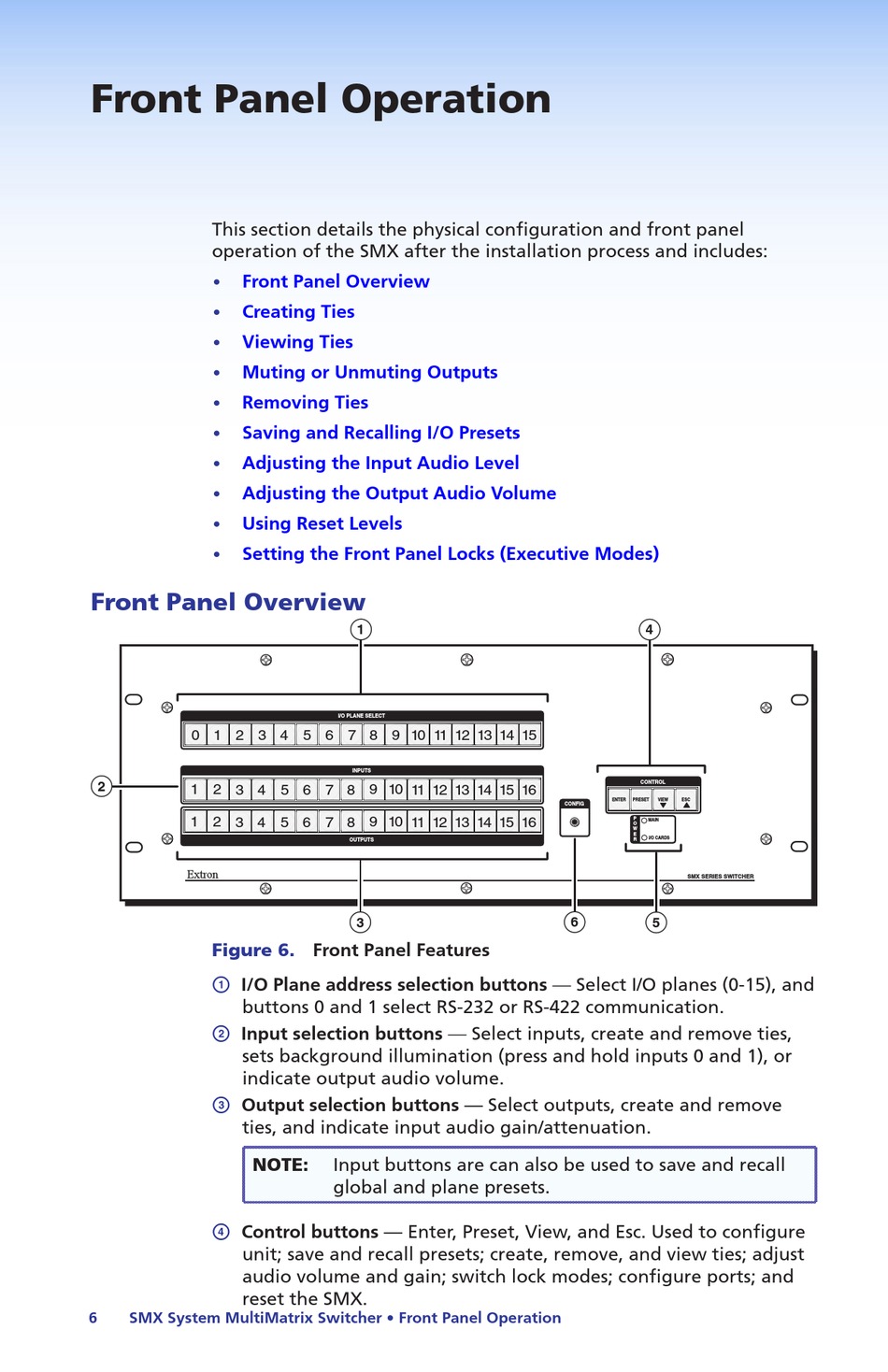

Front Panel Overview
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
2
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Figure 6.
a
I/O Plane address selection buttons — Select I/O planes (0-15), and
buttons 0 and 1 select RS-232 or RS-422 communication.
b
Input selection buttons — Select inputs, create and remove ties,
sets background illumination (press and hold inputs 0 and 1), or
indicate output audio volume.
c
Output selection buttons — Select outputs, create and remove
ties, and indicate input audio gain/attenuation.
NOTE:
d
Control buttons — Enter, Preset, View, and Esc. Used to configure
unit; save and recall presets; create, remove, and view ties; adjust
audio volume and gain; switch lock modes; configure ports; and
reset the SMX.
6 SMX System MultiMatrix Switcher • Front Panel Operation
1
I/O PLANE SELECT
INPUTS
OUTPUTS
3
Front Panel Features
Input buttons are can also be used to save and recall
global and plane presets.
4
CONTROL
ESC
ENTER PRESET VIEW
CONFIG
P
MAIN
O
W
E
I/O CARDS
R
SMX SERIES SWITCHER
6
5
