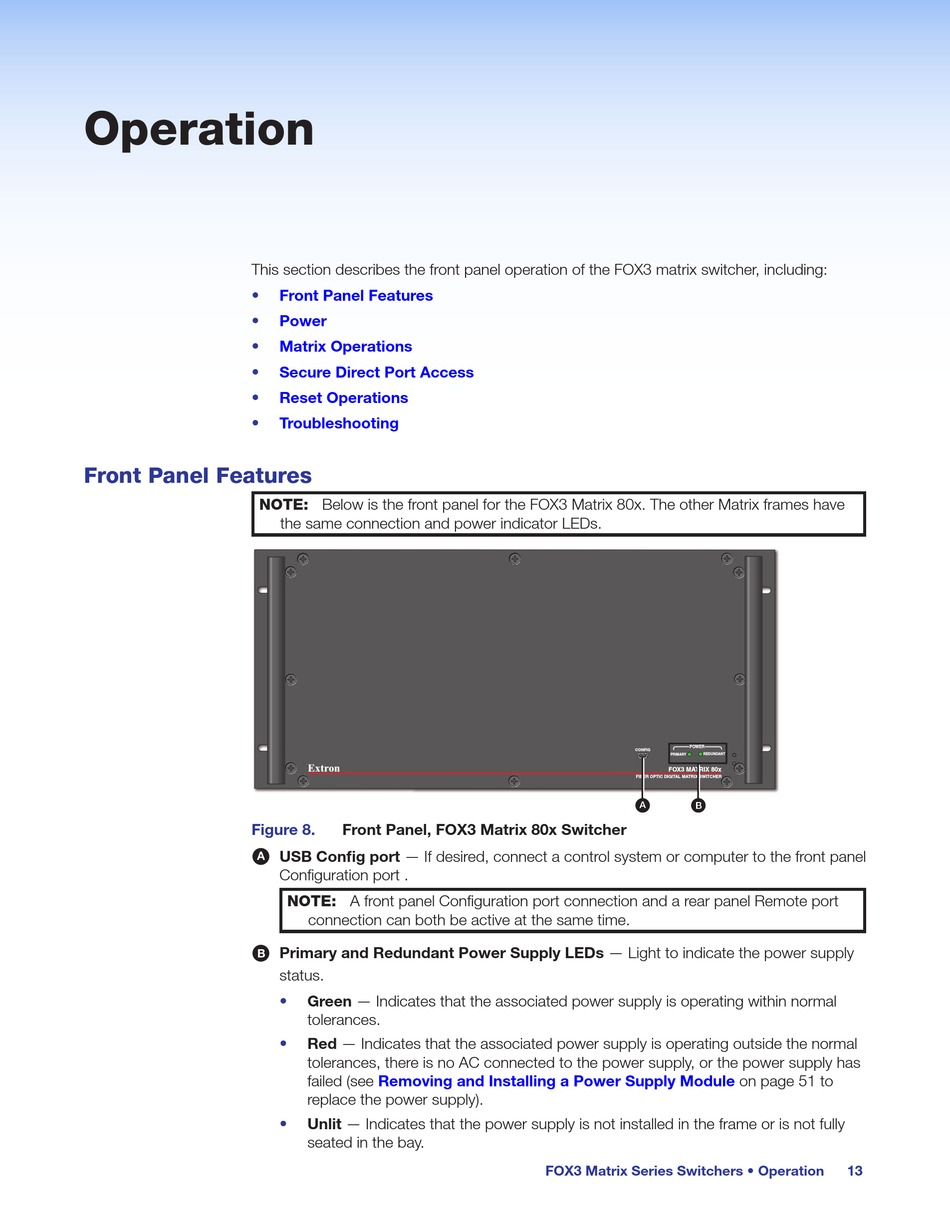

Operation

This section describes the front panel operation of the FOX3 matrix switcher, including:
•
•
•
•
•
•

Front Panel Features

NOTE: Below is the front panel for the FOX3 Matrix 80x. The other Matrix frames have
Figure 8.
A
B
Front Panel Features
Power
Matrix Operations
Secure Direct Port Access
Reset Operations
Troubleshooting
the same connection and power indicator LEDs.
Extron
Front Panel, FOX3 Matrix 80x Switcher
USB Config port — If desired, connect a control system or computer to the front panel
Configuration port .
NOTE: A front panel Configuration port connection and a rear panel Remote port
connection can both be active at the same time.
Primary and Redundant Power Supply LEDs — Light to indicate the power supply
status.
Green — Indicates that the associated power supply is operating within normal
•
tolerances.
Red — Indicates that the associated power supply is operating outside the normal
•
tolerances, there is no AC connected to the power supply, or the power supply has
Removing and Installing a Power Supply Module
failed (see
replace the power supply).
Unlit — Indicates that the power supply is not installed in the frame or is not fully
•
seated in the bay.
POWER
CONFIG
PRIMARY REDUNDANT
FOX3 MATRIX 80x
FIBER OPTIC DIGITAL MATRIX SWITCHER
A A A B B B
FOX3 Matrix Series Switchers • Operation
on page 51 to
13
