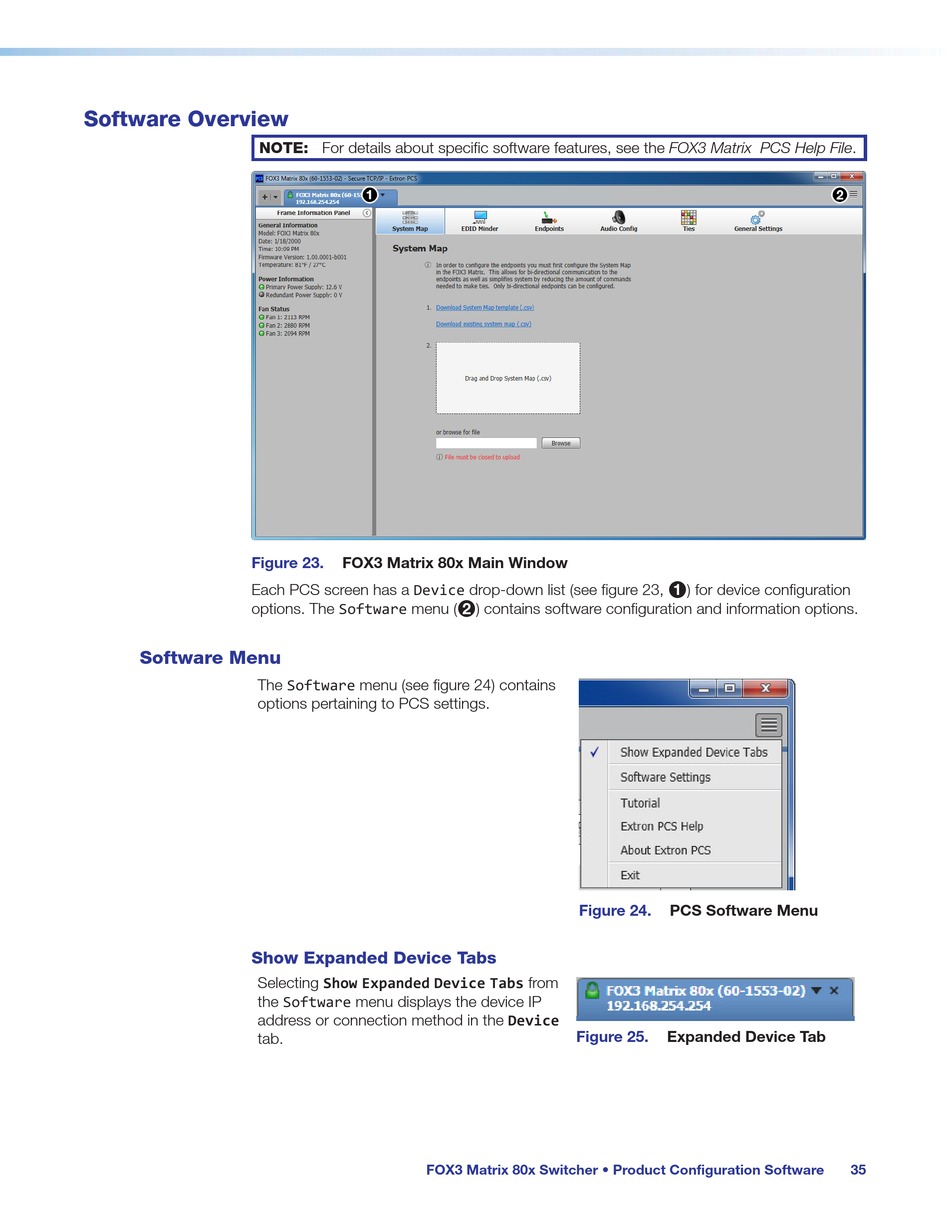

Software Overview

NOTE: For details about specific software features, see the FOX3 Matrix PCS Help File.
Figure 23.
Each PCS screen has a Device drop-down list (see figure 23,
options. The Software menu (

Software Menu

The Software menu (see figure 24) contains
options pertaining to PCS settings.
Show Expanded Device Tabs
Selecting Show Expanded Device Tabs from
the Software menu displays the device IP
address or connection method in the Device
tab.
FOX3 Matrix 80x Main Window
) contains software configuration and information options.
2
FOX3 Matrix 80x Switcher • Product Configuration Software
) for device configuration
1
Figure 24. PCS Software Menu
Figure 25. Expanded Device Tab
35
