Device Info Panel - Extron electronics FOX3 Matrix 80x User Manual

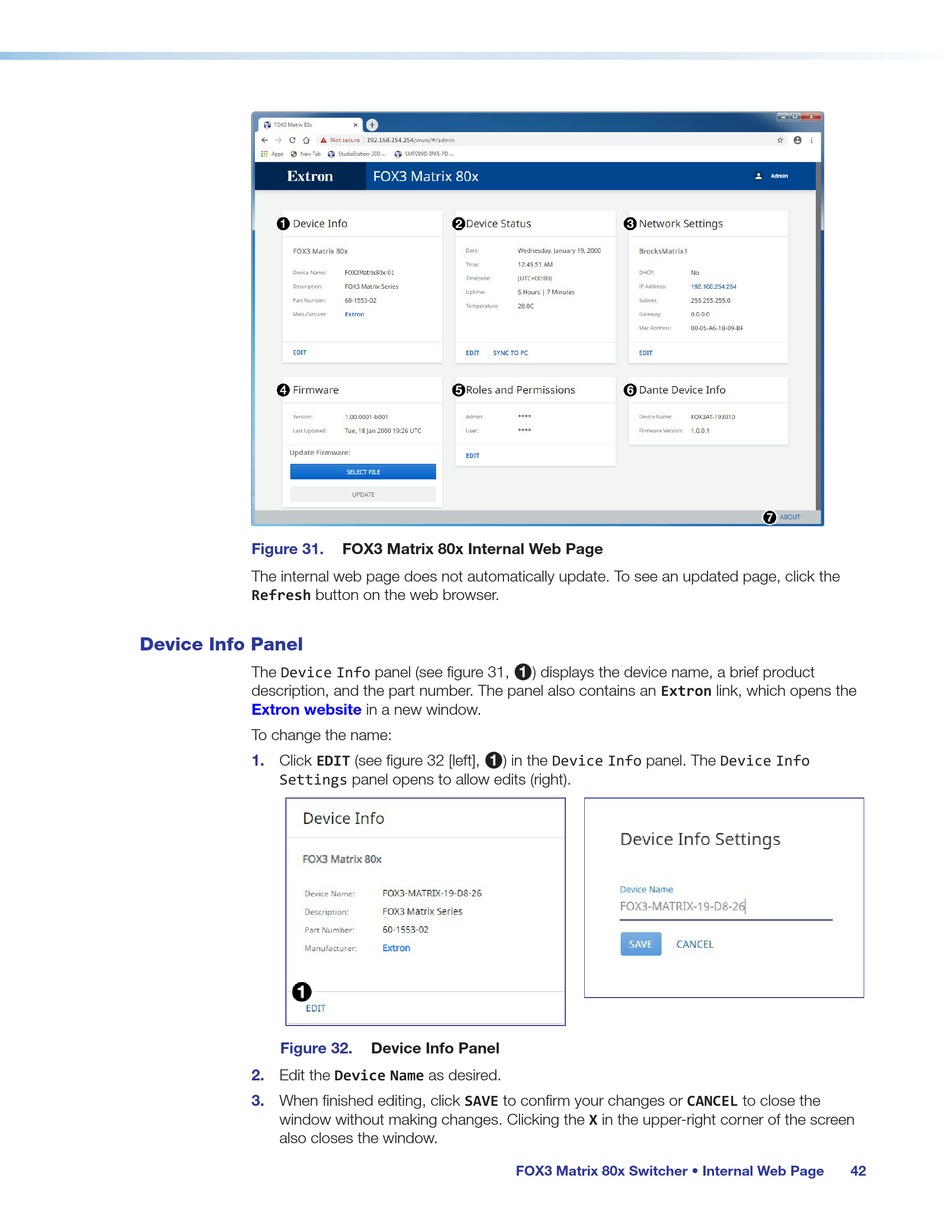

Figure 31.
The internal web page does not automatically update. To see an updated page, click the
Refresh button on the web browser.

Device Info Panel

The Device Info panel (see figure 31,
description, and the part number. The panel also contains an Extron link, which opens the
Extron website
To change the name:
1. Click EDIT (see figure 32 [left],
Settings panel opens to allow edits (right).
Figure 32.
2. Edit the Device Name as desired.
3. When finished editing, click SAVE to confirm your changes or CANCEL to close the
window without making changes. Clicking the X in the upper-right corner of the screen
also closes the window.
FOX3 Matrix 80x Internal Web Page
1
in a new window.
) in the Device Info panel. The Device Info
1
Device Info Panel
FOX3 Matrix 80x Switcher • Internal Web Page
) displays the device name, a brief product
42
