Extron electronics FOX3 Matrix 80x User Manual page 27

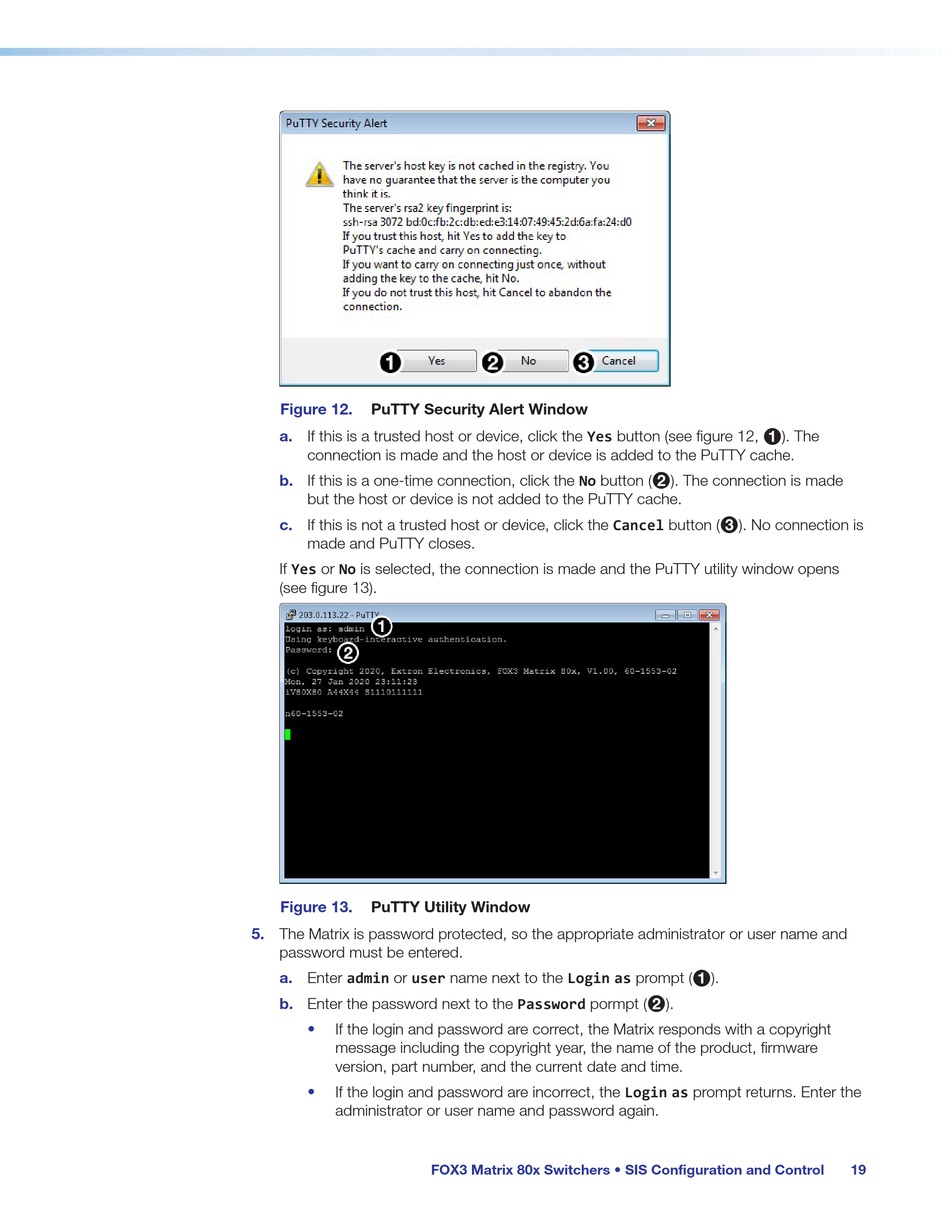

Figure 12. PuTTY Security Alert Window
a. If this is a trusted host or device, click the Yes button (see figure 12,
connection is made and the host or device is added to the PuTTY cache.
b. If this is a one-time connection, click the No button (
but the host or device is not added to the PuTTY cache.
c. If this is not a trusted host or device, click the Cancel button (
made and PuTTY closes.
If Yes or No is selected, the connection is made and the PuTTY utility window opens
(see figure 13).
Figure 13. PuTTY Utility Window
5. The Matrix is password protected, so the appropriate administrator or user name and
password must be entered.
a. Enter admin or user name next to the Login as prompt (
b. Enter the password next to the Password pormpt (
• If the login and password are correct, the Matrix responds with a copyright
message including the copyright year, the name of the product, firmware
version, part number, and the current date and time.
If the login and password are incorrect, the Login as prompt returns. Enter the
•
administrator or user name and password again.
FOX3 Matrix 80x Switchers • SIS Configuration and Control
). The
1
). The connection is made
2
). No connection is
3
).
1
).
2
19
