3700 Series Flat Panel Industrial PC

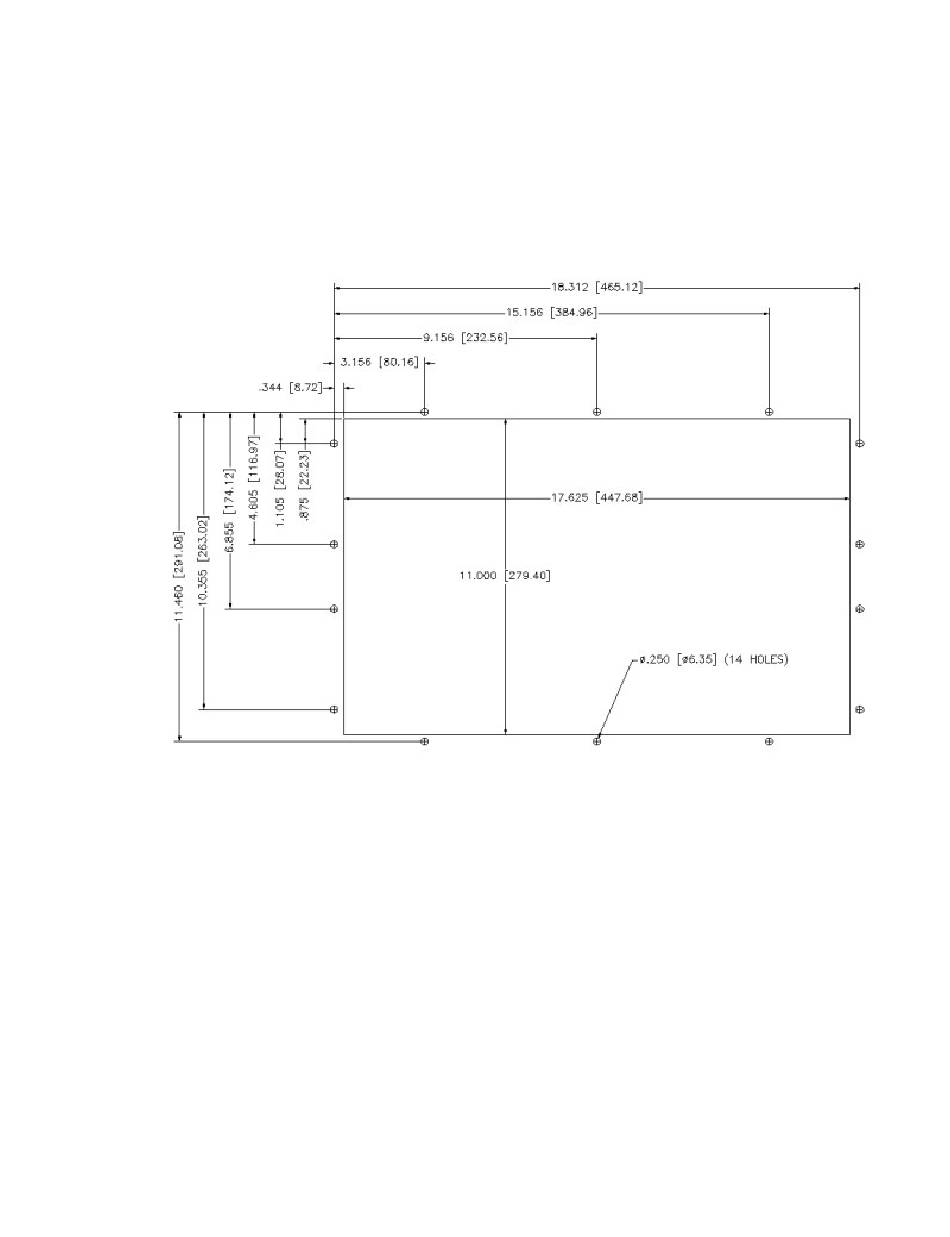

System Cutout Dimensions
Figure 2-1 shows the system cutout dimensions for the 3712KPM(T). Figure 2-2
shows the system cutout dimensions for the 3715KPM(T).
3712kpm(t)
Figure 2-1.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
3712
(
)
System Cutout Dimensions (inches [mm])
KPM
T
14
Chapter 2 – Installation
143311 (H)
