Removing the Device
To remove the device from a DIN rail, do the following:
1.
2.
3.
2.3.2

Mounting the Device to a Panel

For panel installations, the RUGGEDCOM RSG910C can be equipped with panel
adapters on the top and bottom of the chassis. The adapters allow the device to be
attached to a panel using screws.
RUGGEDCOM RSG910C
Installation Manual, 02/2020, C79000-G8976-1405-06
Insert a flathead screwdriver into the slot of the sliding release and move it
down.
DIN Rail
1
DIN Rail Adapter
2

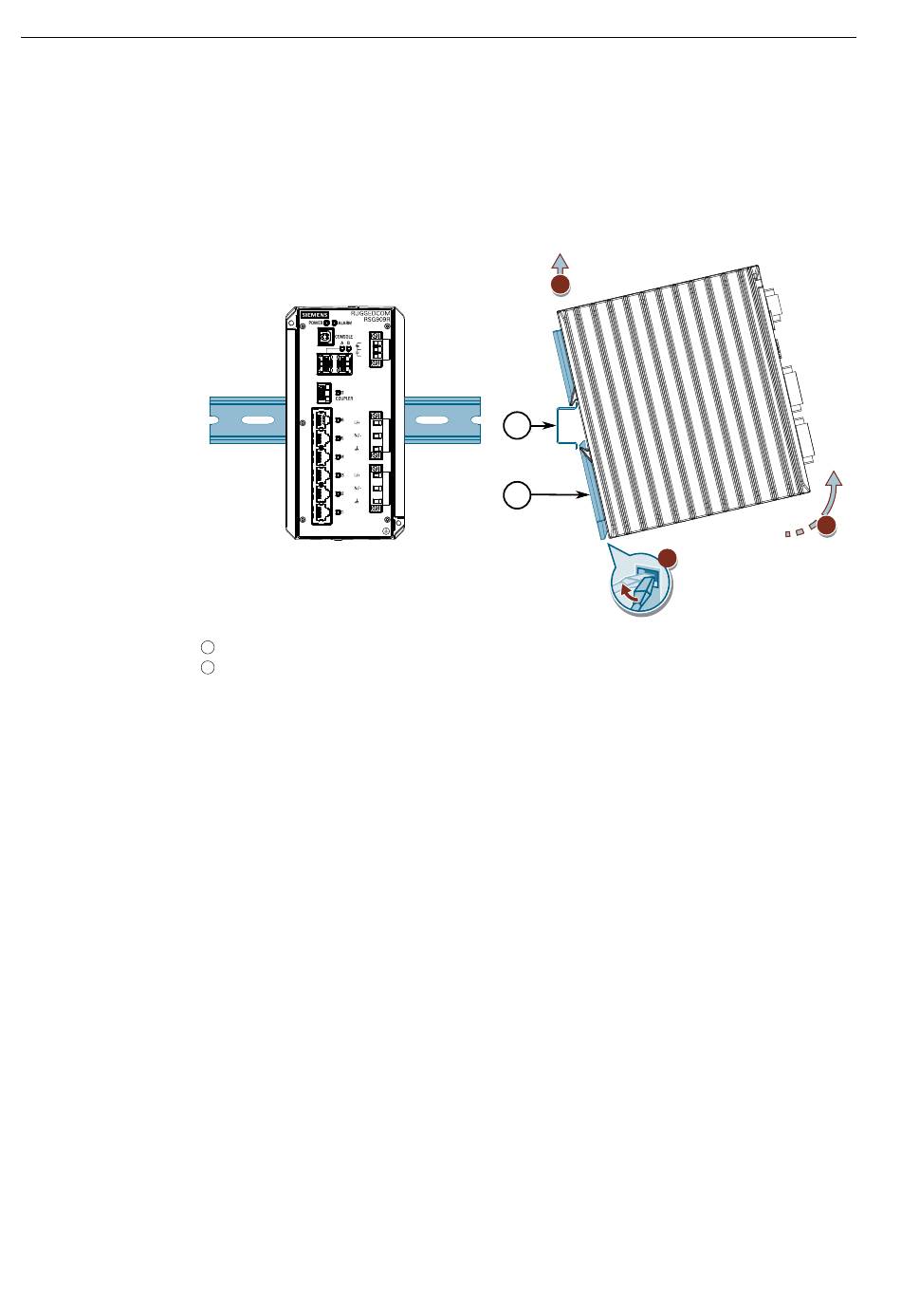

Figure 2.3
Removing the Device from a DIN Rail
Swing the bottom of the device away from the DIN rail.
Lift the device off the DIN rail.
2.3.2 Mounting the Device to a Panel
3
1
2
1
Installing the Device
2
9
