2.3.1 Mounting the Device on a DIN Rail
2.3.1
Mounting the Device on a DIN Rail
The RUGGEDCOM RSG910C can be ordered with a DIN rail adapter preinstalled on the
back of the chassis. Use the adapter to mount the device to a standard 35 mm (1.4
in) by 15 mm (0.6 in) IEC/EN 60715 or TS35 DIN rail.
Mounting the Device
To mount the device to a DIN rail, do the following:
1.
2.
3.
8
Hook the top teeth of the adapter onto the DIN rail.
Note
The adapter features a sliding release with a slot at the bottom for a flathead
screwdriver.
DIN Rail
1
DIN Rail Adapter
2

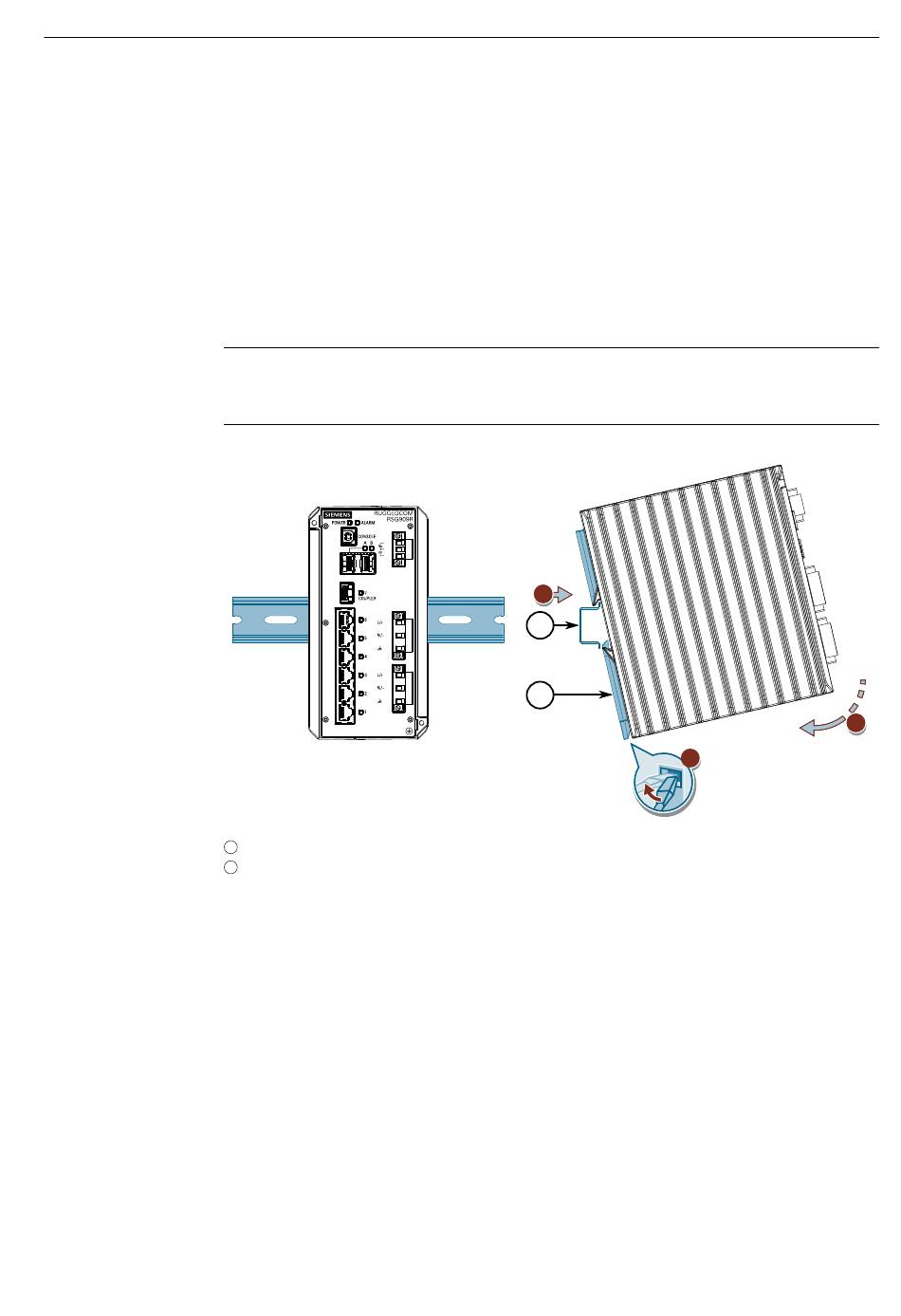

Figure 2.2
Mounting the Device to a DIN Rail
Insert a flathead screwdriver into the slot of the sliding release and move it
down.
Push the device against the bottom of the DIN rail, then let go of the sliding re-
lease to latch the device.
1
1
2
2
Installation Manual, 02/2020, C79000-G8976-1405-06
3
RUGGEDCOM RSG910C
