Siemens RUGGEDCOM RSG910C Installation Manual

Simatic net rugged ethernet switches
Hide thumbs

Advertisement

Quick Links

Installation Manual
SIMATIC NET
Rugged Ethernet Switches

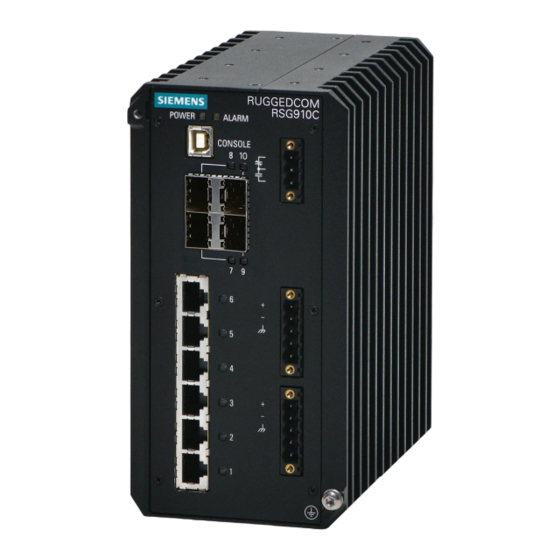

RUGGEDCOM RSG910C
Edition
02/2020
https://www.siemens.com

Advertisement

loading

  Also See for Siemens RUGGEDCOM RSG910C

  Summary of Contents for Siemens RUGGEDCOM RSG910C

  • Page 1 Installation Manual SIMATIC NET Rugged Ethernet Switches RUGGEDCOM RSG910C Edition 02/2020 https://www.siemens.com...
  • Page 2 Preface Introduction Installing the Device SIMATIC NET Device Management Rugged Ethernet Switches RUGGEDCOM RSG910C Communication Ports Technical Specifications Installation Manual Certification 02/2020 C79000-G8976-1405-06...
  • Page 3 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommend- ed or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.
  • Page 4: Table Of Contents

    Accessing Documentation ....................... v Disclaimer of Liability ......................v Registered Trademarks ......................v Training ..........................vi Customer Support ........................vi Contacting Siemens ....................... vii Introduction ........................... 1 Feature Highlights ....................1 Description ......................2 Required Tools and Materials ................. 3 Decommissioning and Disposal ................
  • Page 5 FCC ........................34 6.1.5 FDA/CDRH ......................34 6.1.6 ISED ........................34 6.1.7 TÜV SÜD ......................34 6.1.8 RRA ........................35 6.1.9 RoHS ........................35 6.1.10 Other Approvals ....................35 EMC and Environmental Type Tests ..............36 RUGGEDCOM RSG910C Installation Manual, 02/2020, C79000-G8976-1405-06...
  • Page 6: Preface

    However, deviations between the product and the documentation may exist. Siemens shall not be liable for any errors or omissions contained herein or for conse- quential damages in connection with the furnishing, performance, or use of this ma- terial.
  • Page 7: Training

    Siemens Sales representative. Customer Support Customer support is available 24 hours, 7 days a week for all Siemens customers. For technical support or general information, contact Siemens Customer Support through any of the following methods: Online Visit http://www.siemens.com/automation/support-request...
  • Page 8: Contacting Siemens

    Contacting Siemens Address Siemens AG Industry Sector 300 Applewood Crescent Concord, Ontario Canada, L4K 5C7 Telephone Toll-free: 1 888 264 0006 Tel: +1 905 856 5288 Fax: +1 905 856 1995 E-Mail ruggedcom.info.i-ia@siemens.com https://www.siemens.com RUGGEDCOM RSG910C Installation Manual, 02/2020, C79000-G8976-1405-06...
  • Page 9 Preface Contacting Siemens viii RUGGEDCOM RSG910C Installation Manual, 02/2020, C79000-G8976-1405-06...
  • Page 10: Introduction

    -40 to 85 °C (-40 to 185 °F) extended operating temperature range. • Compact Design The small form factor of the RUGGEDCOM RSG910C allows for installation in space-limited cabinets and on DIN rails. • Dual Input Power The device features dual power inputs to support redundant AC or DC power sources.
  • Page 11: Description

    Terminal blocks for reliable maintenance free connections • CSA/UL 60950-1 safety approved to 85 °C (185 °F) Description The RUGGEDCOM RSG910C features various ports, controls and indicator LEDs on the front panel for connecting, configuring and troubleshooting the device. POWER LED ALARM LED...
  • Page 12: Required Tools And Materials

    For information about grounding the device, refer to "Con- necting Power (Page 13)". Required Tools and Materials The following tools and materials are required to install the RUGGEDCOM RSG910C: Tools/Materials Purpose AC power cord (16 AWG) For connecting power to the device.
  • Page 13 For environmentally friendly recycling and disposal of this device and related acces- sories, contact a facility certified to dispose of waste electrical and electronic equip- ment. Recycling and disposal must be done in accordance with local regulations. RUGGEDCOM RSG910C Installation Manual, 02/2020, C79000-G8976-1405-06...
  • Page 14: Installing The Device

    This product contains no user-serviceable parts. Attempted service by unauthorized personnel shall render all warranties null and void. Changes or modifications not expressly approved by Siemens AG could invalidate specifications, test results, and agency approvals, and void the user's authority to operate the equipment.
  • Page 15: Installing The Device In Hazardous Locations

    If any item is missing or damaged, contact Siemens for assistance. Installing the Device in Hazardous Locations The RUGGEDCOM RSG910C is designed to comply with the safety standards for Class I, Division 2, Zone 2 hazardous locations where concentrations of flammable gases, vapors or liquids may be present, as opposed to normal operating environments.
  • Page 16: Mounting The Device

    IMPORTANT Le remplacement de composants pourrait compromettre l'admissibilité à la Classe I, Division 2. Sample Hazardous Location Label The following is an example of the RUGGEDCOM RSG910C hazardous location label: Figure 2.1 Compliance Label (Example) Mounting the Device The RUGGEDCOM RSG910C is designed for maximum mounting and display flexibili- ty.
  • Page 17: 2.3.1 Mounting The Device On A Din Rail

    2.3.1 Mounting the Device on a DIN Rail The RUGGEDCOM RSG910C can be ordered with a DIN rail adapter preinstalled on the back of the chassis. Use the adapter to mount the device to a standard 35 mm (1.4 in) by 15 mm (0.6 in) IEC/EN 60715 or TS35 DIN rail.
  • Page 18: Mounting The Device To A Panel

    2.3.2 Mounting the Device to a Panel For panel installations, the RUGGEDCOM RSG910C can be equipped with panel adapters on the top and bottom of the chassis. The adapters allow the device to be attached to a panel using screws.
  • Page 19 Secure the mounting adapters to the top and bottom of the device using the four M4 screws each included with the device. Screw (M4) Panel Mount Adapter Figure 2.4 Panel Mount Adapter Assembly Prepare mounting holes in the panel where the device is to be installed. RUGGEDCOM RSG910C Installation Manual, 02/2020, C79000-G8976-1405-06...
  • Page 20: Connecting The Failsafe Alarm Relay

    Control of the failsafe relay output is configurable through RUGGEDCOM RSG910C . One common application for this relay is to signal an alarm if a power failure oc- curs. For more information, refer to the RUGGEDCOM RSG910C User Guide for the RUGGEDCOM RSG910C.
  • Page 21 Insert the failsafe alarm relay terminal block into the device and tighten the screws. Figure 2.6 Assembling the Failsafe Alarm Relay Terminal Block Connect a failsafe device to the terminal block. Failsafe Alarm Relay Terminal Block Normally Open Common Normally Closed Figure 2.7 Failsafe Alarm Relay Wiring RUGGEDCOM RSG910C Installation Manual, 02/2020, C79000-G8976-1405-06...
  • Page 22: Connecting Power

    Installing the Device 2.5 Connecting Power Connecting Power The RUGGEDCOM RSG910C features two input terminals that allow the device to be powered by: • Up to one independent AC and one independent DC power source • Two independent DC power sources IMPORTANT •...
  • Page 23 Connect the Positive wire to the Positive Terminal positive (+) terminal on the termi- Figure 2.9 Terminal Block Wiring nal block. Connect the Negative wire to the negative (-) terminal on the termi- nal block. RUGGEDCOM RSG910C Installation Manual, 02/2020, C79000-G8976-1405-06...
  • Page 24: 2.5.2 Wiring Examples

    M4 Screw M4 Ring Lug Figure 2.10 Chassis Ground Connection Connect the power cable to the power source. 2.5.2 Wiring Examples The following illustrate how to connect single and dual power supplies to the device. RUGGEDCOM RSG910C Installation Manual, 02/2020, C79000-G8976-1405-06...
  • Page 25 Installing the Device 2.5.2 Wiring Examples HI Power Supply Configurations   Figure 2.11 Single High AC Power Input Figure 2.12 Single High DC Power Input Configuration Configuration RUGGEDCOM RSG910C Installation Manual, 02/2020, C79000-G8976-1405-06...
  • Page 26 Installing the Device 2.5.2 Wiring Examples   Figure 2.13 Dual High AC and DC Power Figure 2.14 Dual High DC Power Supplies Supplies RUGGEDCOM RSG910C Installation Manual, 02/2020, C79000-G8976-1405-06...
  • Page 27 Installing the Device 2.5.2 Wiring Examples LO Power Supply Configurations   Figure 2.15 Single Low DC Power Input Figure 2.16 Dual Low DC Power Input Configuration Configuration RUGGEDCOM RSG910C Installation Manual, 02/2020, C79000-G8976-1405-06...
  • Page 28: Device Management

    For Microsoft Windows users, the RUGGEDCOM USB Serial Console driver must be installed on the users workstation before connecting via the USB Type-B console port. For more information, refer to the RUGGEDCOM RSG910C User Guide for the RUGGEDCOM RSG910C. Use the following settings to connect to the port:...
  • Page 29: Configuring The Device

    Ethernet Ports Connect any of the available Ethernet ports on the device to a management switch and access the RUGGEDCOM RSG910C console and Web interfaces via the device's IP address. The factory default IP address for the RUGGEDCOM RSG910C is https://- 192.168.0.1.
  • Page 30: Communication Ports

    Communication Ports The RUGGEDCOM RSG910C can be equipped with various types of communication ports to enhance its abilities and performance. Ports 7 to 10 Ports 1 to 6 Figure 4.1 Port Assignment Port Type 7 to 10 SFP Transceiver (1000Base-SX/LX) 1 to 6...
  • Page 31 Transmit Data- or Bi- Directional Reserved BI_DC+ Bi-Direction- (Do Not Connect) Reserved BI_DC- Bi-Direction- (Do Not Connect) Specifications For specifications on the available copper Ethernet ports, refer to "Copper Ethernet Port Specifications (Page 27)". RUGGEDCOM RSG910C Installation Manual, 02/2020, C79000-G8976-1405-06...
  • Page 32: Sfp Transceivers

    Communication Ports 4.2 SFP Transceivers SFP Transceivers The RUGGEDCOM RSG910C supports up to four Small Form-Factor Pluggable (SFP) transceiver sockets, which are compatible with a wide array of SFP transceivers avail- able from Siemens. LEDs Each socket features an LED that indicates its link state.
  • Page 33 Communication Ports 4.2 SFP Transceivers RUGGEDCOM RSG910C Installation Manual, 02/2020, C79000-G8976-1405-06...
  • Page 34: Technical Specifications

    88 VDC 300 VDC 125 VDC, 3.15 A 5 kVDC 15.3 W 250 VDC 85 VAC 264 VAC 110 VAC, 3.15 A 5 kVDC 15.5 W 220 VAC Current consumption may vary based on configuration. RUGGEDCOM RSG910C Installation Manual, 02/2020, C79000-G8976-1405-06...
  • Page 35: Failsafe Alarm Relay Specifications

    10Base-T ü IEEE 802.3ab     1000Base-Tx ü IEEE 802.3ad     Link Aggregation ü IEEE 802.3u     100Base-TX ü IEEE 802.3x Flow Control ü ü ü IEEE 802.3z     1000Base-LX ü RUGGEDCOM RSG910C Installation Manual, 02/2020, C79000-G8976-1405-06...
  • Page 36: Copper Ethernet Port Specifications

    Auto-crossover and auto-polarity. Typical distance. Dependent on the number of connectors and splices. RMS 1 minute. Operating Environment The RUGGEDCOM RSG910C is rated to operate under the following environmental conditions. Ambient Operating Tempera- -40 to 85 °C (-40 to 185 °F)
  • Page 37: Mechanical Specifications

    Technical Specifications 5.6 Mechanical Specifications Mechanical Specifications Weight 2.4 kg (5.3 lbs) Ingress Protection IP40 Enclosure Die Cast Aluminum Dimension Drawings Note All dimensions are in millimeters, unless otherwise stated. 162.72 Figure 5.1 Overall Dimensions RUGGEDCOM RSG910C Installation Manual, 02/2020, C79000-G8976-1405-06...
  • Page 38 Technical Specifications 5.7 Dimension Drawings 38.1 163.12 Figure 5.2 Panel Mount Dimensions 162.72 Figure 5.3 DIN Rail Mount Dimensions RUGGEDCOM RSG910C Installation Manual, 02/2020, C79000-G8976-1405-06...
  • Page 39 Technical Specifications 5.7 Dimension Drawings RUGGEDCOM RSG910C Installation Manual, 02/2020, C79000-G8976-1405-06...
  • Page 40: Certification

    Certification The RUGGEDCOM RSG910C device has been thoroughly tested to guarantee its con- formance with recognized standards and has received approval from recognized reg- ulatory agencies. Approvals This section details the standards to which the RUGGEDCOM RSG910C complies. 6.1.1 This device meets the requirements of the following Canadian and U.S. standards un- der certificate CSA 18CA70171440: •...
  • Page 41: 6.1.2 Csa/Sira

    When marked with the following ATEX marking, this device is approved for use in Zone 2 hazardous locations under certificate Sira 18ATEX4069X. Note For the maximum ambient temperature, refer to the hazardous location label affixed to the device. II 3 G Ex nA nC IIC T4 Gc RUGGEDCOM RSG910C Installation Manual, 02/2020, C79000-G8976-1405-06...
  • Page 42: European Union (Eu)

    Electromagnetic compatibility of multimedia equipment – Emission requirements The device is marked with a CE marking and can be used throughout the European community. A copy of the CE Declaration of Conformity is available from Siemens AG. For contact information, refer to "Contacting Siemens (Page vii)".
  • Page 43: 6.1.4 Fcc

    Title 21 Code of Federal Regulations (CFR) – Chapter I – Sub-chapter J – Radiolog- ical Health 6.1.6 ISED This device is declared by Siemens AG to meet the requirements of the following ISED (Innovation Science and Economic Development Canada) standard: • CAN ICES-3 (A)/NMB-3 (A) 6.1.7...
  • Page 44: Rra

    Republic of Korea (South Korea) as a Class A product in a commercial, industrial or business environment. R-REM-S14-RSG910C A copy of the KC Declaration of Conformity is available from Siemens AG. For contact information, refer to "Contacting Siemens (Page vii)".
  • Page 45: Emc And Environmental Type Tests

    Railway applications – Electromagnetic Compatibility – Rolling Stock Apparatus • EN 50155 Railway applications – Rolling stock – Electronic equipment EMC and Environmental Type Tests The RUGGEDCOM RSG910C has passed the following Electromagnetic Compatibility (EMC) and environmental tests. EMC Type Tests Test Description...
  • Page 46 EMC Immunity Type Tests per IEEE 1613 Note The RUGGEDCOM RSG910C meets Class 2 requirements for an all-fiber configuration and Class 1 requirements for copper ports. Class 1 allows for temporary communica- tion loss, while Class 2 requires error-free and interrupted communications.
  • Page 47 Class 2 IEC 60255-21-2 Shock 30 g @ 11 ms Class 2 IEC 60255-21-2 Bump 10 g @ 16 ms Class 1 IEC 60255-21-3 Seismic Method A Class 2 IEC 60529 Ingress Protection IP4x   RUGGEDCOM RSG910C Installation Manual, 02/2020, C79000-G8976-1405-06...
  • Page 48 Further Information Siemens RUGGEDCOM https://www.siemens.com/ruggedcom Industry Online Support (service and support) https://support.industry.siemens.com Industry Mall https://mall.industry.siemens.com Siemens AG Digital Industry Process Automation Postfach 48 48 90026 NÜRNBERG GERMANY...
