Installing the Device
2.4 Connecting the Failsafe Alarm Relay
To connect the failsafe alarm relay, do the following:
1.
2.
12
Insert the failsafe alarm relay terminal block into the device and tighten the
screws.

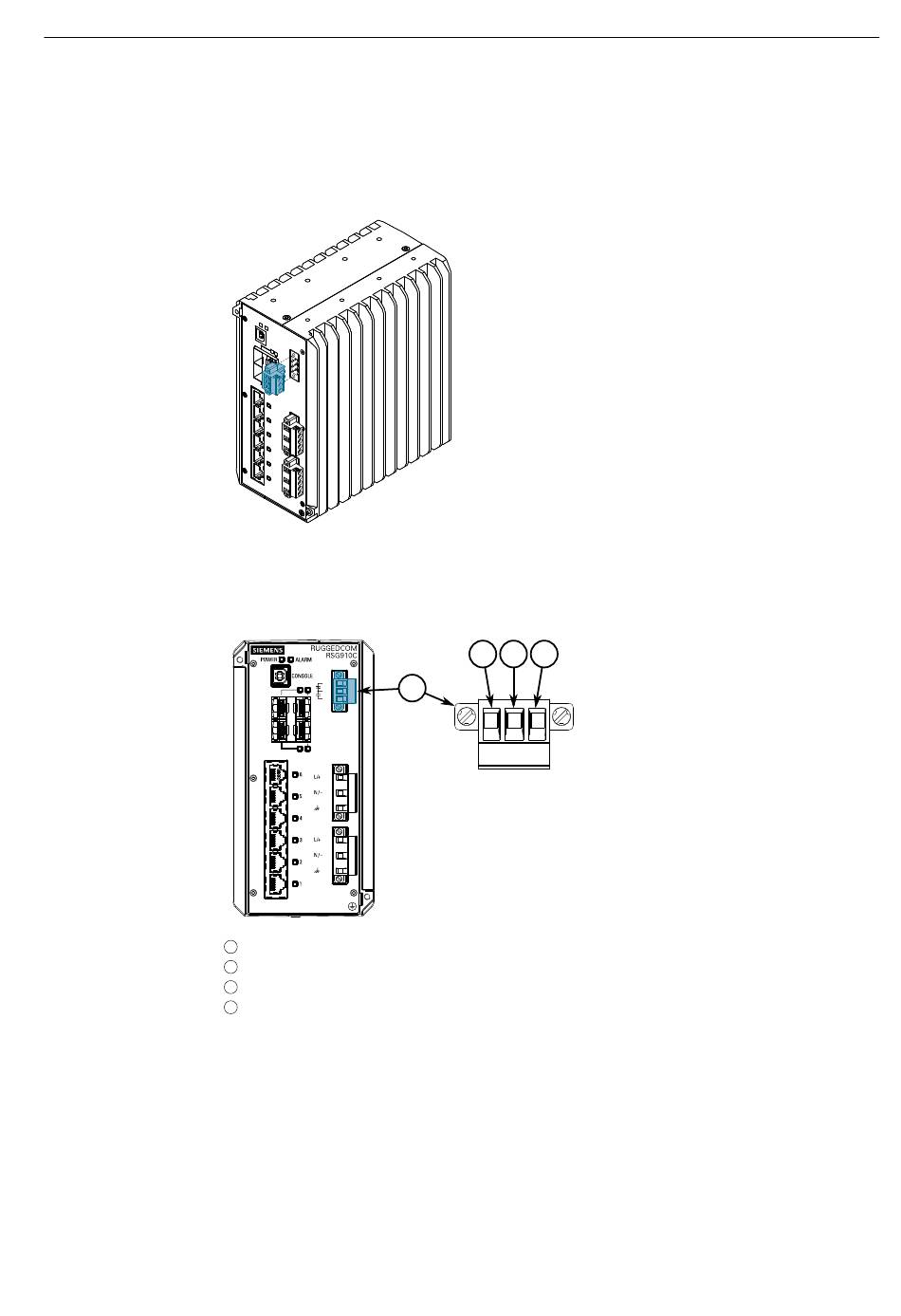

Figure 2.6
Assembling the Failsafe Alarm Relay Terminal Block
Connect a failsafe device to the terminal block.
8
10
7 9
Failsafe Alarm Relay Terminal Block
1
Normally Open
2
Common
3
Normally Closed
4
Figure 2.7
Failsafe Alarm Relay Wiring
2
3
4
1
RUGGEDCOM RSG910C
Installation Manual, 02/2020, C79000-G8976-1405-06
