RUGGEDCOM RMC41
Installation Guide
Section 2.3.1
Mounting the Device on a DIN Rail
For DIN rail installations, the RMC41 can be equipped with a DIN rail bracket pre-installed on the back of the
chassis. The bracket allows the device to be slid onto a standard 35 mm (1.4 in) DIN rail.
To mount the device to a DIN rail, do the following:
1.
Align the slot in the bracket with the DIN rail.

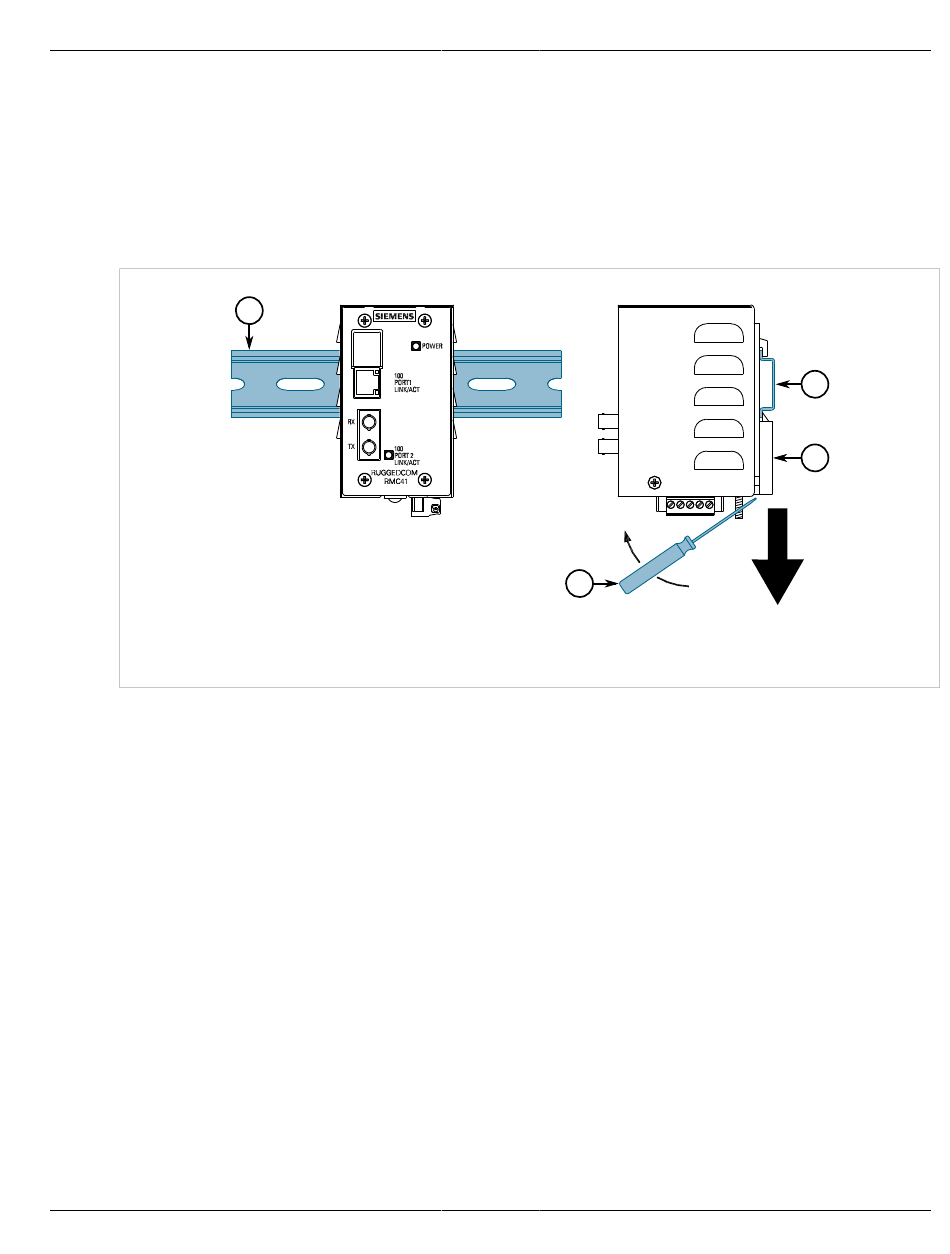

Figure 2: DIN Rail Mounting
1. DIN Rail 2. DIN Rail Bracket 3. Screw Driver
2.
Pull the release on the bracket down and slide the device onto the DIN rail. If necessary, use a screw driver to
unlock the release. Let go of the release to lock the device in position.
Section 2.3.2
Mounting the Device to a Panel
To mount the device to a panel, do the following:
1.
Disassemble the device and panel adapter.
a.
Remove the screw at the bottom of the adapter.
b.
Pull the device out of the adapter.
Mounting the Device on a DIN Rail
1
3
Chapter 2
Installing the Device
1
2
7
