Communication Ports

The RUGGEDCOM RSG910C can be equipped with various types of communication
ports to enhance its abilities and performance.
1
2
1
2

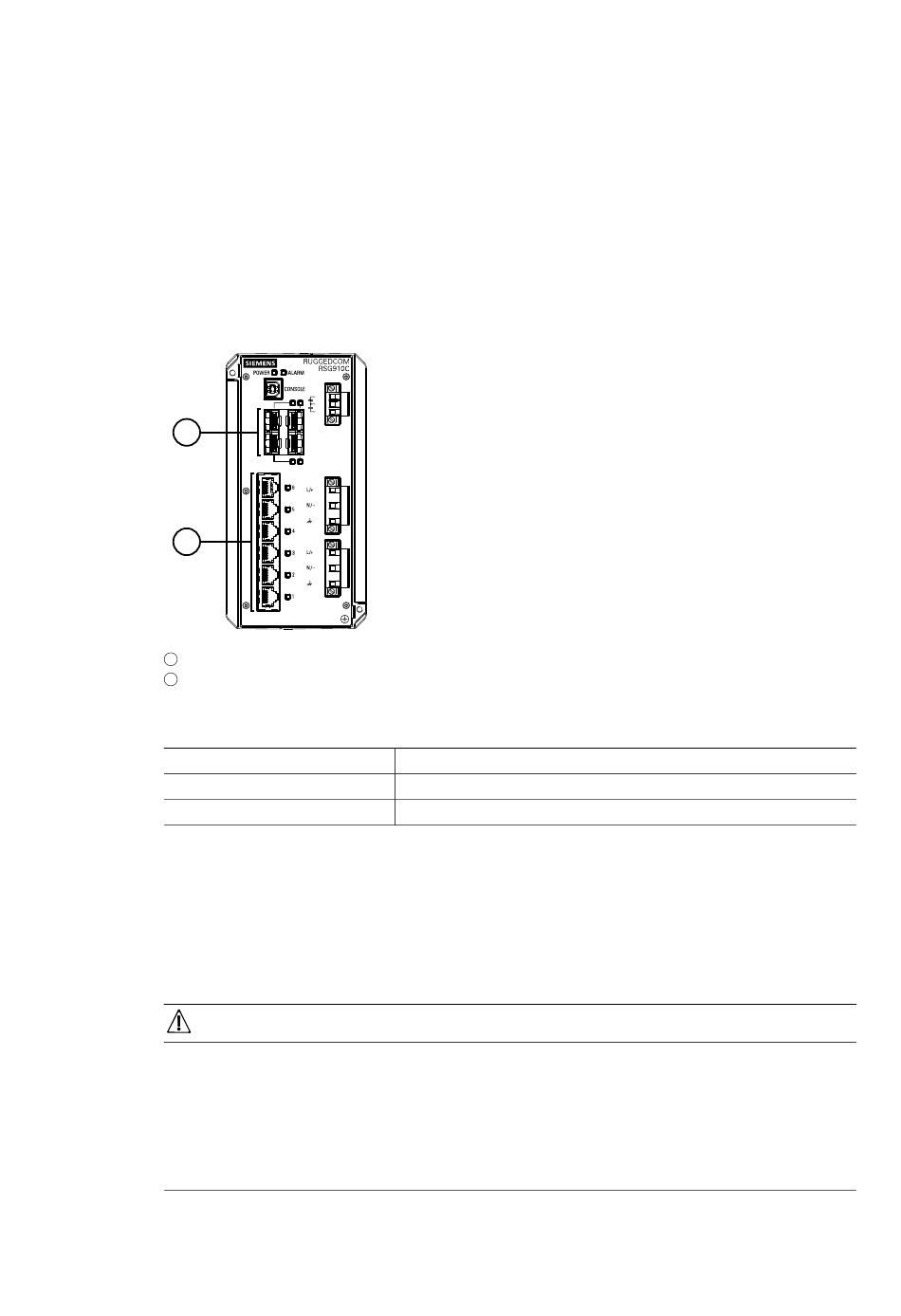

Figure 4.1
4.1

Copper Ethernet Ports

The RUGGEDCOM RSG910C supports multiple 10/100/1000Base-TX Ethernet ports
that allow connection to standard Category 5 (CAT-5) shielded twisted-pair cables
with RJ45 male connectors.
Electric shock hazard – risk of serious personal injury and/or equipment inter-
ference
When shielded cables are used, make sure the shielded cables do not form a ground
loop via the shield wire and the RJ45 receptacles at either end. Ground loops can
cause excessive noise and interference, but more importantly, create a potential
shock hazard that can result in serious injury.
RUGGEDCOM RSG910C
Installation Manual, 02/2020, C79000-G8976-1405-06
8
10
7 9
Ports 7 to 10
Ports 1 to 6
Port Assignment
Port
7 to 10
1 to 6
WARNING
SFP Transceiver (1000Base-SX/LX)
Copper (10/100/1000Base-TX) Ethernet Ports
Type
4
21
