Status Loop (continued):

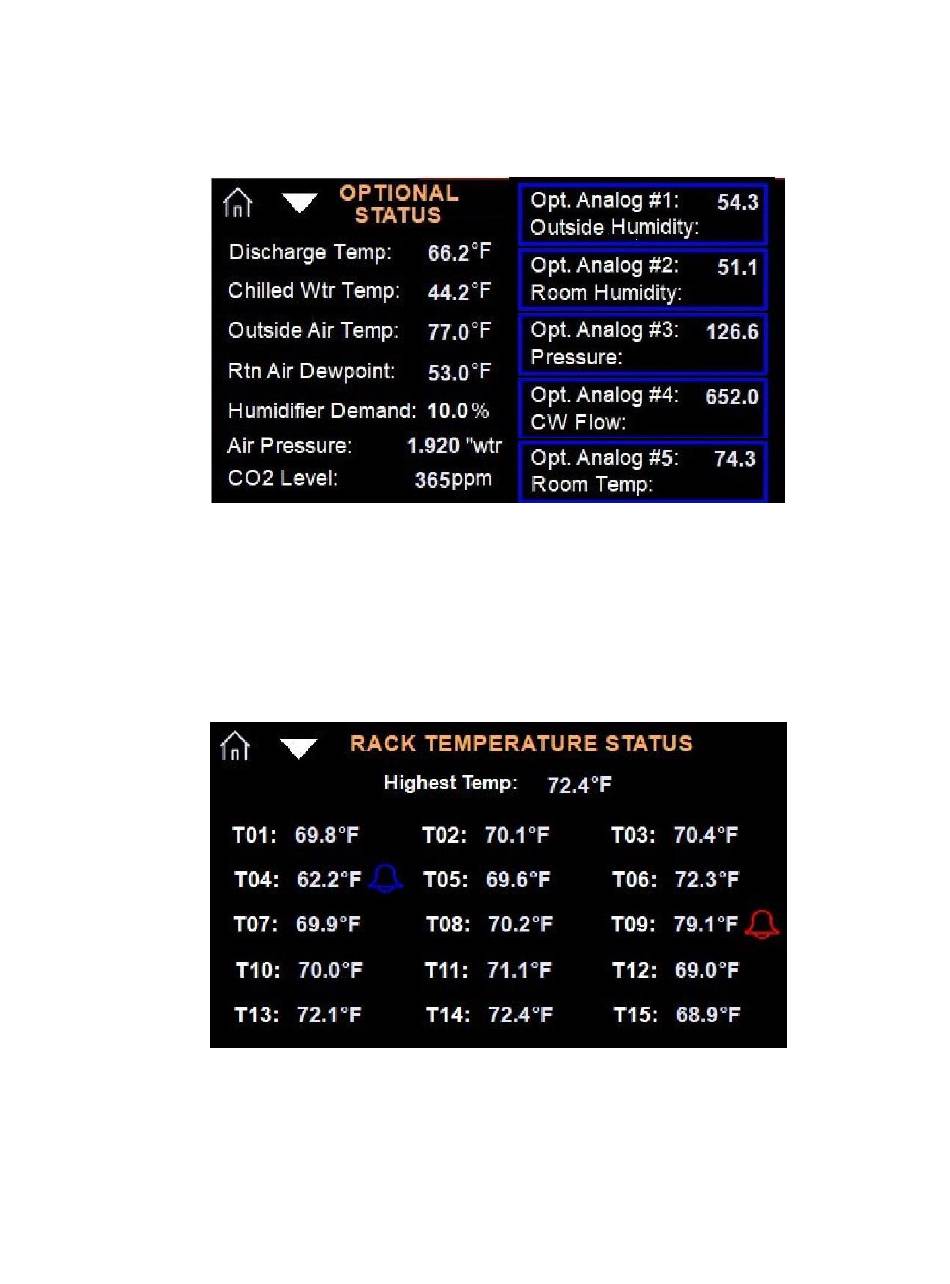

The next screen in the status loop is
of optional inputs of the unit. (Note: this screen does not appear if no optional
inputs are used).
The next screen in the status loop is
displays the status of all optional rack sensor. (Note: this screen does not appear if
rack sense 32 is not used). The highest or average (depending on selection) is
shown on the top line, followed by individual sensor readings.
Sensors that are in a Low Temperature alarm have a blue colored bell next to it
(like T04) . Sensors that are in a High Temperature alarm have a red colored bell
next to it (like T09). Sensors T16 to T32 (if used) appear on the next Rack
Temperature screen.
the Optional screen, which displays the status
the Rack Temperature Status screen, which
