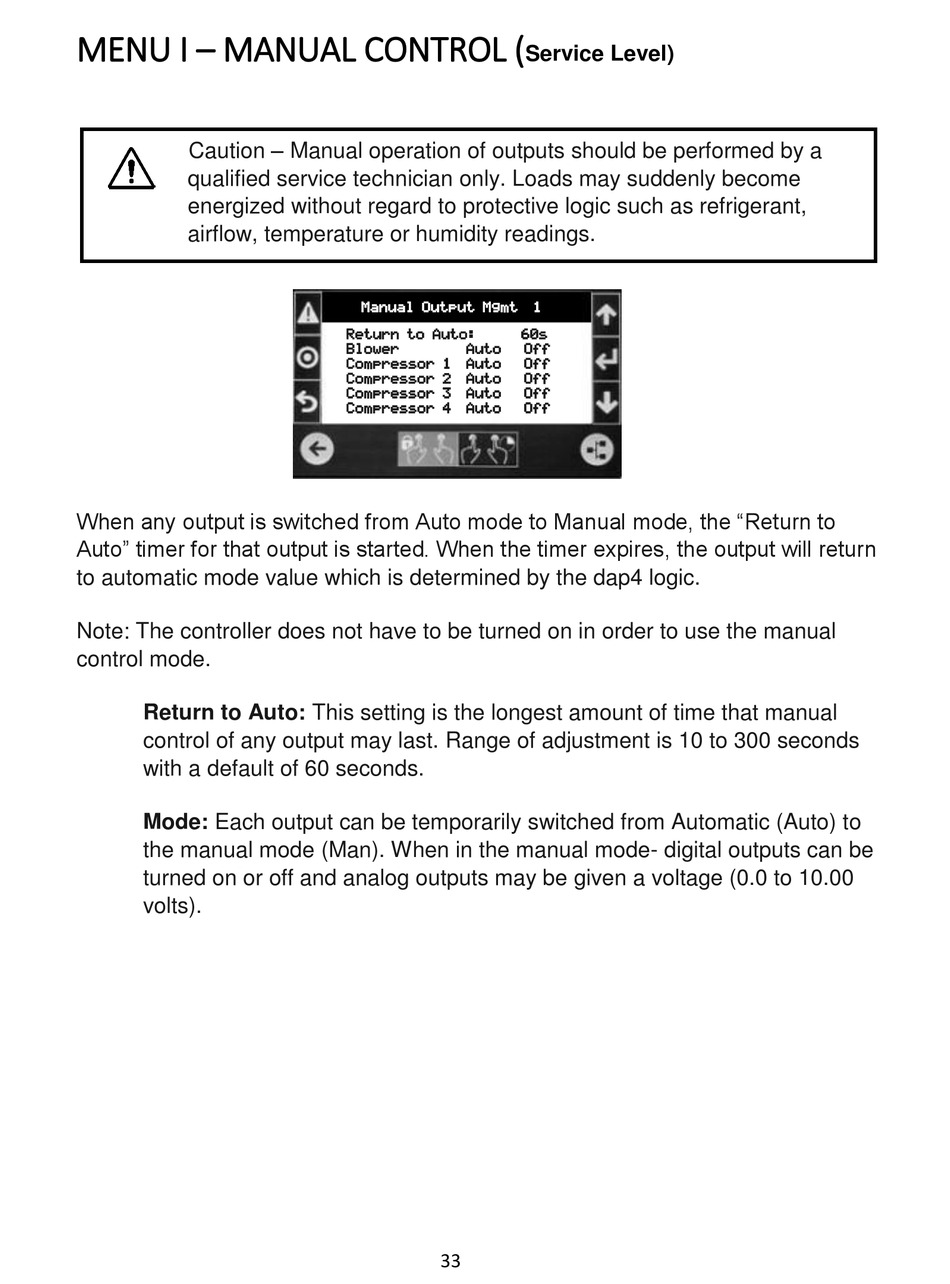

MENU I – MANUAL CONTROL (
Caution – Manual operation of outputs should be performed by a
qualified service technician only. Loads may suddenly become
energized without regard to protective logic such as refrigerant,
airflow, temperature or humidity readings.
When any output is switched from Auto mode to Manual mode, the "Return to
Auto" timer for that output is started. When the timer expires, the output will return
to automatic mode value which is determined by the dap4 logic.
Note: The controller does not have to be turned on in order to use the manual
control mode.
Return to Auto: This setting is the longest amount of time that manual
control of any output may last. Range of adjustment is 10 to 300 seconds
with a default of 60 seconds.
Mode: Each output can be temporarily switched from Automatic (Auto) to
the manual mode (Man). When in the manual mode- digital outputs can be
turned on or off and analog outputs may be given a voltage (0.0 to 10.00
volts).
Service Level)


     
  
  
  
  
33
