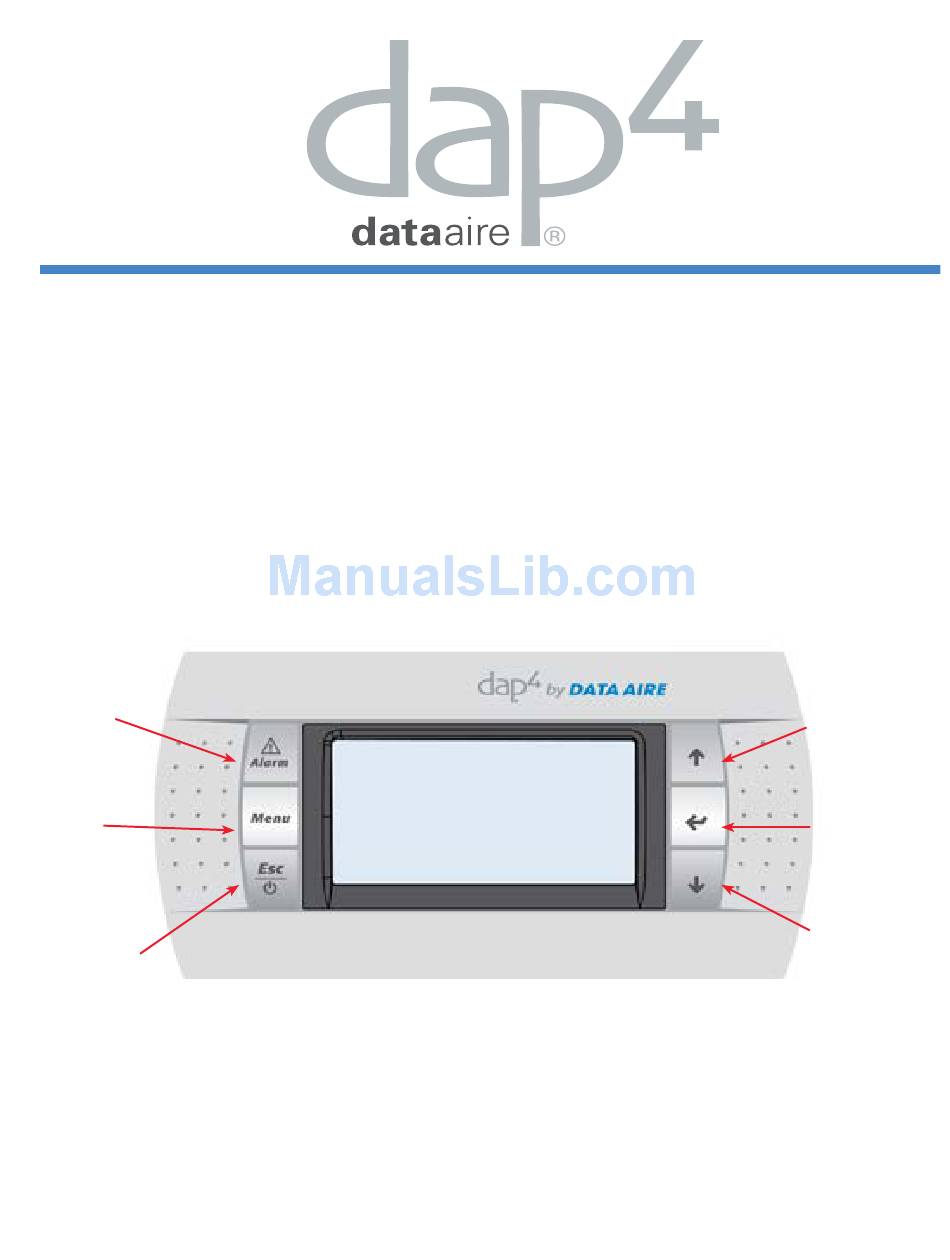

The dap4 consists of two main components: the control module and the display panel. The control module is located
in the electrical panel. The display panel is remotely mounted to one of the outer front doors. The two are connected
by special telephone type cable* harness (units may be ordered with longer cables for optional remote wall mount-
ing). All data displayed on the display screen originates from the control module. The display panel has a backlit LCD
(liquid crystal display). There are six keys on the face of the display panel to retrieve or enter settings.
Display
Alarm
Enter
Menu
Return to
previous
screen or
hold to turn
On or Off
* Note: If used, regular telephone cable will not operate. Factory cable is required.
by

Quick Start

Display Module
Up
Enter/Select
Down

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the dap4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Data Aire dap4

  • Page 1: Quick Start

    Quick Start The dap4 consists of two main components: the control module and the display panel. The control module is located in the electrical panel. The display panel is remotely mounted to one of the outer front doors. The two are connected by special telephone type cable* harness (units may be ordered with longer cables for optional remote wall mount- ing).
  • Page 2: Button Functions

    Button Functions Allows viewing of active alarms Alarm Silences audible alarms Resets active alarms Menu Allows entry to Main Menu Return to previous screen Hold to turn ON or OFF Up Arrow Allows scrolling to next screen Allows values changes (increase) Enter Arrow Allows entry to menus Advances cursor...
  • Page 3: Changing The Service Level Password

    Service Password will be available. Use the UP or DOWN keys to scroll through the available Menus. Note: Factory Level Menus are for configuring the unit. The dap4 controller is used for a variety of equipment types. The controller is based on the unit type, unit components and options. Under normal circumstances these menus should not be changed.
  • Page 4: Menu B - Setpoints

    Enter Menu A by pressing the MENU key. Use the UP or DOWN key to scroll through the menus. Press the UP or DOWN key until “A. On/Off” (factory setting) appears and is highlighted. Press the ENTER key. The following will appear on the display screen: On/Off Unit Start-up Delay: Start-up Mode:...
  • Page 5: Factory Settings

    Requires service level password for programming Menu D – Input/Output This is a view only menu. The values are factory set and only if instructed by Data Aire engineering or service person- nel should these be changed. Requires service level password for viewing Menu E –...
  • Page 6: Menu F - Information

    Menu J is for setting the control to the type equipment and options ordered. This includes compressor type and quan- tity, blower type, blower running speed or mode, chilled water valve type, Energy Saver, humidifier, reheat and other additional features. This requires the Factory Level password and entry should be limited to Data Aire factory and service personnel.
  • Page 7 Manual Override Switches For testing and during start-up each Data Aire gForce unit is provided with manual override slide switches. There are seven slide switches. One for each of the following functions: • Water Valve • Fan Speed • Humidifier • Heat 1...
  • Page 8 A member of the C/S Group of Companies Creating Products That Make Building Better Data Aire, Inc. reserves the right to make design changes for the purpose of product improvement or to withdraw any design without notice. dap4 Quickstart 09/2015...
