Status Loop (continued):

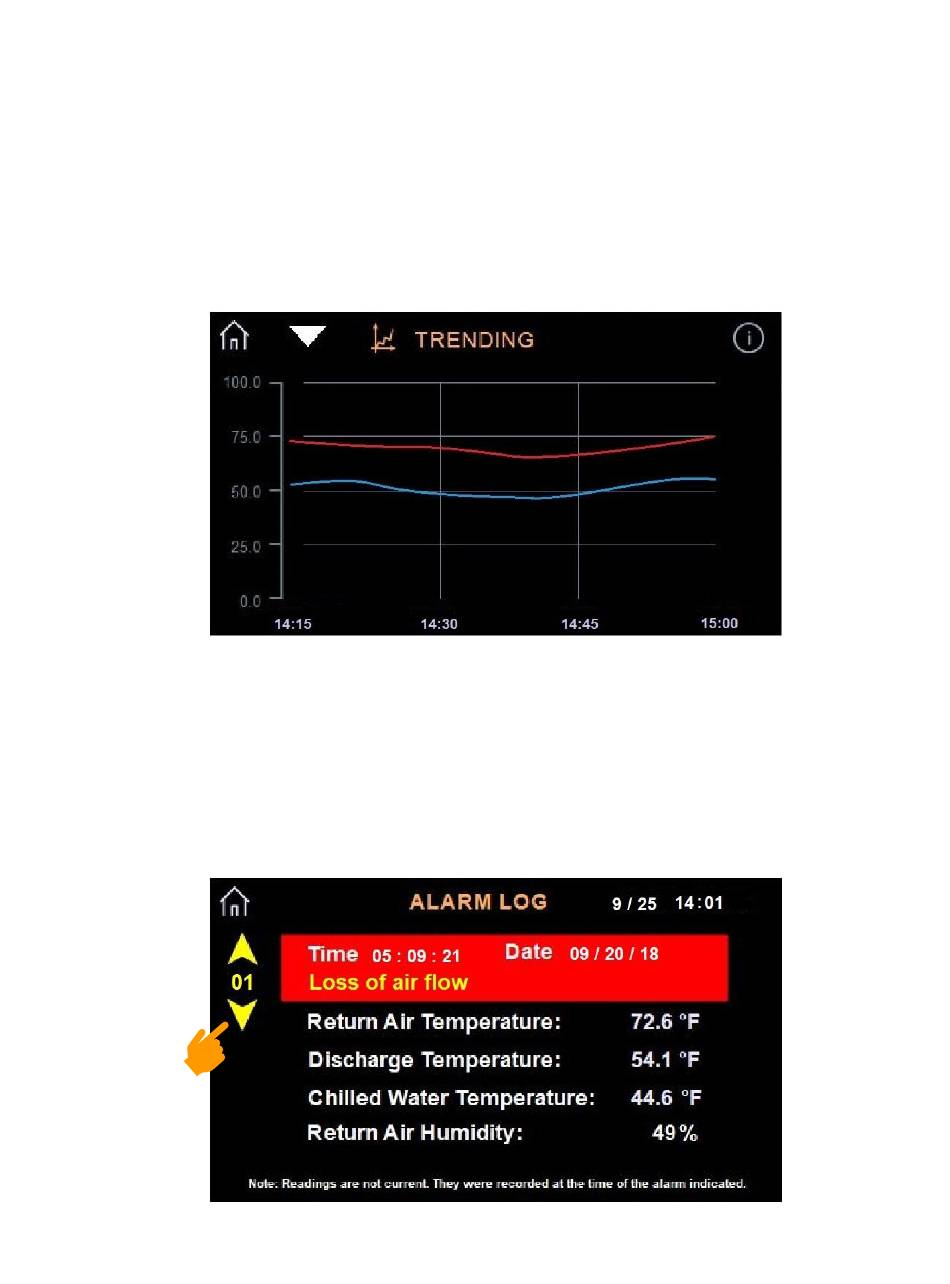

The next screen in the status loop is the Trending screen. It displays the historical
trends of the return air temperature and humidity. Additional trends of discharge air
temperature and chilled water temperature will also appear if installed. To display
the legend information, touch the information icon located at the top right corner.
The historical time frame screen can be scrolled forward or backwards by pressing
and dragging the screen.
Alarm Log Screen:
(Accesses by touching the Alarm icon on the main
status screen). The time and date of past alarms along with readings at the time of
the alarm can be viewed. Touch the Up or Down icon to see past alarm logs.
There will be a short delay as each log is loaded.
