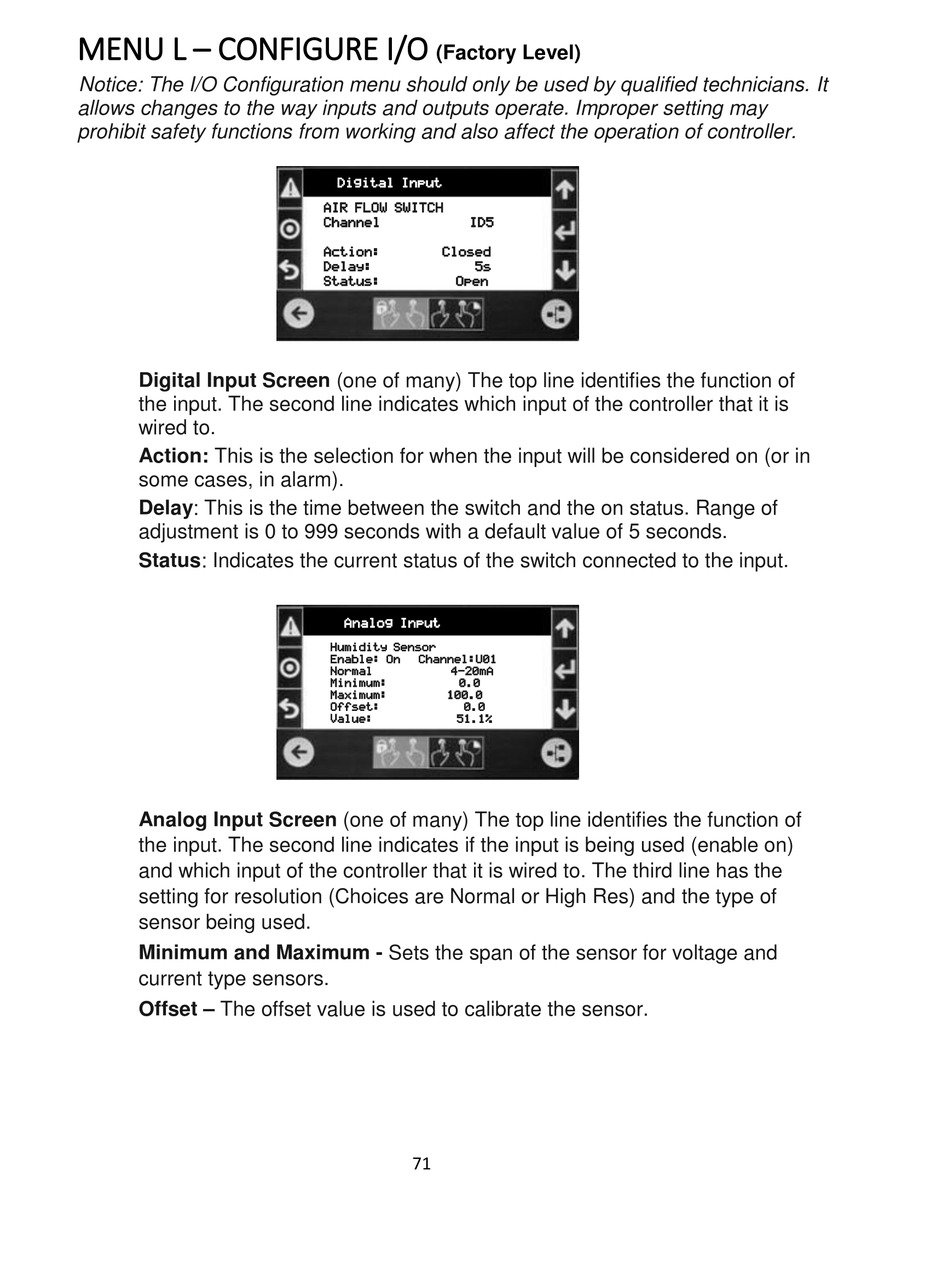

MENU L – CONFIGURE I/O
Notice: The I/O Configuration menu should only be used by qualified technicians. It
allows changes to the way inputs and outputs operate. Improper setting may
prohibit safety functions from working and also affect the operation of controller.
Digital Input Screen (one of many) The top line identifies the function of
the input. The second line indicates which input of the controller that it is
wired to.
Action: This is the selection for when the input will be considered on (or in
some cases, in alarm).
Delay: This is the time between the switch and the on status. Range of
adjustment is 0 to 999 seconds with a default value of 5 seconds.
Status: Indicates the current status of the switch connected to the input.
Analog Input Screen (one of many) The top line identifies the function of
the input. The second line indicates if the input is being used (enable on)
and which input of the controller that it is wired to. The third line has the
setting for resolution (Choices are Normal or High Res) and the type of
sensor being used.
Minimum and Maximum - Sets the span of the sensor for voltage and
current type sensors.
Offset – The offset value is used to calibrate the sensor.
(Factory Level)















71
