Status Loop (continued):

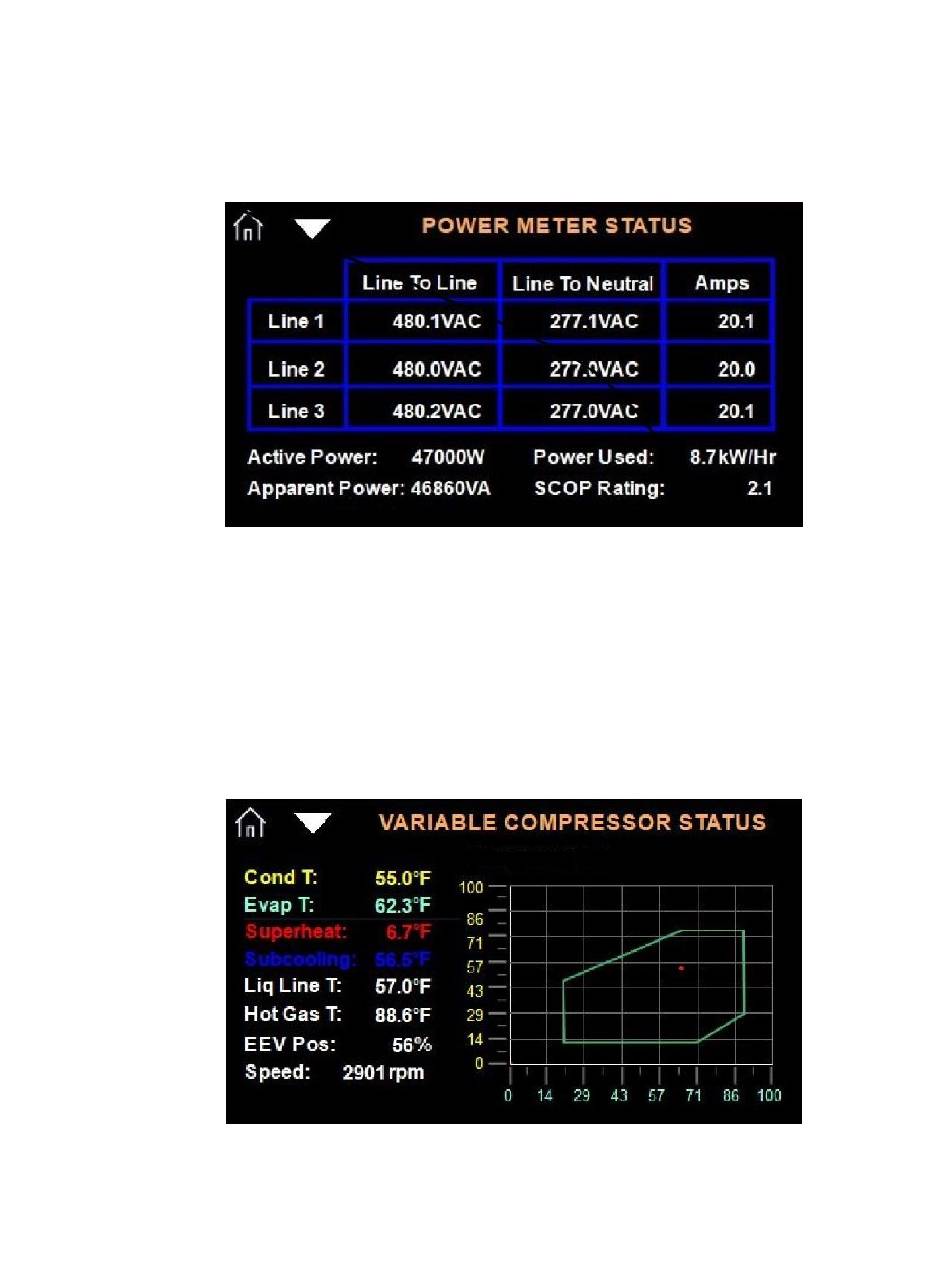

The next screen in the status loop is
screen only appears when an optional power meter is installed).
The next screen in the status loop is
this screen only appears when a variable compressor is installed). The operating
envelope is indicated by the green colored polygon. The compressor's current
status is indicated by a red dot within the envelope.
the Power Meter Status screen. (Note: this
the Variable Compressor Status screen. Note:
