Status Loop - Data Aire dap4 User Manual

dap4 Color Touch Display

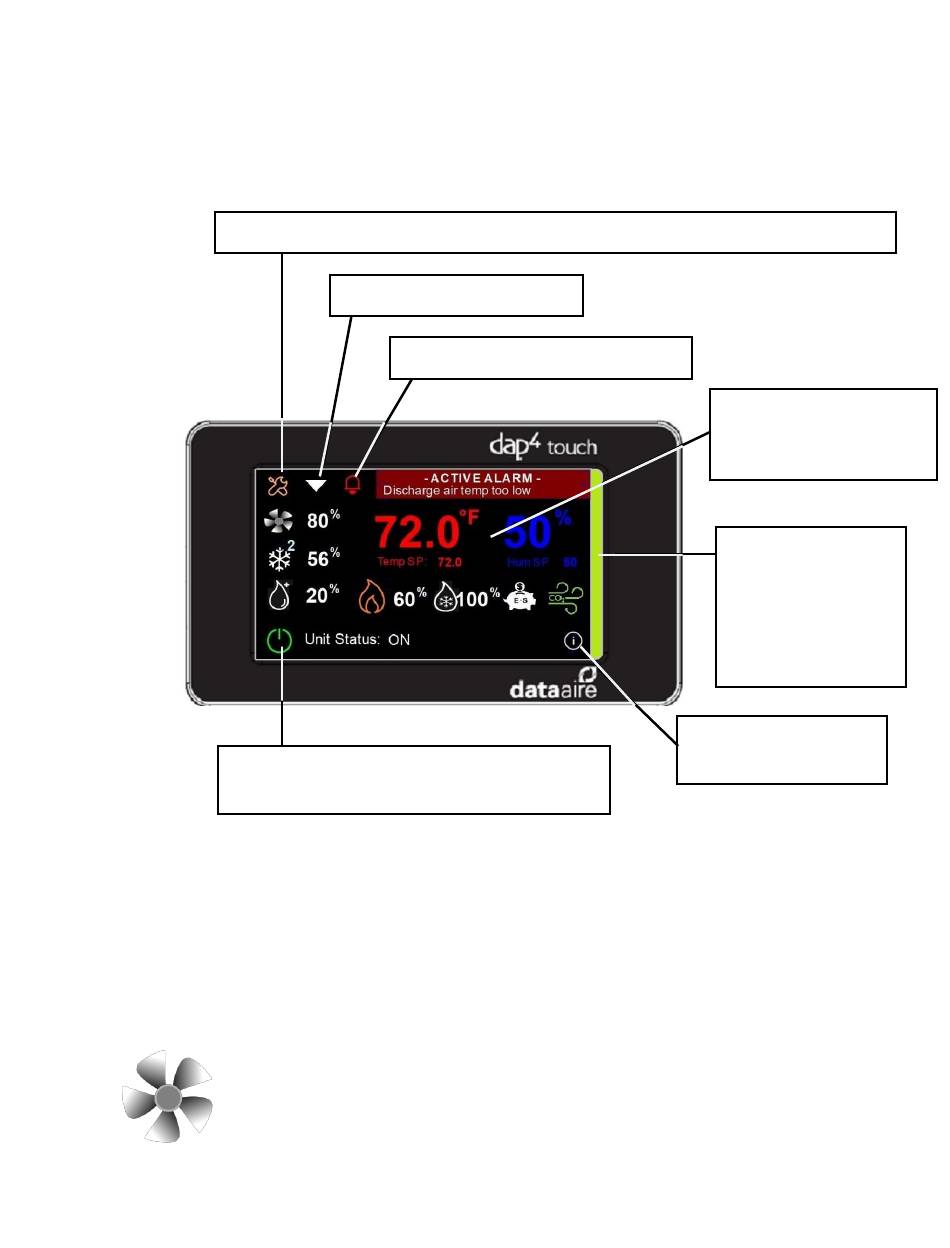

There are several touch sensitive areas on home screen of the display. Listed below
is how each area works when it is touched.
Access service menus shown later in this manual (requires holding 1 sec.)
"Key" turns Unit on or off.
Color red = unit is off, Green = unit is on.

Status Loop:

The first screen in this loop is
the unit. It contains icons that appear when a specific operation is running as
described below:
Fan On - If variable type, speed modulation is also shown.
Displays the next screen.
Displays the Alarm Log screen.
the Home screen, which displays the basic status of
7
Touch Temp/Hum
readings to display the
Set Points screen.
LED Unit Status
White = On
Blue = Cooling
Green = E. Saver
Red = Alarm
Displays the system
Information Screen.
