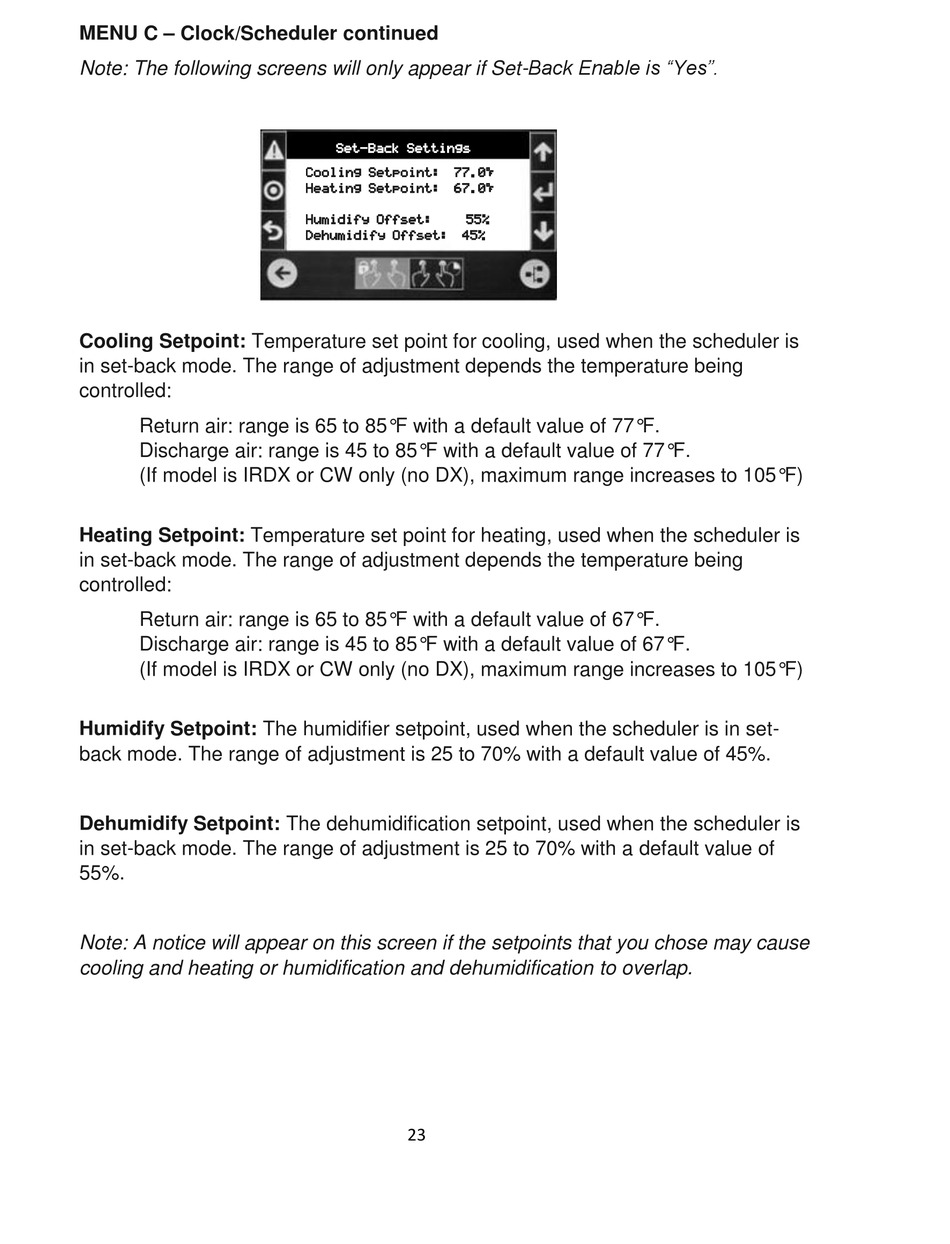

MENU C – Clock/Scheduler continued
Note: The following screens will only appear if Set-Back Enable is "Yes".
Cooling Setpoint: Temperature set point for cooling, used when the scheduler is
in set-back mode. The range of adjustment depends the temperature being
controlled:
Return air: range is 65 to 85°F with a default value of 77°F.
Discharge air: range is 45 to 85°F with a default value of 77°F.
(If model is IRDX or CW only (no DX), maximum range increases to 105°F)
Heating Setpoint: Temperature set point for heating, used when the scheduler is
in set-back mode. The range of adjustment depends the temperature being
controlled:
Return air: range is 65 to 85°F with a default value of 67°F.
Discharge air: range is 45 to 85°F with a default value of 67°F.
(If model is IRDX or CW only (no DX), maximum range increases to 105°F)
Humidify Setpoint: The humidifier setpoint, used when the scheduler is in set-
back mode. The range of adjustment is 25 to 70% with a default value of 45%.
Dehumidify Setpoint: The dehumidification setpoint, used when the scheduler is
in set-back mode. The range of adjustment is 25 to 70% with a default value of
55%.
Note: A notice will appear on this screen if the setpoints that you chose may cause
cooling and heating or humidification and dehumidification to overlap.






