Status Loop (continued):

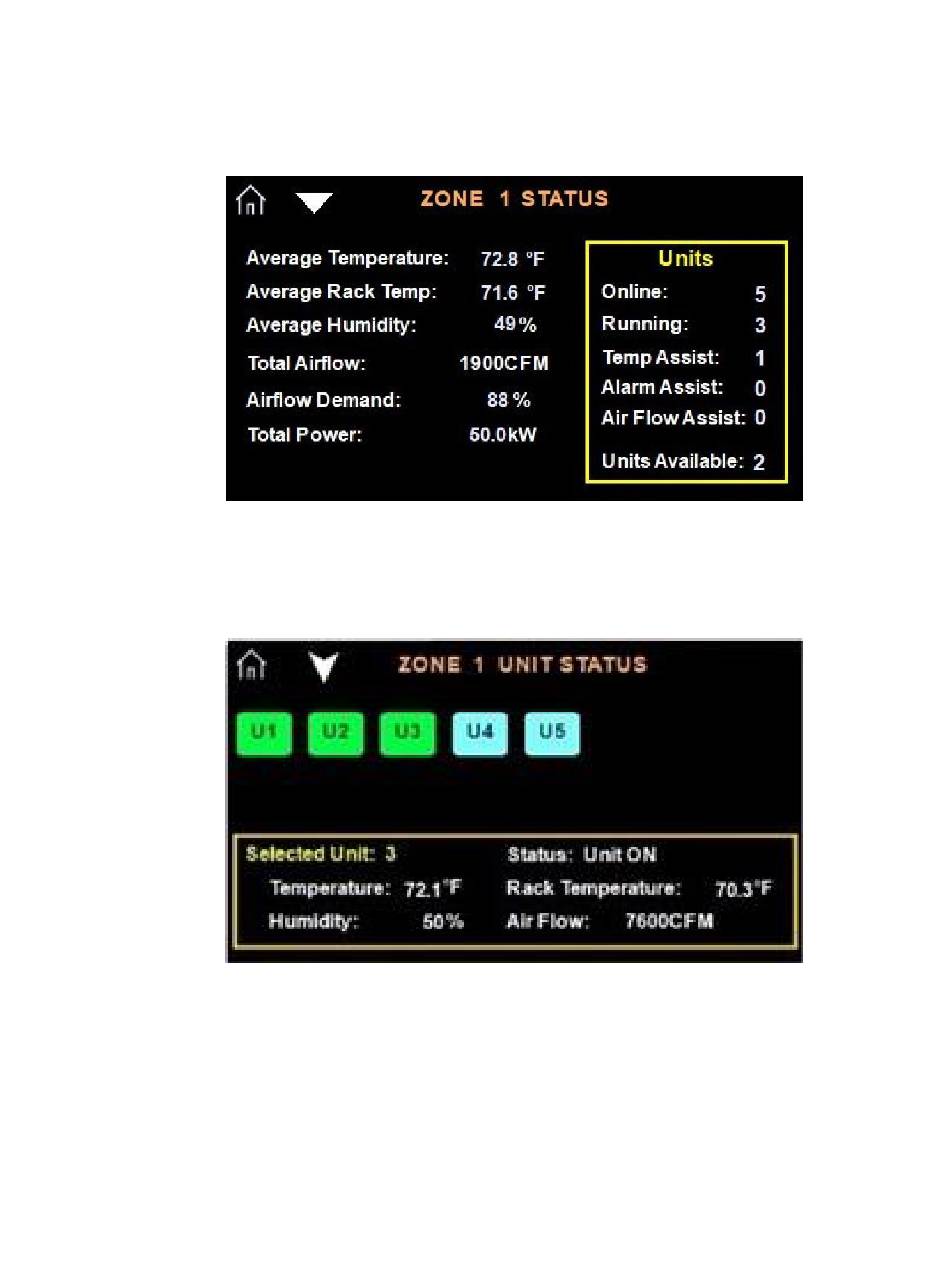

The next screen in the status loop is
status of the zone. (Note: this screen only appears on the Master control when the
Zone Master feature is enabled).
The next screen the Zone Units screen, which displays the status of each units in
the zone. (Note: this screen only appears on the Master control when the Zone
Master feature is enabled).
Touch the unit icon to see specific information such as Temperature, Humidity and
Airflow. General unit status is indicated by color:
Green = Unit On
Red = Unit in Alarm
the Zone Status screen, which displays the
Blue = Unit in Standby
Gray = Unit set not to participate
