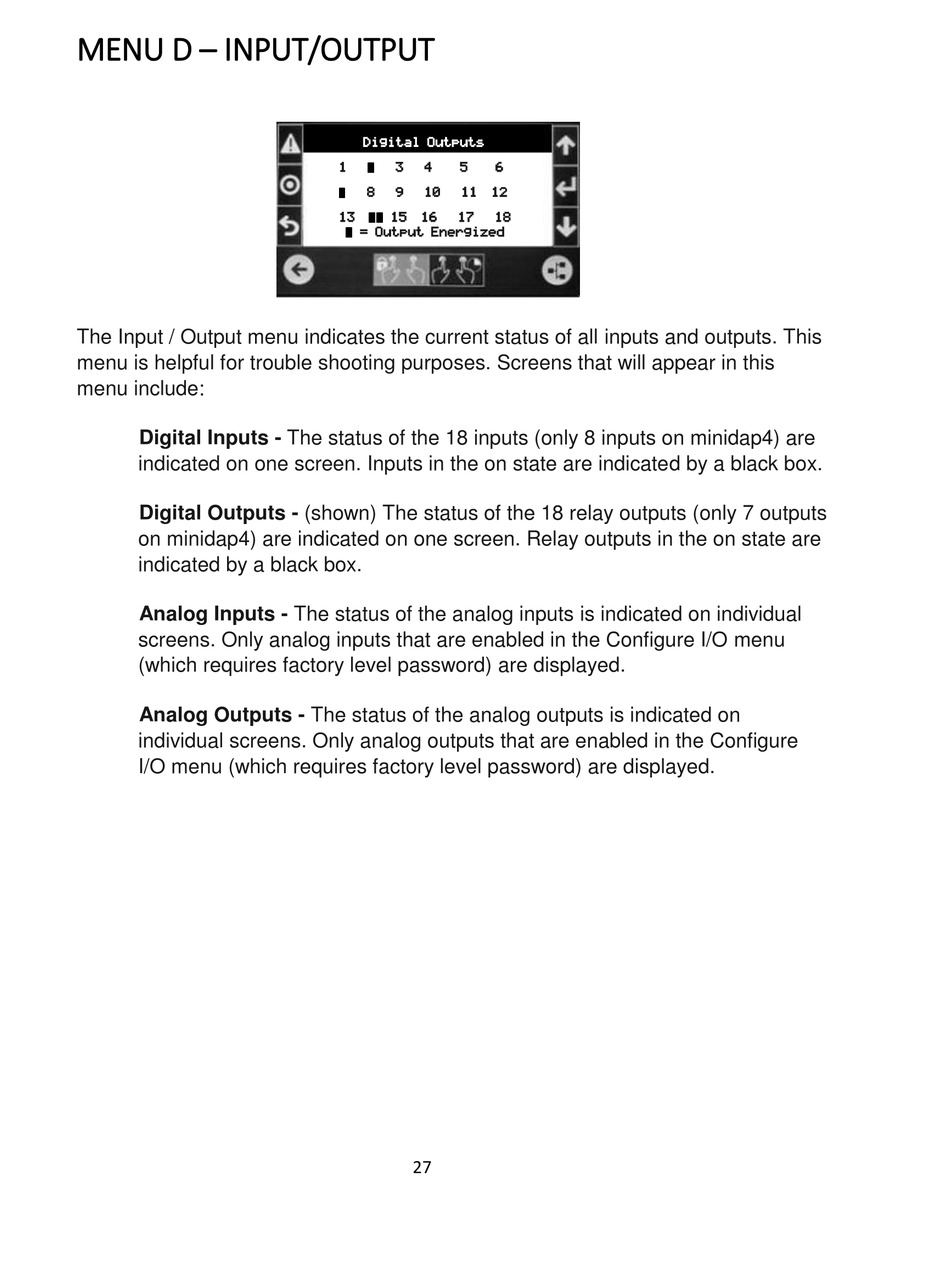

MENU D – INPUT/OUTPUT
The Input / Output menu indicates the current status of all inputs and outputs. This
menu is helpful for trouble shooting purposes. Screens that will appear in this
menu include:
Digital Inputs - The status of the 18 inputs (only 8 inputs on minidap4) are
indicated on one screen. Inputs in the on state are indicated by a black box.
Digital Outputs - (shown) The status of the 18 relay outputs (only 7 outputs
on minidap4) are indicated on one screen. Relay outputs in the on state are
indicated by a black box.
Analog Inputs - The status of the analog inputs is indicated on individual
screens. Only analog inputs that are enabled in the Configure I/O menu
(which requires factory level password) are displayed.
Analog Outputs - The status of the analog outputs is indicated on
individual screens. Only analog outputs that are enabled in the Configure
I/O menu (which requires factory level password) are displayed.

 
 
 
 
27
