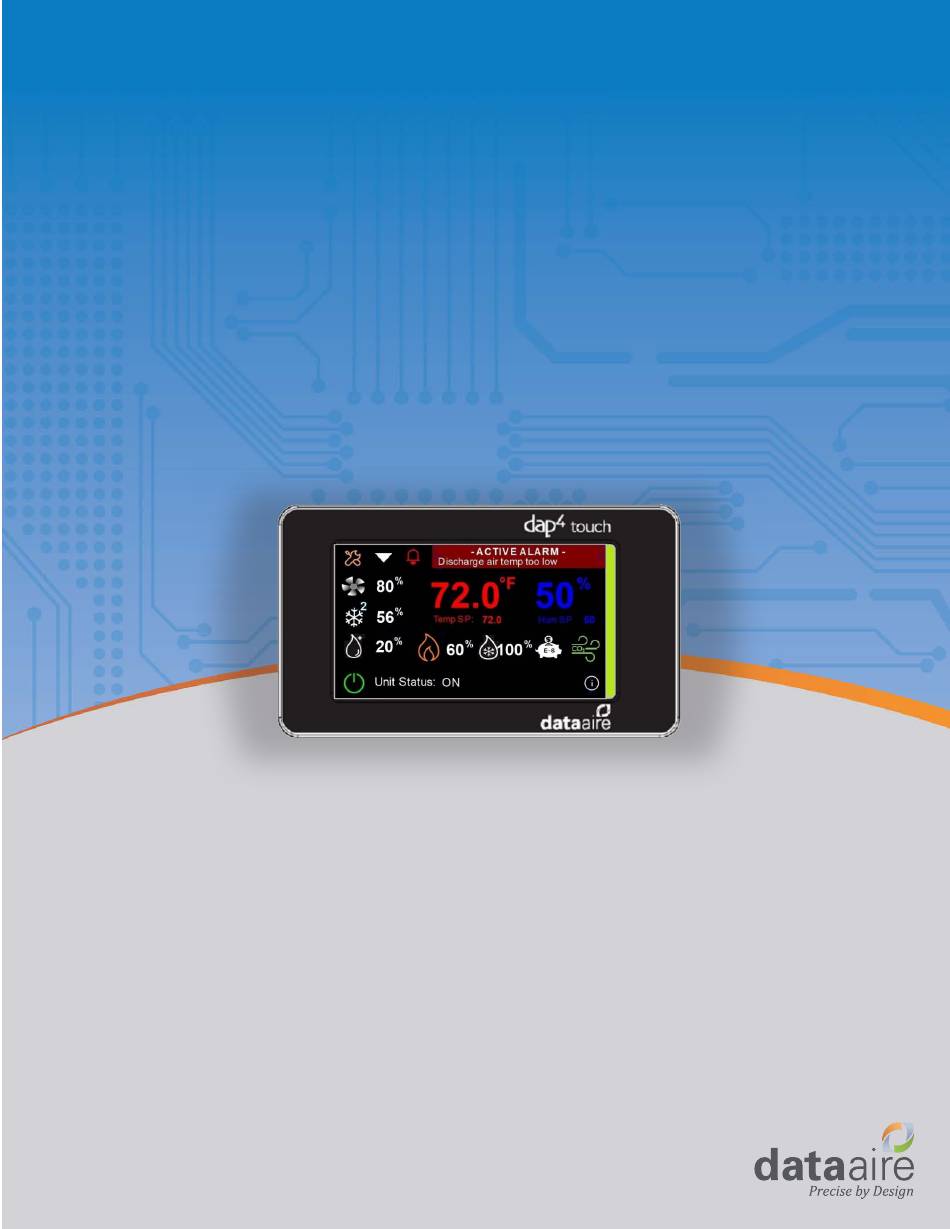

  • Page 1 User Manual Data Aire, Inc. 230 W. BlueRidge Avenue Orange, CA 92865 www.dataaire.com...

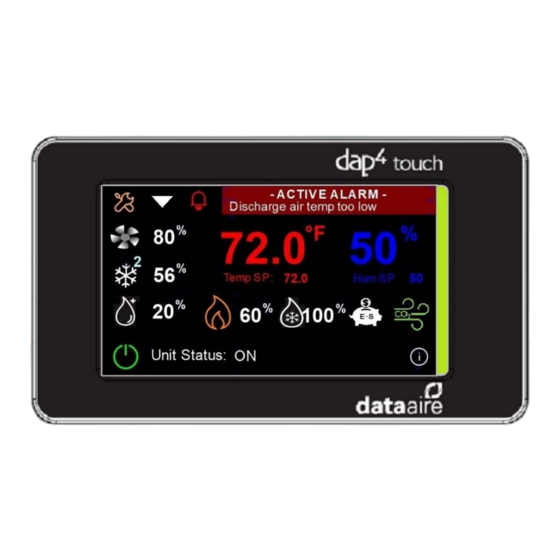

  • Page 2 1. Home Screen There are several touch sensitive icons on the home screen. Listed below is how each one works when it is touched. Go to monochrome display emulation mode to access set-up menus. Displays the next screen Displays the Alarm Log screen Pop-up Active Alarm message screen.
  • Page 3 3. Navigating through screens Note: If the touch display is too sensitive for the user’s finger, use a stylist such as pen or pencil. a) LCD Emulation and Programming Mode Press and hold the Tool icon on the Home screen and wait for the monochrome LCD emulation mode to load.
  • Page 4 c) View Optional Status Screen Press the down arrow to display the status of optional sensors (if any are installed). On any status screen, pressing the Home icon returns to Home screen and pressing the down arrow icon displays the next status screen. d) View Rack Temperatures or Variable Speed Compressor Status...
  • Page 5 e) Optional Zone Master Status If the unit is the master in a Zone Master network, the following screens will appear. All units in the network indicate their status by color: Green = Unit is On Blue = Unit is in Standby Red = Unit is in Alarm Gray = Unit is set to not to participate in the zone master control.
  • Page 6 h) Silence Audible Alarm Press Bell icon to silence the alarm buzzer and access the Alarm Log screen. View Alarm History Press the Up or Down icon to scroll thru past alarm logs. There will be a short delay as the next log is loaded.
  • Page 7 b) Using the Keypad Tap on the setpoint and a keypad will appear. Enter the desired setpoint then press Enter to save the setting and close the keypad.
  • Page 8 User Manual Data Aire, Inc. 230 W. BlueRidge Avenue Orange, CA 92865 www.dataaire.com 2018 Data Aire, Inc. | Precise by Design | ISO 9001 Certified | A member of Construction Specialties | Making Buildings Better ®...
