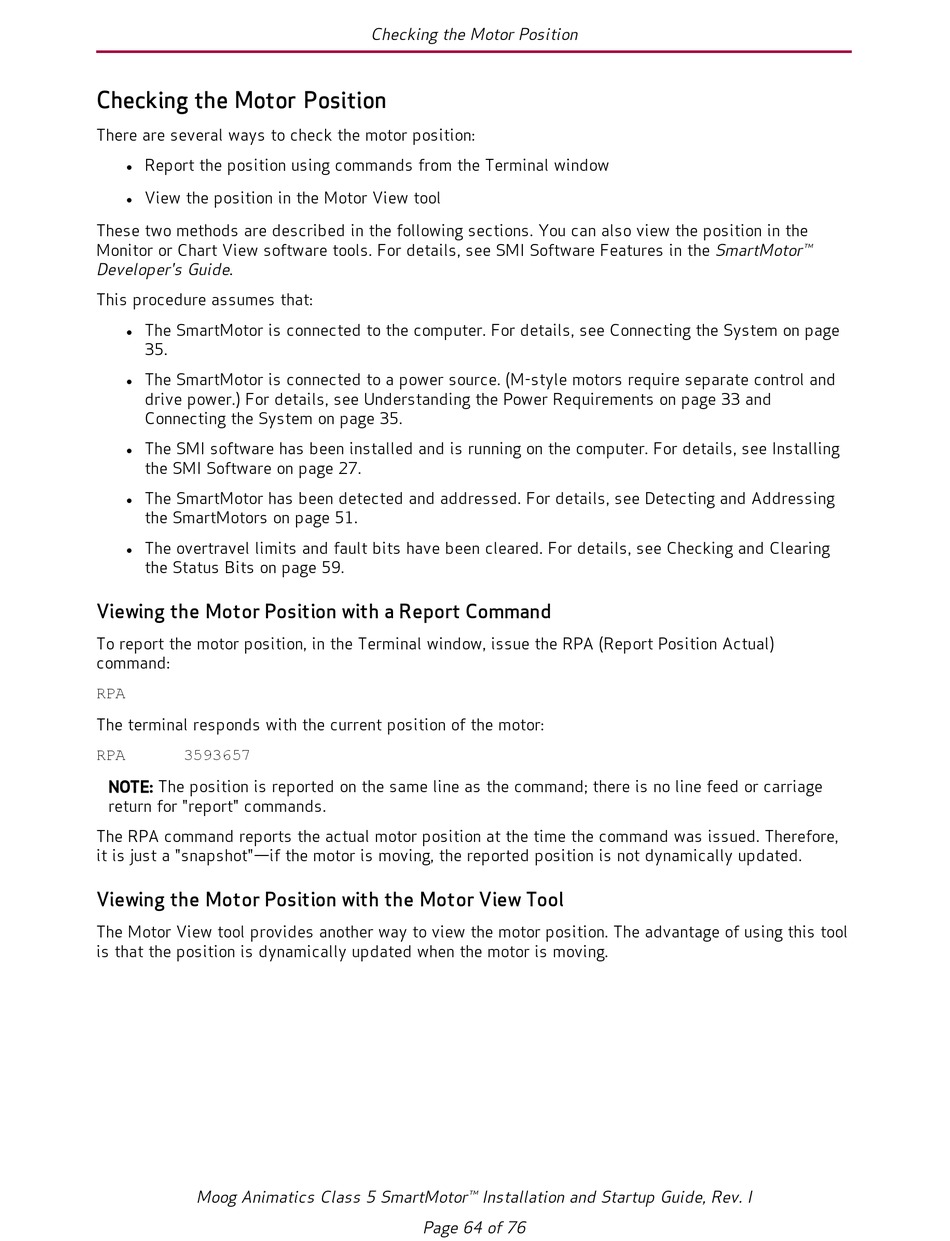

Checking the Motor Position

There are several ways to check the motor position:
Report the position using commands from the Terminal window
l
View the position in the Motor View tool
l
These two methods are described in the following sections. You can also view the position in the
Monitor or Chart View software tools. For details, see SMI Software Features in the SmartMotor™
Developer's Guide .
This procedure assumes that:
The SmartMotor is connected to the computer. For details, see Connecting the System on page
l
35.
The SmartMotor is connected to a power source. (M-style motors require separate control and
l
drive power.) For details, see Understanding the Power Requirements on page 33 and
Connecting the System on page 35.
The SMI software has been installed and is running on the computer. For details, see Installing
l
the SMI Software on page 27.
The SmartMotor has been detected and addressed. For details, see Detecting and Addressing
l
the SmartMotors on page 51.
The overtravel limits and fault bits have been cleared. For details, see Checking and Clearing
l
the Status Bits on page 59.

Viewing the Motor Position with a Report Command

To report the motor position, in the Terminal window, issue the RPA (Report Position Actual)
command:
RPA
The terminal responds with the current position of the motor:
RPA 3593657
NOTE: The position is reported on the same line as the command; there is no line feed or carriage
return for "report" commands.
The RPA command reports the actual motor position at the time the command was issued. Therefore,
it is just a "snapshot"—if the motor is moving, the reported position is not dynamically updated.

Viewing the Motor Position with the Motor View Tool

The Motor View tool provides another way to view the motor position. The advantage of using this tool
is that the position is dynamically updated when the motor is moving.
