SmartMotor Introduction

The Moog Animatics SmartMotor™ servo is an industrial servo motor with motion controller integrated
into a compact package. Its design is based on the following objectives:
1. Reduce development time
2. Lower machine-production cost
3. Simplify the machine (design, build and support)
NOTE: Information in this guide applies to both the cast and extruded motors.
Moog Animatics Class 5 SmartMotor™ Installation and Startup Guide, Rev. I

SmartMotor Introduction

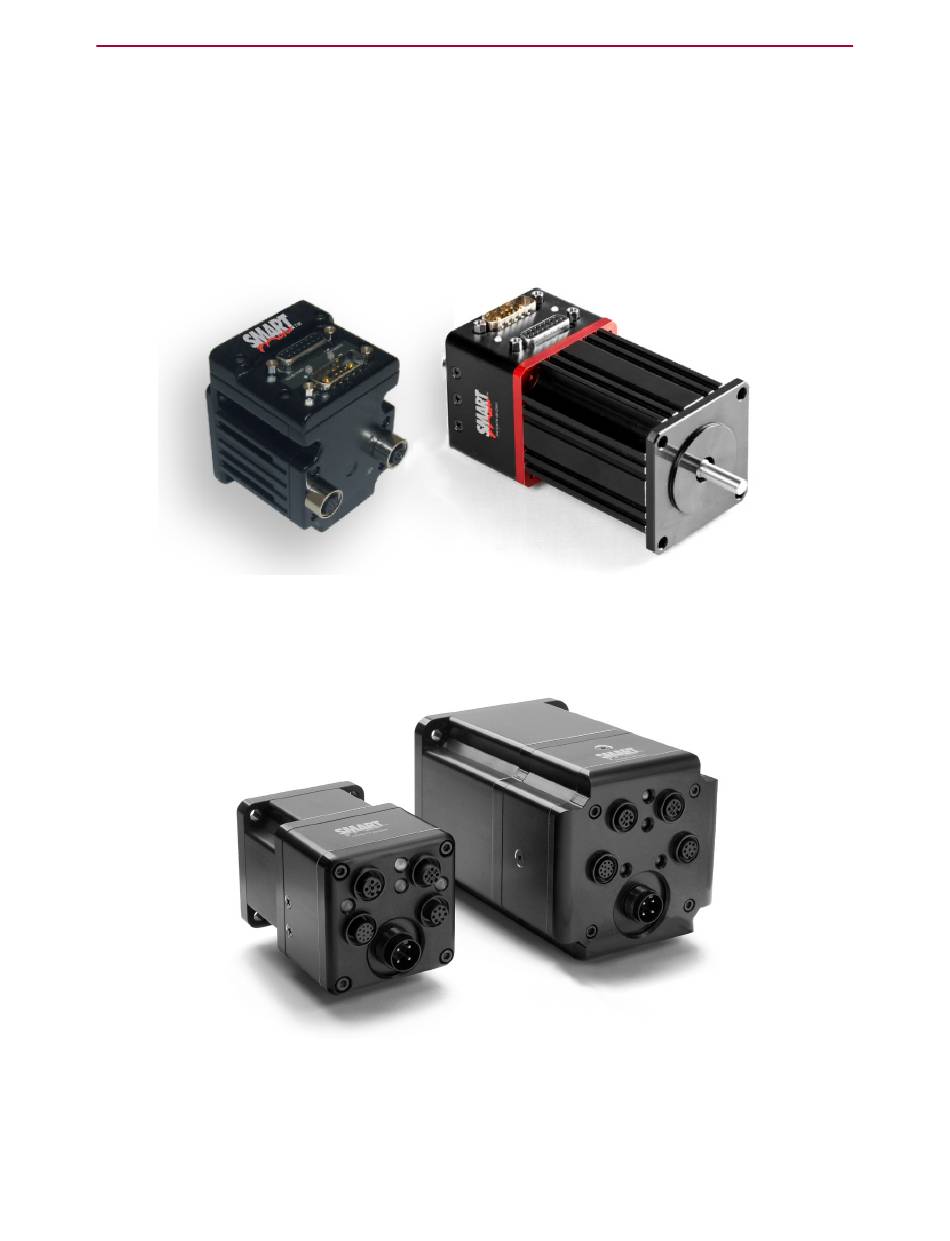

D-Style Cast and Extruded SmartMotors
M-Style SmartMotors
