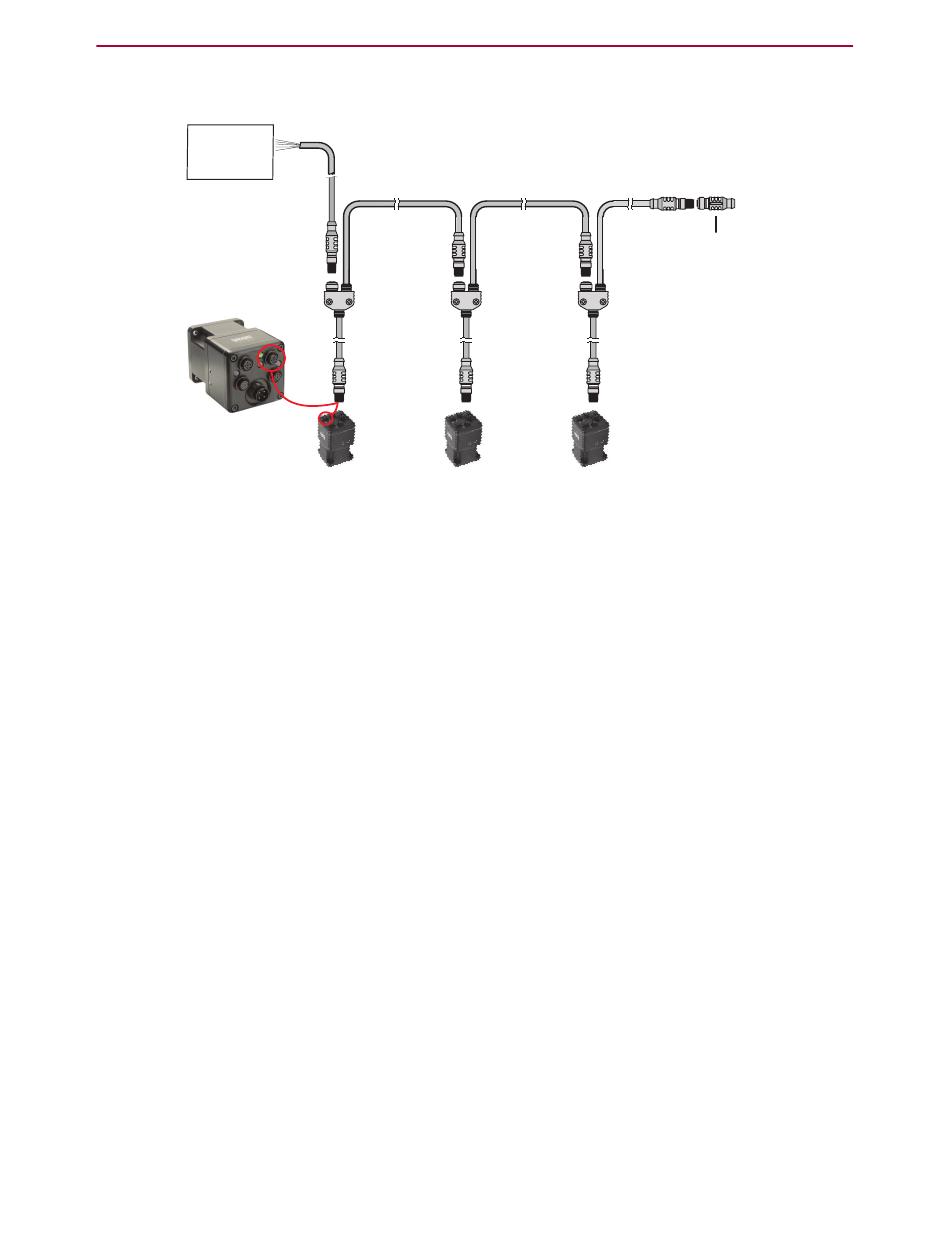

M-Style Motors: CANopen or DeviceNet Multidrop
PC, PLC,
etc.
(see NOTE)
NOTE: The bus requires a termination resistor at each end. If the master device (PC, PLC, etc.) does
not include one, then an external termination resistor must be supplied.
This communications-connection method would be combined with a power-connection method. For
example, see M-Style Motors: Power, RS-485 Com and CAN Multidrop on page 47.
Moog Animatics Class 5 SmartMotor™ Installation and Startup Guide, Rev. I
M-Style Motors: CANopen or DeviceNet Multidrop
CBLIP-CAN-FL (5 Pin)
CBLIP-CAN-Y1-xM
Page 49 of 76
CBLIP-TRF120
