MOOG ANIMATICS SMARTMOTOR COMBITRONIC Installation And Startup page 54

Using the Find Motors Button

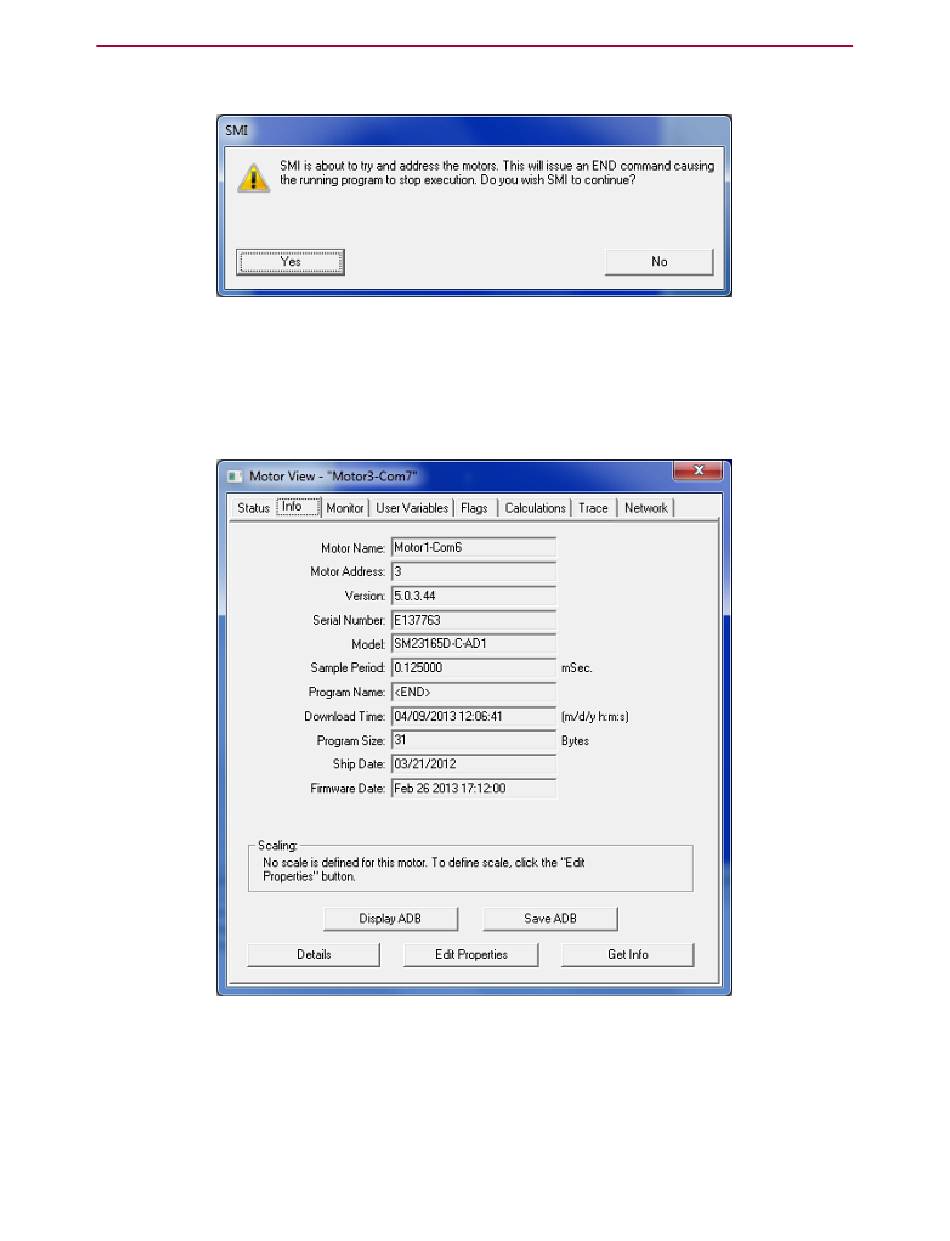

To address the motors, click Yes when you see the following prompt.
Address the Motors Prompt
A progress bar displays a "Getting motor information" message while the SMI software addresses the
motors. During this process, the SMI software is collecting the following information on each motor.
The information is the same as that shown in the Motor View window, which can be accessed by
selecting the Tools > Motor View > Info tab:
Motor View Information
Moog Animatics Class 5 SmartMotor™ Installation and Startup Guide, Rev. I
Page 54 of 76
